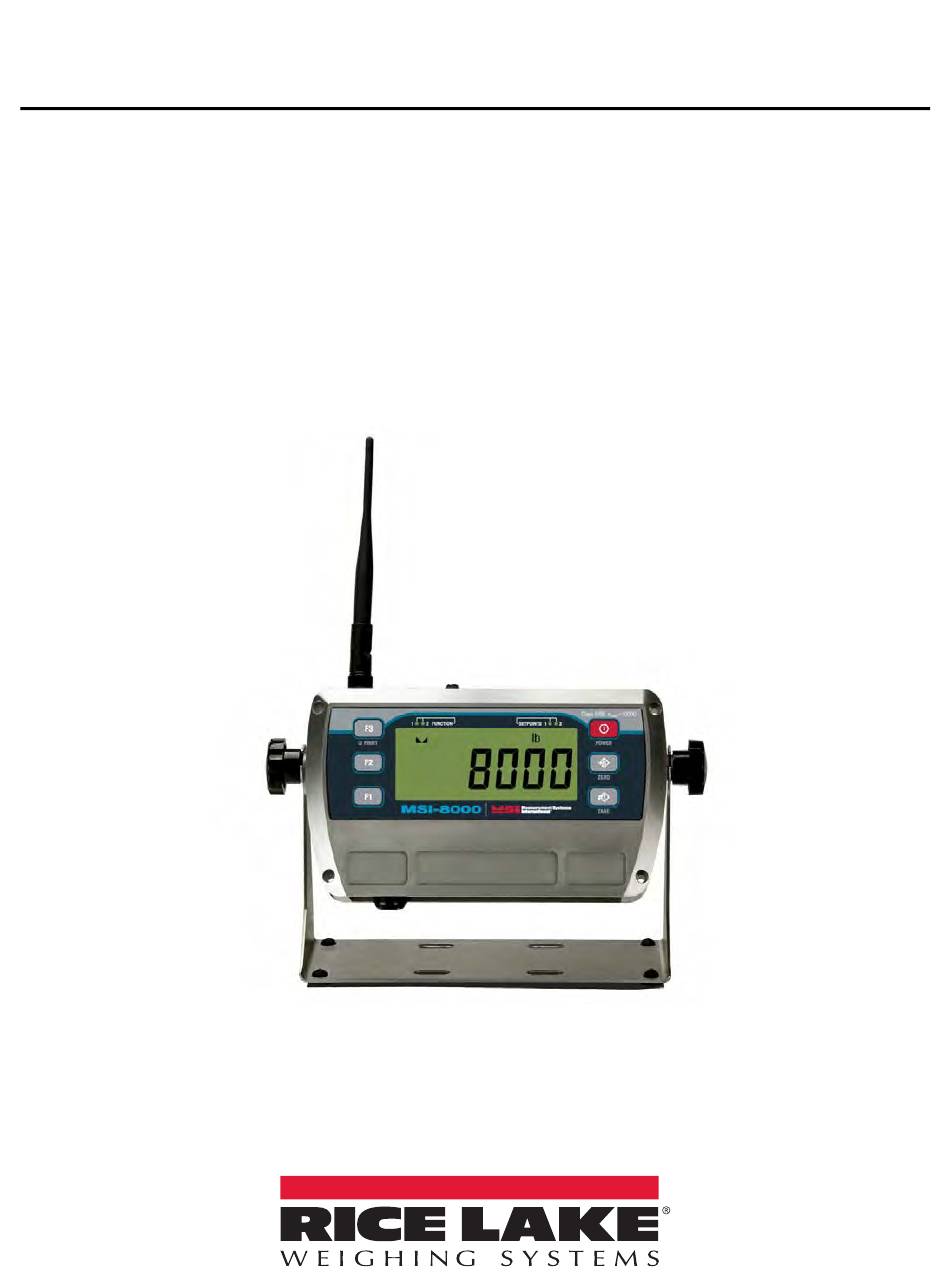

- Page 1 MSI-8000HD RF Indicator Technical Manual May 15, 2018 PN 163570 Rev B...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
-
Page 3: Table Of Contents
Standard Settings................20 Technical training seminars are available through Rice Lake Weighing Systems. - Page 4 8.0 Specifications ............... . . 40 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost.
-
Page 5: Introduction
Introduction The MSI-8000HD RF Indicator is a combination of the sound and proven mechanical design of the industry standard, with today’s most advanced electronics. It provides a superb feature set unmatched by any scale in its class or price range. The MSI-8000HD is versatile, reliable, accurate and easy to operate. -
Page 6: Safety
For guidelines on the safe rigging and loading of overhead scales and dynamometers, read the MSI Crane Scale Safety and Periodic Maintenance Manual, PN 153105. Keep hands, feet and loose clothing away from moving parts. There are no user serviceable parts within the MSI-8000HD. Any repairs are to be performed by qualified service personnel only. Visit our website www.RiceLake.com... -
Page 7: Front Panel Description
Introduction Front Panel Description The MSI-8000HD front panel, keys and annunciators, are described in Table 1-1. Class III/IIIL n =10000 FUNCTION SETPOINTS PRINT POWER ZERO MSI-8000 Measurement Systems TARE International Figure 1-1. MSI-8000HD Front Panel= Item No. Description Function 1 Key –... -
Page 8: System Configurations
MSI-8000HD RF Indicator System Configurations The MSI-8000HD RF Indicator models and part numbers are listed below. Part No Description Notes Non RF Versions 158427 MSI-8000H, 85-265VAC, 2 A/D Inputs Common non-RF version 158428 MSI-8000HD, INT Lithium Ion Battery Powered, 2 A/D Inputs Tote handle included. -
Page 9: Operation
Operation Operation The following sections describe the basic operation of the MSI-8000HD RF Indicator. Power Power the indicator On/Off by pressing POWER Zero The zero key sets the zero reading of the scale to remove small deviations in zero when the unit is unloaded. See Section 2.3... -
Page 10: Installation
Installation Unpacking When unpacking the MSI-8000HD, ensure that all parts are accounted for and check for any visible damage. If any parts were damaged in shipment, notify Rice Lake Weighing Systems and the shipper immediately. If the MSI-8000HD must be returned, it must be properly packed with sufficient packing materials. When possible, retain the original carton when shipping the unit back. -
Page 11: Wiring
Comm Port Figure 3-2. Inside of Enclosure Channel 2 Channel 1 Two Channel Unit Channel 2 Channel 1 Channel 4 Channel 3 Four Channel Unit Figure 3-3. Wiring Diagram © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 12: Mounting The Msi-8000Hd
Mounting the MSI-8000HD The MSI-8000HD can be mounted directly to a wall or panel using the four holes in the corners of the unit or by using an optional tilt stand, can be mounted to a wall or counter top. -
Page 13: Setup
Print – outputs a configured text string to the RS-232 port on the base of the Dyna-Link. See Section 4.2.8. tArE Tare – not used, MSI-8000HD has a dedicated tare key Scan Scan – displays connected scan channels in order. Add Loads – changes the summing mode Add.Ld... -
Page 14: Function Keys
, F1 and F2. • Function key setup is independent of the connected scale function keys. • are standard on the MSI-8000HD and do not need to be programmed. PRINT TARE • If a function key does not work, the connected Scale/Dyna-Link may not be set up to support the key. -
Page 15: Test
• The filter setting is turned off while in peak hold mode to ensure the fastest acquisition rate. Example The Peak Hold function is useful in Dynamic and Fall tests. Common tests include Overall Breaking Strain (OB€), Breaking Force, and Cycled Breaking Strain. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 16: 2Unit/5Unit
Print The Print function is set to F3 on the MSI-8000HD, so there is no need to program F1 or F2 to Print. Then pushing F1 or F2 on the scale will cause the Communications Port on the Remote to output the selected data string. -
Page 17: Setpoints
1. Setpoints 3 through 8 do not trigger an indication on the MSI-8000HD, but can be set to control relays and sent to other peripheral devices either through RS-232 or wireless communication. These additional setpoints can then be used to control relays or trigger indications in the peripheral devices. -
Page 18: Output
MSI-8000HD RF Indicator 8. Press to scroll the numbers and to enter each digit. 9. When the correct value is displayed, press . The next setup menu item is displays. 10. Press to exit setup and store the settings. ZERO... -
Page 19: Filter
The Filter settings are used to stabilize the weight in an unstable condition. Increasing the filter will improve the stability, however settling times will be longer. The MSI-8000HD employs algorithms that speed up large weight changes while still controlling vibration even with high filter settings. -
Page 20: Unit
MSI-8000HD RF Indicator Unit 1. Press simultaneously. displays. Func1 POWER 2. Press to scroll to Unit 3. Press displays with lb or kg in the lower right of the display area. Unit 4. Press to toggle between lb and kg. -
Page 21: Calibration
Calibration Calibration The MSI-8000HD is calibrated using standard precision test weights. It is required that the weight used is at least 10% of full capacity in order to achieve rated accuracy. Example: Use at least a 500 kg test weight to calibrate a 5000 kg capacity unit. The MSI-8000HD RF Indicator supports load cell linearization with up to four span points that can be calibrated in any order. -
Page 22: Routine Calibration
MSI-8000HD RF Indicator 3. Press . The default units are displayed. 4. Press to scroll through the available units. 5. With desired unit displayed, press to select. is displayed. 6. Press . The default capacity is displayed. 7. To enter a different capacity, press 8. -
Page 23: C-Cal Calibration
When adequate test weights are not available, the scale can be calibrated using a cal number calibration which is referred to as C-Cal. To use C-Cal, a factory generated C-Cal number must be known. Rice Lake supplies replacement load cells with the C- Cal value stamped on the serial number label. -
Page 24: Setup
Another use of the One Unit standard is to allow the scale to be calibrated in units other than lb or kg, since conversions are elimi- 1 Unit nated. Table 5-1. Standard Settings Parameter Contact Rice Lake Weighing Systems for more information on the standards settings. Visit our website www.RiceLake.com... -
Page 25: Reset The Load Cell Calibration
5. Proceed with the Initial Calibration, Section 5.2. IMPORTANT Pressing resets all indicator settings to the original factory settings. See Section 7.6 on page 39. Press the to cancel reset and return to the previous menu. Note POWER © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 26: Communications Setup
The MSI-8000HD uses three numbers to establish a piconet. A piconet is a network that is created using a wireless Bluetooth connection. Table 6-1 lists out the three elements used in setting up a piconet. The MSI-8000HD ID is recommended to be in the range of 20-30. -
Page 27: Printer Setup
The RS-232 communications port is capable of outputting load data. All of the RF linked weight device weight modes are available in user formatted form. The control mode program is what controls the MSI-8000HD to print and is described in Section 6.2.1. -
Page 28: Standard Print Strings
Combinations of the standard print strings can be entered in the string number entry screen. Example: To get a Net, Gross, Tare printout with a space between records, enter 2349. The ScaleCore Connect application can also be used for custom output strings, it can be downloaded from the Rice Lake website. -
Page 29: Rf Setup
Table 6-8. RF Setup Parameters Use the following steps to set up the RF menu parameters. 1. Press at the same time, is displayed. Print PRINT 2. Press to scroll to © Rice Lake Weighing Systems ● All Rights Reserved... - Page 30 Rice Lake Weighing Systems recommends at least a four digit for the Network ID, to ensure there are no conflicts Note with any other 802.15.4 networks 15.
-
Page 31: Ad Inputs
26. Press to exit to the Communication menu. ZERO AD Inputs To set the MSI-8000HD RF Indicator up as a Remote display, please see the MSI-8000HD Remote Display manual, available at www.ricelake.com 6.4.1 Set the Total Number of Load Cells 1. -
Page 32: Zero And Tare In Multiple Load Cell Systems
RS-232 device. Connector: M12 industrial IP67 rated. An adapter cable (PN 150964) is required to connect the MSI-8000HD RF Indicator to a computer. This adapter cable converts the 8000 connector to a standard D9 serial connector. The 503489 cable can be converted to DTE by using a Null Modem adapter. - Page 33 Computer DCE 9-Pin Female ‘D’ Solder Cup View Comm 2 for 9-Pin Male ‘D’ Terminal DTE Solder Cup View 9-Pin Male ‘D’ Solder Cup View Figure 6-5. Connection with Y Adapter © Rice Lake Weighing Systems ● All Rights Reserved...
-
Page 34: Relays
• AC/DC SSR 400Vpk, 0.5A: 14628 AQZ404. 0.5A Fuse 144583 (Use limited to 250 VRMS due to connector and Cordset limitations). Requires a minor modification on the Relay board and can only be ordered by contacting Rice Lake Weighing Sys- tems. -
Page 35: Extended Relay Kit - Optional
FCC Statement Contains FCC ID: MCQ-PS2CTH The MSI-8000HD complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operation. -
Page 36: Antenna Options
MSI-8000HD RF Indicator 6.10 Antenna Options To meet FCC licensing rules, use only antennas supplied or recommended by Rice Lake Weighing Systems. Note Antenna placement is critical to problem-free use of the system. • Ensure a relatively clear transmission path exists between the devices to be connected. Radio signals travel primarily by line of sight (LOS), obstructions between stations may degrade the system performance. -
Page 37: Standard Antenna
Lake Weighing Systems for details. 6.10.5 Corner Reflector Antenna Corner reflector antennas are often the best choice for a wall mounted antenna. Rice Lake Weighing Systems offers a 14 dBi and a 9 dBi corner reflector. 14 dBi Corner Reflector 9 dBi Corner Reflector 6.10.6 Patch Antenna... -
Page 38: Direct Download Into Excel Spreadsheet
Note Section 5.8 of the User’s Manual and the SCCMP programming guide for details. The SCCMP Program is included on the CD ROM that is included with the MSI-8000HD when purchased from MSI/ RLWS, or can be downloaded at msiscales.com. -
Page 39: Troubleshooting And Maintenance
System not stable ment . It is also possible to increase the motion window. Contact MSI if there is a problem getting the MSI-8000HD to zero, tare, or total due to stability issues Set point is enabled and the trigger point has... -
Page 40: Error Codes
Power up will be interrupted when the lift counter exceeds 16383 lifts or the overload counter exceeds 1023 overloads. Inspect the load train, then push any key to continue operation. This feature is only available on MSI-8000HD RF Indicator Software release 2.00 and above. Service counters are available on the Scale/Dyna-Link front panel test function. -
Page 41: Mechanical Dimensions
Troubleshooting and Maintenance Mechanical Dimensions Figure 7-1. Dimensions – MSI-8000HD 9.50 8.02 6.16 9.13 3.25 11.06 Figure 7-2. Dimensions – MSI-8000HD with Optional Tilt Stand © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 42: Firmware Update Procedure
The latest firmware code is available from the Rice Lake Weighing Systems service department and can be emailed on request. The current firmware version on the MSI-8000HD is displayed it is powered on. Firmware updates do not require a recalibration of the connected scale. -
Page 43: Reset The Indicator
3. An initial calibration will need to be performed on the current load cell. See Section 5.2. Pressing will reset only the current load cell calibration settings. See Section 5.4 on page 21. IMPORTANT Press the to cancel reset and return to the previous menu. Note POWER © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 44: Specifications
Prolongs battery life (optional) by turning off the power after 15, 30, 45 or 60 minutes (operator determined) if there is no weight activity. Calibration: The calibration parameters are not stored in the MSI-8000HD. It can be used to calibrate an RF connected scale. Service Counters... - Page 46 Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319...
