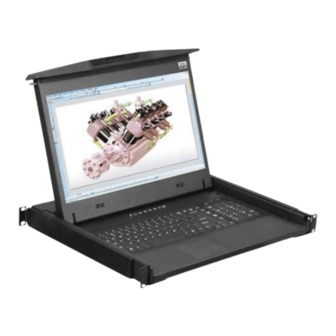

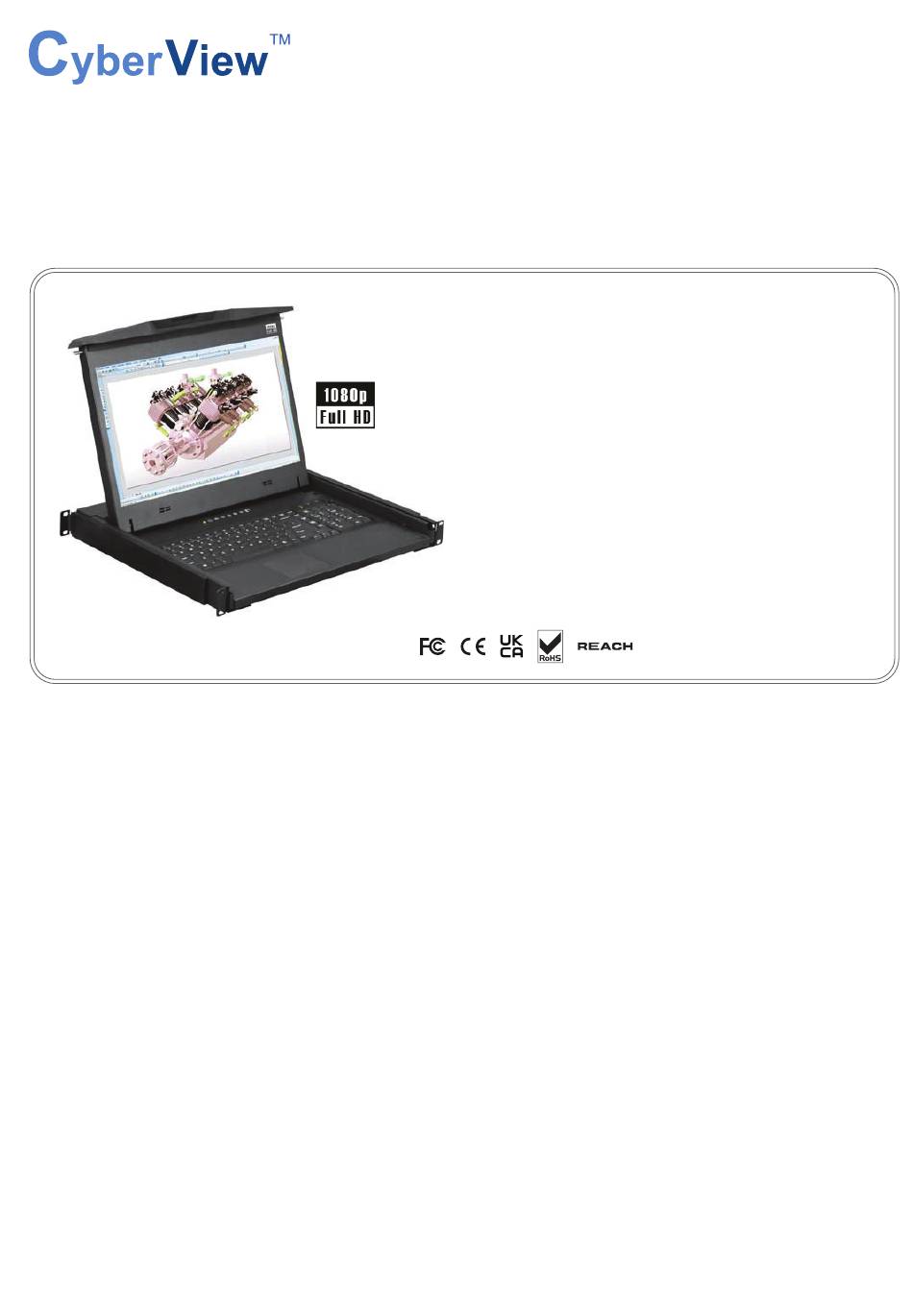

- Page 1 KVM switch and rackmount screen technology User Manual 17″ FHD LCD F1417 1U Ultra short depth LCD Console Drawer Ultra short depth 400mm / 15.7″ Options : - SDI - DVI-D / DP - DC power Designed and manufactured by Austin Hughes UM-CV-751-F1417-Q423V1 www.austin-hughes.com...
- Page 2 Legal Information First English printing, October 2023 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > F1417 Package Content Structure Diagram & Dimension Installation Connection < Part. 2 > Specifi cations / OSD Product Specifi cations Keyboard / Mouse Specifi cations On-screen Display Operation ( OSD ) P.11 < Part. 3 > Options 3G / HD / SD-SDI Broadcast-grade input P.13... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
- Page 5 Intentionally Left Blank UM-CV-751-F1417-Q423V1 www.austin-hughes.com...
-
Page 6: Package Content
< Part 1 > < 1.1 > Package Content - CX-6B 6ft HDMI console cable X 1 ( Alternative : CB-6A 6ft VGA console cable ) - 2.5A Power adapter & Power cord X 1 - M6 screw, cage nut & cup washer X 8 <... - Page 7 < 1.2 > Dimension F1417 Front View Rear View HDMI +12 VDC Power VGA UNIT : mm Side View 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 441.6 x 400 x 44 mm 590 x 617 x 120 mm...
-
Page 8: Installation
< 1.3 > Installation - Installation Slides Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■... - Page 9 < 1.3 > Installation - How to use the drawer F1417 ■ Press the handle button and gently slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. After use the drawer Basically, user can push in the drawer back to park position by releasing the left &...
- Page 10 < 1.4 > Connection to USB Server via CX-6B cable POWER LCD Console Drawer HDMI +12 VDC CX-6B HDMI console cable USB server HDMI < 1.4 > Connection to external KVM via CX-6B cable POWER LCD Console Drawer HDMI +12 VDC CX-6B HDMI console cable Video...
- Page 11 < 1.4 > Connection to USB Server via CB-6A cable F1417 LCD Console Drawer POWER HDMI +12 VDC CB-6A VGA console cable USB server < 1.4 > Connection to external KVM via CB-6A cable LCD Console Drawer POWER HDMI +12 VDC CB-6A VGA console cable VGA console KVM...
-
Page 12: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations F1417 Panel Native Resolution 1920 x 1080 Panel Size ( diagonal ) 17.3" Brightness ( cd/m² ) Contrast Ratio ( typ. ) 600:1 Colors 16.7 M, 8-bit Viewing Angle ( L/R/U/D ) 85/85/85/85 Response Time ( ms ) Dot pitch ( mm ) - Page 13 F1417 Physical F1417 Specifi cation Product ( W x D x H ) 441.6 x 400 x 44 mm 17.4 x 15.7 x 1.73 inch Packing ( W x D x H ) 590 x 617 x 120 mm 23.2 x 24.3 x 4.7 inch Net Weight 9.8 kg / 21.6 lb Gross Weight...
-
Page 14: Keyboard / Mouse Specifi Cations
< 2.2 > Standard Keyboard / Mouse Specifi cations G keyboard integrated with touchpad G keyboard integrated with trackball Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS Supporting layouts America United States... - Page 15 < 2.2 > SUN Keyboard / Mouse Options F1417 S keyboard integrated with touchpad S keyboard integrated with trackball Ca ps Scro ll Comp ose Ca ps Scro ll Comp ose S keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■...
-
Page 16: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital &... - Page 17 On-screen Display Operation ( OSD ) F1417 Color Color temperature : User / Warm / Cool / 5400k mode and Red / Green / Blue color balance Sharpness : Adjust the image from weak to sharp : Adjust the screen hue value Saturation : Adjust the saturation of the image color Dynamic...
- Page 18 < Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input...
-
Page 19: Part. 3 > Options
< 3.2 > Options : F1417 Speaker Option speaker speaker DP Option - Display Port ( DP 1.0, HDCP 1.3 ) - Speaker +12 VDC DVI-D Option - DVI-D ( DVI-D, TMDS single link ) - Audio input & output ( for F117 only ) - Speaker DVI-D... - Page 20 < 3.3 > Options : Touchscreen & driver Capacitive Touch screen Specifi cation Model TPC-10 Multi-touch Technology Projected Capacitive Touch Point Input Type Finger or Capacitive Stylus Resolution 4096 x 4096 Touch Point Accuracy ± 2 mm Response Speed < 5 ms Activation Force <...
- Page 21 < 3.3 > Options : Touchscreen & driver F1417 USB Touchscreen +12 VDC TPC-10 Driver Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer. TRB Driver Please follow the below steps to setup the touch screen:- Step 1.
- Page 22 < 3.4 > Options : DC Power Model 125V 250V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt 300-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V 180 ~ 425V Input current - No load 50 mA 50 mA 50 mA...
- Page 23 < 4.1 > F1417 KVM Integration F1417 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-2KKVM-KIT.pdf Local Remote 8-port -801D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-DVIKVM-KIT.pdf DVI-D Local Remote 12-port -1201D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-MUKVM-KIT.pdf Cat6 Local Remote 8-port 16-port 32-port Matrix -MUIP1613 -MUIP3213 -MUIP1624 -MUIP3224 -MU1602 -MU3202 -MU1603 -MU3203 -MU1604 -MU3204 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-UKVM-KIT.pdf Cat6 Local Remote 8-port 16-port 32-port...
- Page 24 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2023 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-F1417-Q423V1 P.19...
