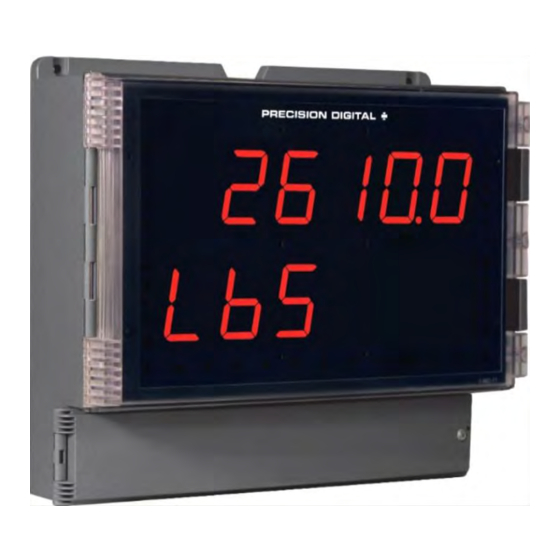

Large display strain gauge meter
Table of Contents

Advertisement

Quick Links

Helios Large Display Strain Gauge Meter
Instruction Manual
• Large 1.80" Digits
• Dual-Line 6-Digit Display
• Readable from up to 100 Feet (30 Meters) Away
• Superluminous Sunlight Readable Display
• NEMA 4X, IP65 Rated Field Mountable Enclosure
• Operating Temperature Range of -40 to 65°C (-40 to 150°F)
• 15, 30, 150, 300 mV Unipolar Input Ranges
• ±15, ±25, ±150, ±250 mV Bipolar Input Ranges
• Selectable 5 or 10 VDC @350 mA Maximum Sensor Excitation
• Supports up to Twelve (12) 350 Ω Load Cells
• Capture or Programmable Tare Feature
• Max/Min or Peak/Valley Hold Feature
• Auto-Zero Feature Eliminates Zero Drift
• Input Power Options Include 85-265 VAC or 12-24 VDC
• 2 or 4 Relays + Isolated 4-20 mA Output
• Onboard USB & RS-485 Serial Communication Options
• Modbus
• Program the Meter from a PC with onboard USB and MeterView Pro
