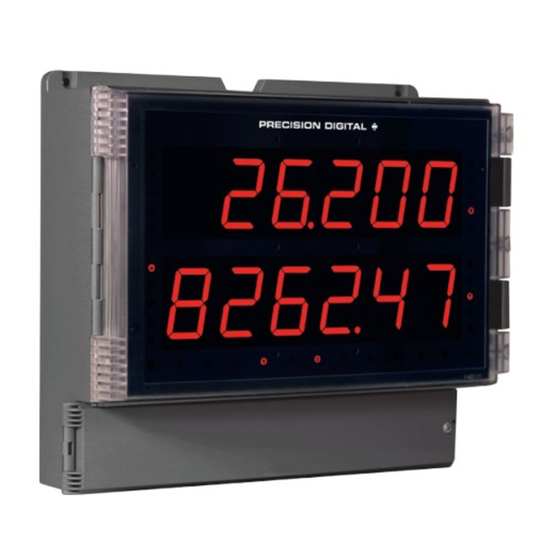

Helios PD2-6200 Analog Input Rate/Totalizer
Thank you for your purchase of the
Helios PD2-6200 large display meter!
This quick start guide will briefly
describe some of the common setup
procedures for this meter.
This guide includes:
Installing MeterView Pro......................
Additional information about the Helios
PD2-6200 meter can be found in the
instruction manual included on the CD
or available at
www.predig.com.
© 2016 Precision Digital Corporation.
.
All rights reserved
Quick Start Guide
Note: If you think you have made a mistake while
2
3
4
6
7
8
Programming buttons are located
under the bottom door panel. They can
be accessed by loosening the securing
screw and lifting the door panel.
MeterView Pro
USB Install
Menu Button - Access Programming
Mode and to return to Run Mode.
programming the meter, use this button to
return the meter to Run Mode without saving.
Right/Reset Button - Change the
selected digit while inputting nu-
meric values in Programming Mode.
Up/Max Button - Increment the se-
lected digit while inputting numeric
values in Programming Mode.
Enter Button - Access a menu or
accept an option while in Program-
ming Mode.
233 South Street
Hopkinton MA 01748-2208 USA
Tel. (508) 655-7300 www.predig.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Helios PD2-6200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PRECISION DIGITAL Helios PD2-6200

Summary of Contents for PRECISION DIGITAL Helios PD2-6200

  • Page 1: Table Of Contents

    Helios PD2-6200 Analog Input Rate/Totalizer Quick Start Guide MeterView Pro USB Install Thank you for your purchase of the Menu Button – Access Programming Mode and to return to Run Mode. Helios PD2-6200 large display meter! This quick start guide will briefly...

  • Page 2: Installing Meterview Pro

    Helios PD2-6200 Rate/Totalizer Quick Start Guide ® Installing MeterView The meter can be programmed using MeterView Pro. This software can be installed on any Microsoft® Windows® (2000/XP/Vista/7/8/10) computer by connecting to the meter’s onboard USB. The meter is powered by the USB connection, so there is no need to wire anything prior to programming the meter.

  • Page 3: Basic Wiring For Helios Meter

    Helios PD2-6200 Rate/Totalizer Quick Start Guide Basic Wiring for Helios Meter The connectors label, affixed to the inside of the front door panel, shows the location of all available connectors. Run wires through conduit holes at the base of the meter, connect to the provided screw terminals, and plug into the meter as indicated.

  • Page 4: Program And Scale The Input

    Helios PD2-6200 Rate/Totalizer Quick Start Guide Program and Scale the Input Program the Helios meter to accept a 4-20 mA or 0-10 V input and display a value associated with that range. When the meter is receiving a 4 mA or 0 V input, it will display the low end of the display range;...
  • Page 5 Helios PD2-6200 Rate/Totalizer Quick Start Guide Press until the Press to access dec pt (Decimal Point) dEc Pt (Decimal menu is displayed and press rAtE Point) menu for the (Rate) parameter. Press until the Press to access the desired decimal point ProG (Program) menu.

  • Page 6: Program Relays For Automatic Reset

    Helios PD2-6200 Rate/Totalizer Quick Start Guide Program Relays for Automatic Reset Program the Helios meter to turn the relays on at programmable set points and turn them off at reset points. Note: Only relays assigned to rate (Rate) will require a reset point value. If the set point is higher than the reset point, the relay will be a high alarm.

  • Page 7: Program 4-20 Ma Analog Output

    Helios PD2-6200 Rate/Totalizer Quick Start Guide Press to access the Using to change the (Relay 1 Set selected digit and Point) menu. to increment that digit, enter the desired set point value. Press when done. Using Press to access the...

  • Page 8: Reset Meter To Factory Defaults

    Helios PD2-6200 Rate/Totalizer Quick Start Guide Press to access to change the dis 1 (Display 1) selected digit and menu. This is the display value at which the increment that digit. Press when done to low range of the output will be transmitted.
