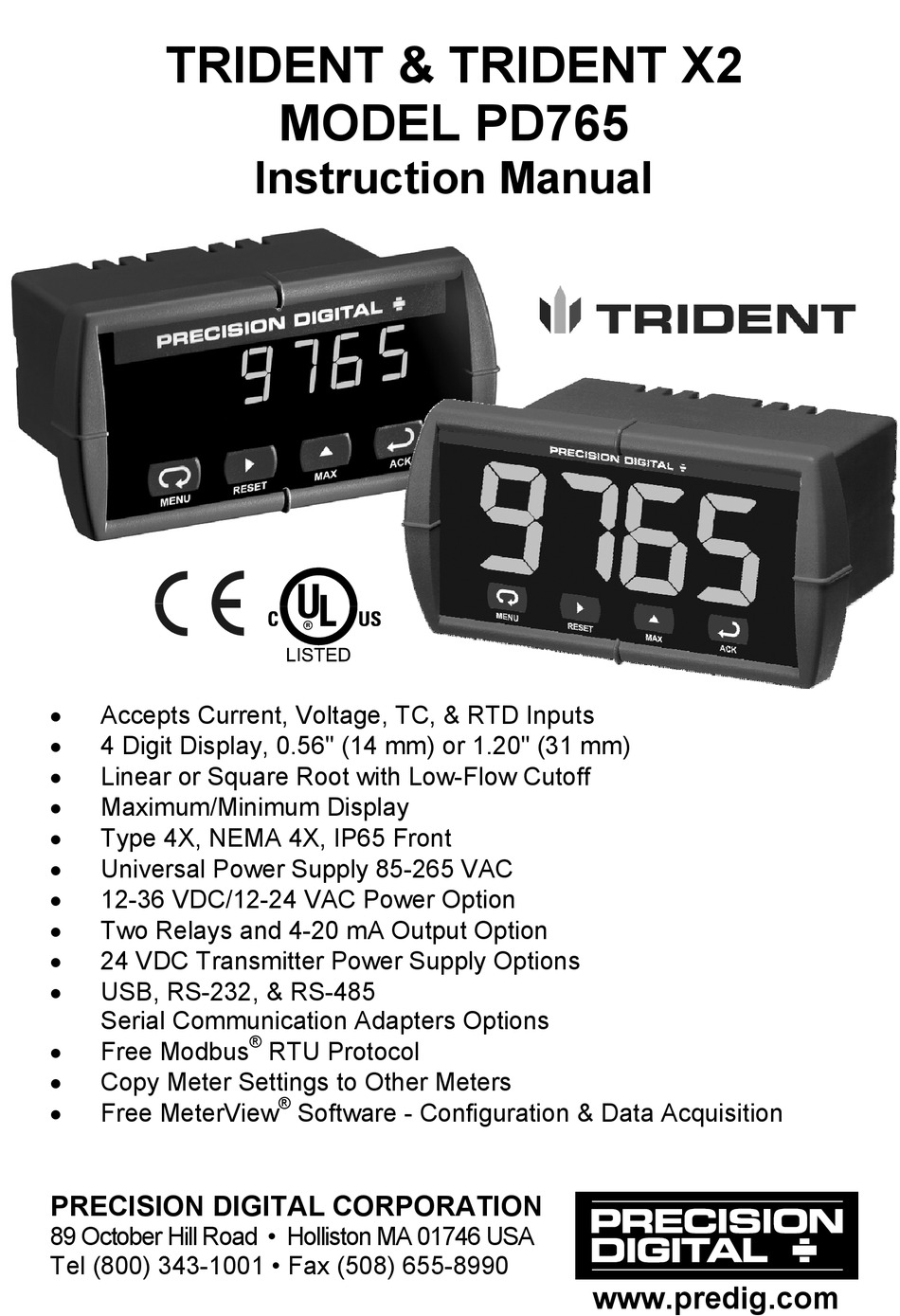

Trident & trident x2
Hide thumbs
Table of Contents

Advertisement

Quick Links

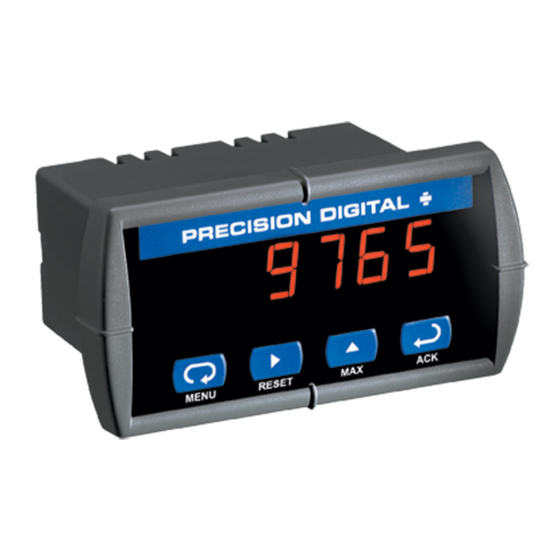

TRIDENT & TRIDENT X2
Accepts Current, Voltage, TC, & RTD Inputs
4 Digit Display, 0.56" (14 mm) or 1.20" (31 mm)
Linear or Square Root with Low-Flow Cutoff
Maximum/Minimum Display
Type 4X, NEMA 4X, IP65 Front
Universal Power Supply 85-265 VAC
12-36 VDC/12-24 VAC Power Option
Two Relays and 4-20 mA Output Option
24 VDC Transmitter Power Supply Options
USB, RS-232, & RS-485
Serial Communication Adapters Options
Free Modbus
Copy Meter Settings to Other Meters
Free MeterView
PRECISION DIGITAL CORPORATION
89 October Hill Road • Holliston MA 01746 USA
Tel (800) 343-1001 • Fax (508) 655-8990
MODEL PD765
Instruction Manual
®
RTU Protocol
®
Software - Configuration & Data Acquisition
www.predig.com
