Changing a Manual Control Setting

To change a manual control setting, follow this procedure:
1. In the Equipment Settings column on the Settings screen, touch M M a a n n u u a a l l C C o o n n t t r r o o l l S S e e t t t t i i n n g g s s .
2. Touch the button that shows the manual control setting you want to change. A screen for
3. Touch the button that represents the setting you want. The button becomes shaded and
4. To save your change, do one of the following:
CTV-SVU01G-EN
The Manual Control Settings screen appears as shown in the following figure.

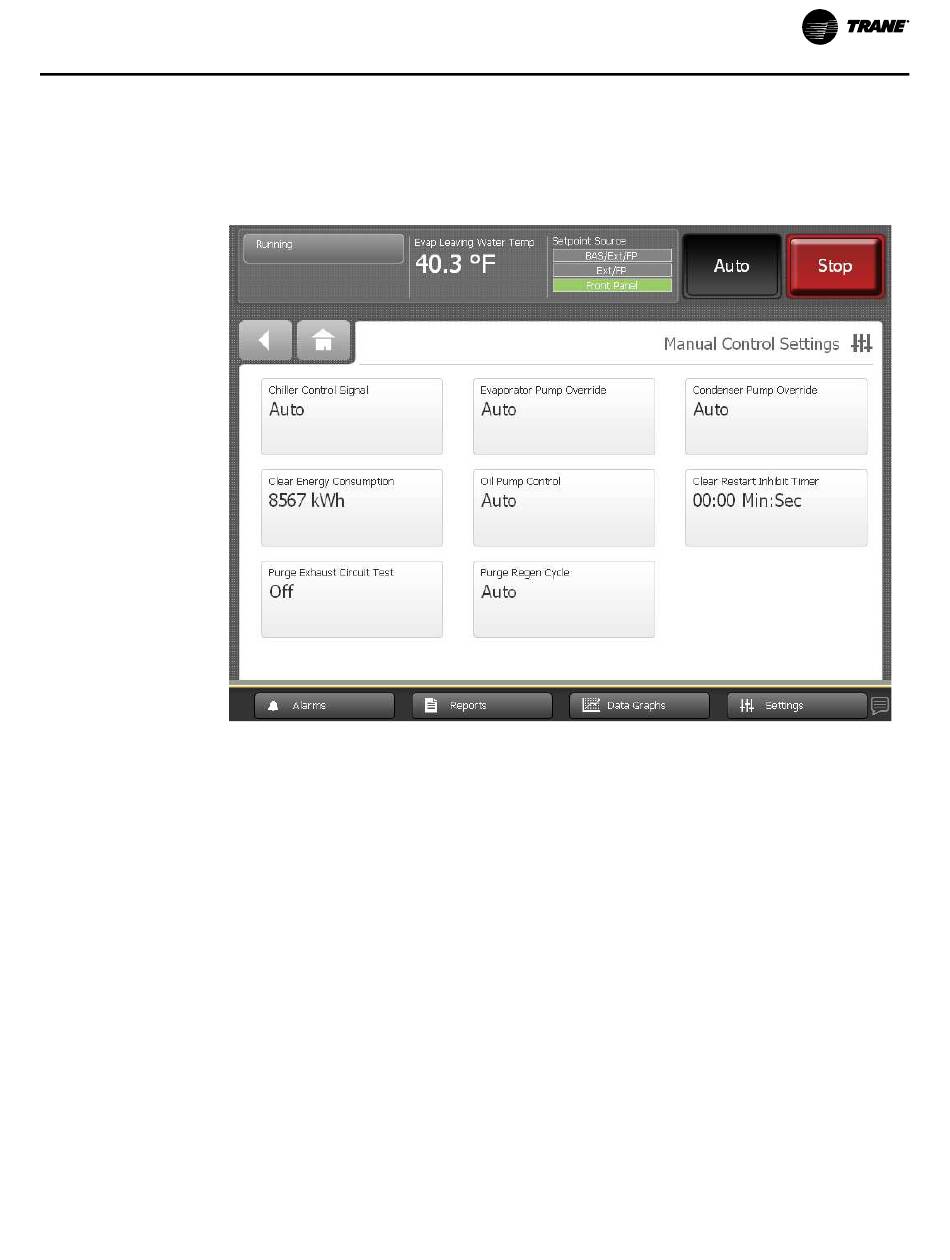

Figure 27. Manual Control Settings screen
changing the manual control setting appears as shown in the following figure.
A A p p p p l l y y and S S a a v v e e buttons appear at the bottom of the screen.
N N o o t t e e : : The Compressor Control Signal screen provides up/down arrow keys and numerical
fields for selecting a value.
• Touch A A p p p p l l y y . The change is communicated to the Tracer® UC800 controller. You can
observe the status points in the lower half of the screen change in response to the setting
change you just made. Also, a Manual Override button appears in the upper left corner of
the screen (refer to the following figure).
• Touch S S a a v v e e . The change is communicated to the Tracer® UC800 controller. The screen
you were previously viewing appears.
E E q q u u i i p p m m e e n n t t S S e e t t t t i i n n g g s s
