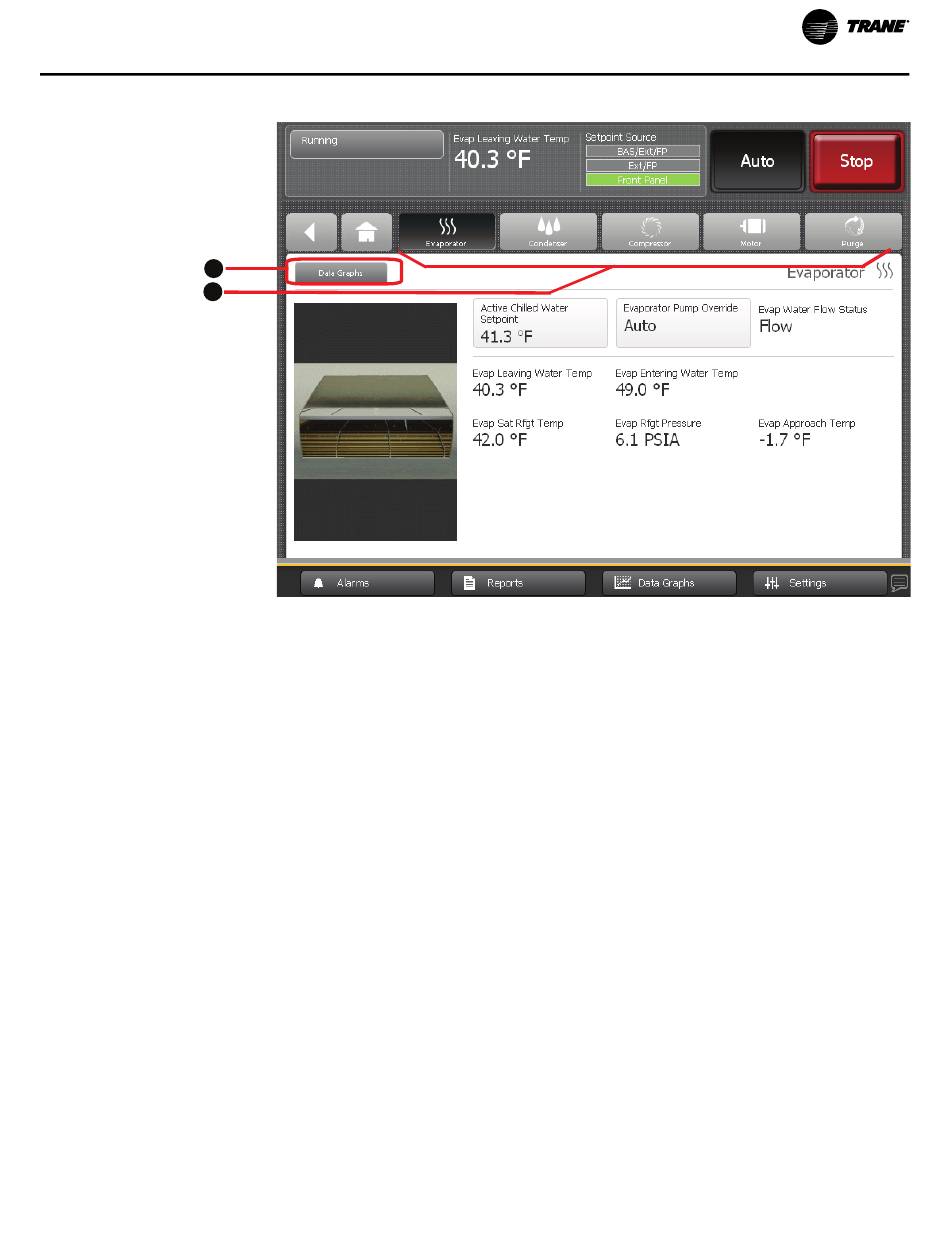

Figure 4. Component screen example for Simplex chillers
1
2
1. Data Graph shortcut button
2. Component screen shortcut buttons
D D u u p p l l e e x x C C h h i i l l l l e e r r s s
Each component has a separate screen for circuit 1 and circuit 2.
•
•
Circuit 1 and Circuit 2 buttons at the bottom of each component screen (see Location 4 in the
following figure) allow you to toggle between circuit 1 and circuit 2 component screens.
You can use the shortcut buttons at the top of each of the component screens (see Location 2 in
the preceding figure) to view the other components screens. If you are viewing a circuit 1
component screen and touch a shortcut button, the circuit 1 screen for the component
represented by that button appears; and likewise for circuit 2.
"Appendix B: Data for CenTraVac Duplex Chillers ," p. 77
are accessible from each of the component screens. The chiller configuration determines which
of the settings and status points appear.
CTV-SVU01G-EN
If you touch anywhere on an evaporator or condenser component touch target, a screen
appears containing data related to circuit 1 of that component (refer to the following figure).
If you touch in the circuit 1 data area of a compressor, motor, or purge component touch
target, a screen appears containing data related to circuit 1 of that component. If you touch in
the circuit 2 data area of a compressor, motor, or purge component touch target, a screen
appears containing data related to circuit 2 of that component.
P P r r o o d d u u c c t t O O v v e e r r v v i i e e w w
lists the settings and status points that
