R R e e p p o o r r t t s s

About this Chiller

On the Reports screen, touch A A b b o o u u t t T T h h i i s s C C h h i i l l l l e e r r to view the following unit information:
•
•
•
•
•
•
•
•
•
•

Viewing Chiller Operating Modes

On the Reports screen, touch C C h h i i l l l l e e r r O O p p e e r r a a t t i i n n g g M M o o d d e e s s to view the current operating status of
the chiller in terms of the top-level operating mode and submodes.
N N o o t t e e : : You can also access the Chiller Operating Modes screen from the chiller status button in

Simplex Chillers

The following figure shows an example of a Chiller Operating Modes screen for a Simplex chiller.

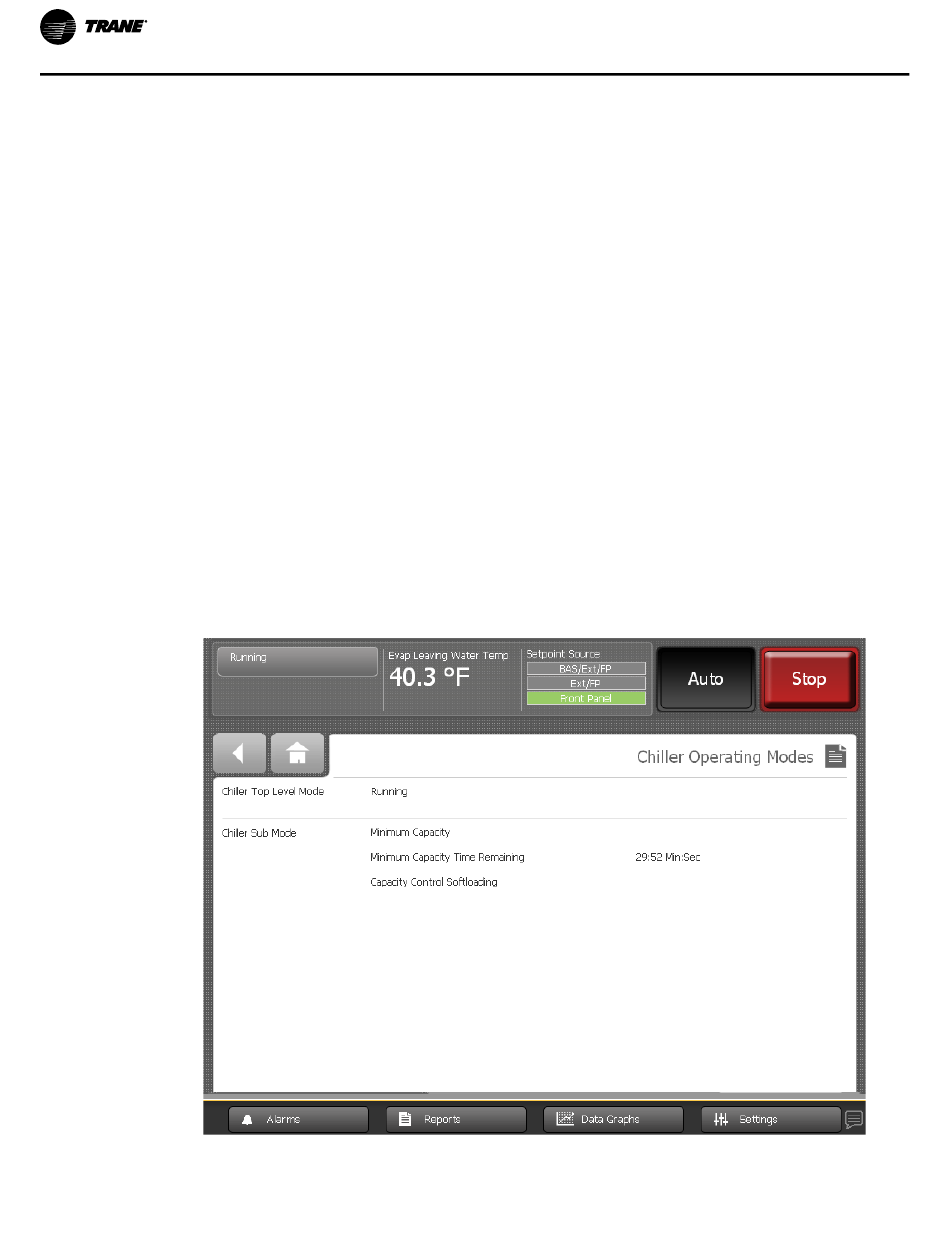

Figure 12. Chiller Operating Modes screen for Simplex chillers
Simplex chillers operate in one of the top-level operating modes shown in the following table.
The table gives a description of the top-level modes and lists the submodes that correspond to
each top-level mode.
26
Chiller Name
Chiller Model Number
Chiller Sales Order Number
Product Name
Controller Build Part Number
Chiller Serial Number
Display Firmware Build
Controller Hardware Serial Number
Controller Boot Part Number
Display Boot Code
the upper left corner of the screen.
CTV-SVU01G-EN
