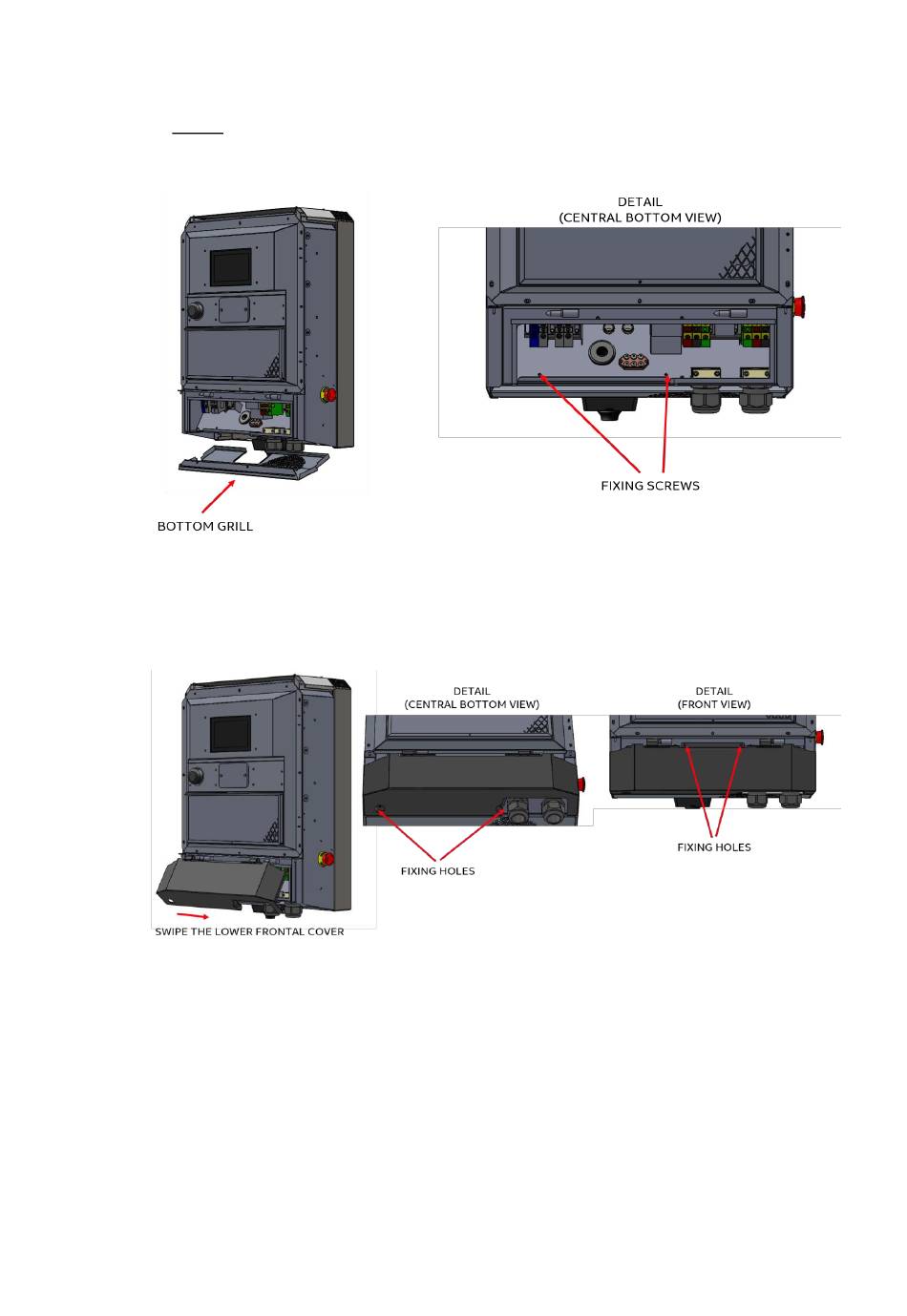

8. AFTER the cable connection (refer to para 5.4.2 and 5.5), take the bottom grid and
put it on the lower side of the unit and fix it by tightening two screws as shown in the
following picture.
9. Take the lower frontal cover and put it on the lower side of the unit and fix it tighten-
ing two screws as showed in the following picture.
10. Center the holes on the plastic cover with the pins on the box (see picture)
