2.1.3

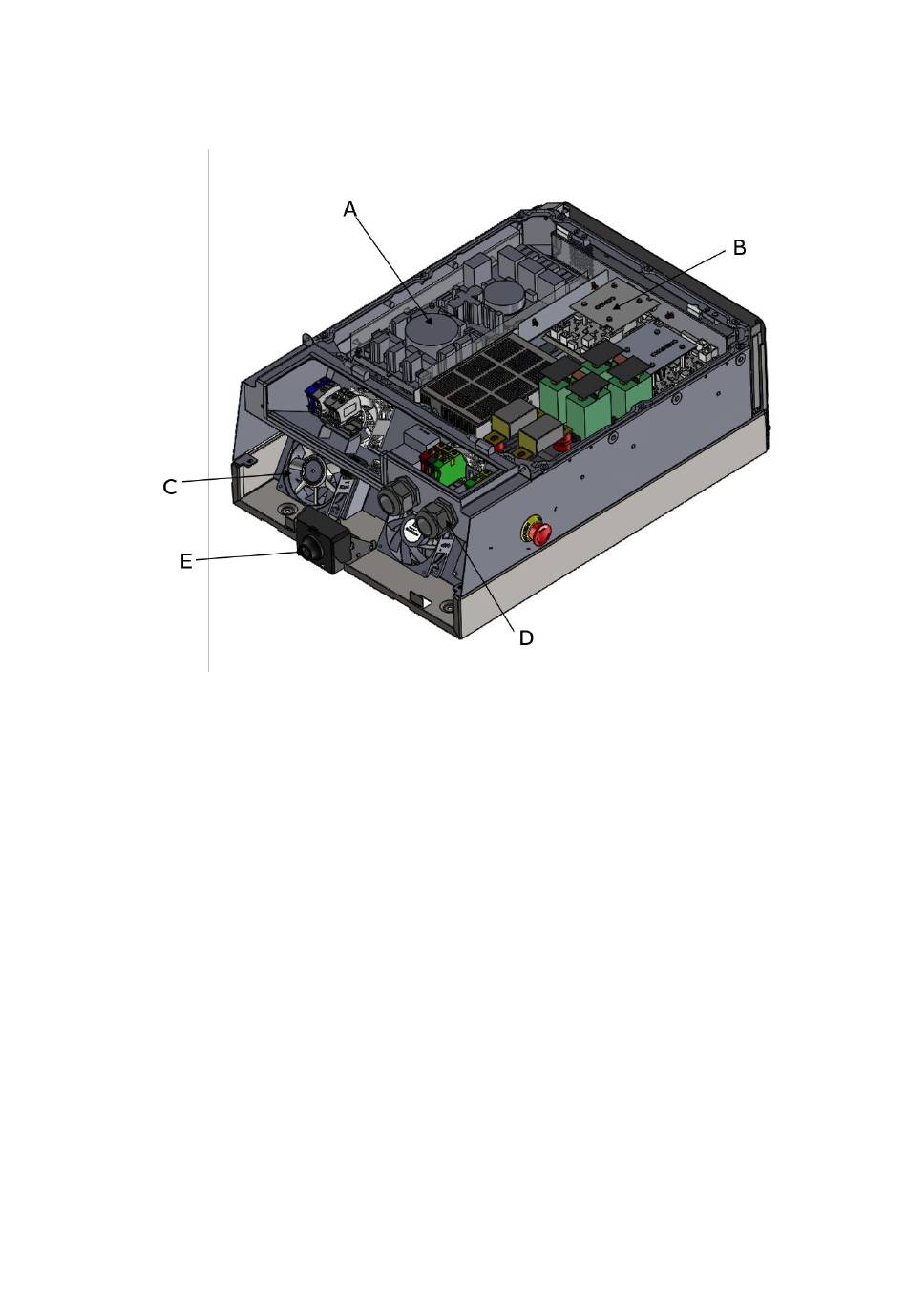

Inside view

A AC input board
B CPI and IMI boards
C External Fan (2x)
2.2

Geometry of infrastructure

2.2.1

Required space for placing and maintaining the Terra DC Wallbox

The Terra DC Wallbox requires a minimum space of 900 x 1200 mm. This space is calcu-
lated as follows:
- Size Charger W x D x H: 304.5 x 512 x 770 mm.
- Bottom side 600 mm (400 mm from the Terra DC Wallbox in order to avoid obstacles
for the electrical connection).
- Left and right side 300 mm, in order to operate without obstacles on the lateral side of
the Terra DC Wallbox.
2 2 -O CT -19
T ERRA D C WA LLBO X
D Cable gland for DC output(2x)
E Cable gland for AC input
