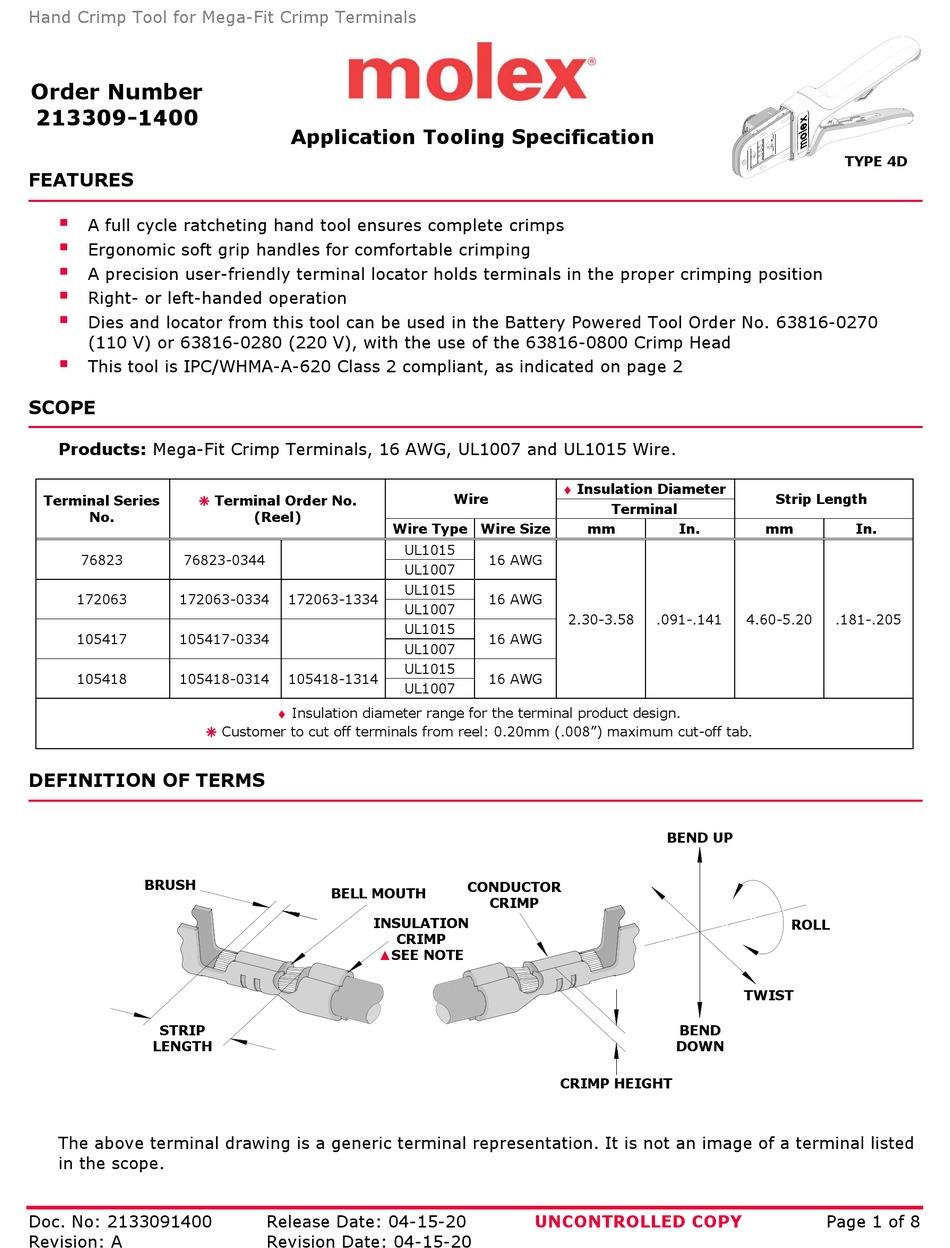

molex 213309-1400 Manual

Hand Crimp Tool for Mega-Fit Crimp Terminals
Order Number
213309-1400
FEATURES

A full cycle ratcheting hand tool ensures complete crimps

Ergonomic soft grip handles for comfortable crimping

A precision user-friendly terminal locator holds terminals in the proper crimping position

Right- or left-handed operation

Dies and locator from this tool can be used in the Battery Powered Tool Order No. 63816-0270
(110 V) or 63816-0280 (220 V), with the use of the 63816-0800 Crimp Head

This tool is IPC/WHMA-A-620 Class 2 compliant, as indicated on page 2
SCOPE
Products: Mega-Fit Crimp Terminals, 16 AWG, UL1007 and UL1015 Wire.
Terminal Series

No.
76823 76823-0344
172063 172063-0334
105417 105417-0334
105418 105418-0314

DEFINITION OF TERMS
BRUSH
STRIP
LENGTH
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed
in the scope.
Doc. No: 2133091400
Revision: A
Application Tooling Specification
Terminal Order No.
(Reel)
Wire Type Wire Size
172063-1334
105418-1314
 Insulation diameter range for the terminal product design.
Customer to cut off terminals from reel: 0.20mm (.008") maximum cut-off tab.
BELL MOUTH
INSULATION
▲SEE NOTE
Release Date: 04-15-20
Revision Date: 04-15-20

Wire
UL1015
16 AWG
UL1007
UL1015
16 AWG
UL1007
2.30-3.58
UL1015
16 AWG
UL1007
UL1015
16 AWG
UL1007
CONDUCTOR
CRIMP
CRIMP
CRIMP HEIGHT
UNCONTROLLED COPY
Insulation Diameter
Terminal
mm In.
.091-.141 4.60-5.20
BEND UP
TWIST
BEND
DOWN
TYPE 4D
Strip Length
mm In.
.181-.205
ROLL
Page 1 of 8
