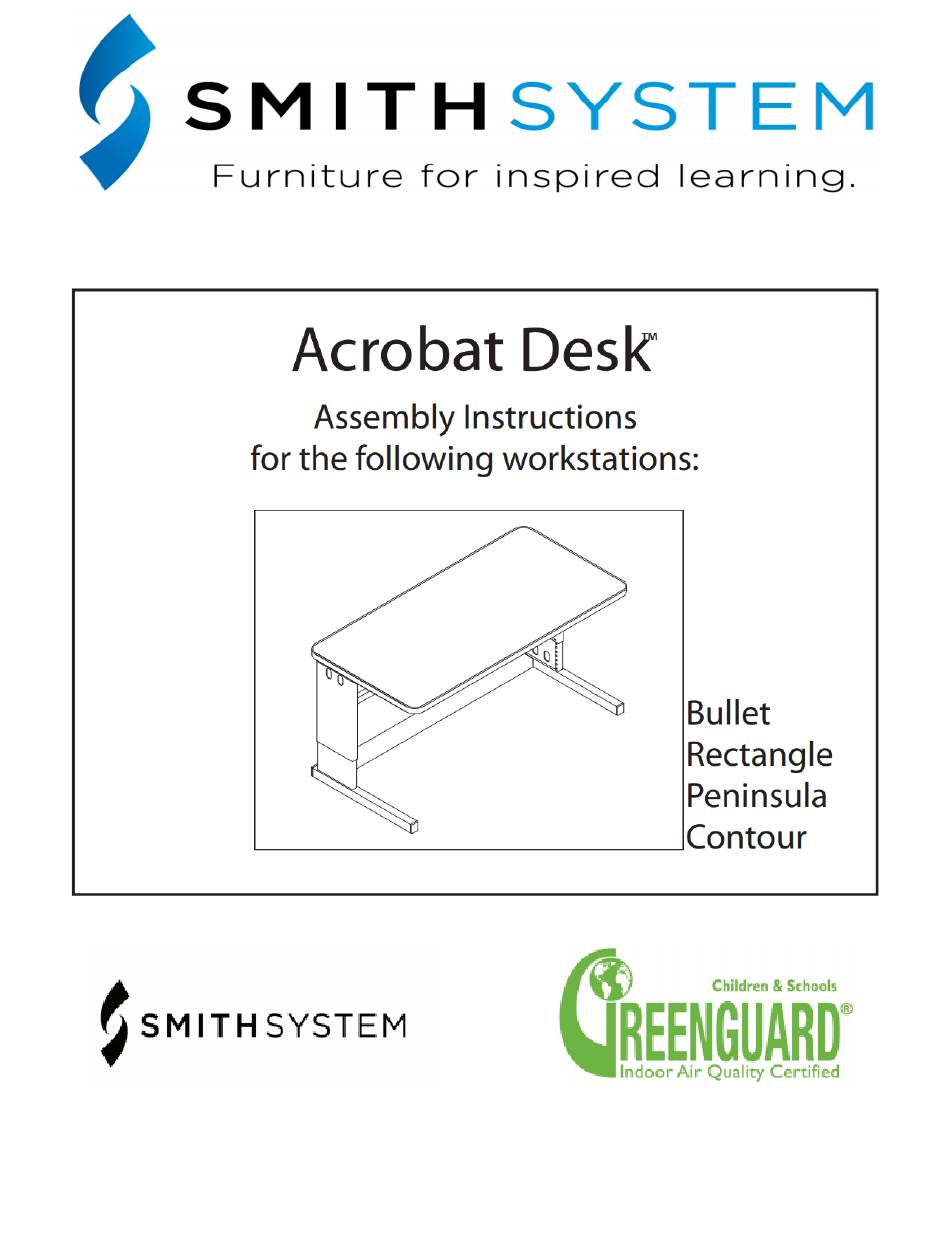

- Page 1 For Assistance in assembling product, missing or damaged parts, or to place an order, please contact customer service at 800-328-1061 You may also place your order online at www.smithsystem.com Form# 179856A 04/2014...
- Page 2 Special Notes: 1. Check that all components are accounted for and undamaged before assembling. 2. Please assemble product in a clean and dry area. 3. For larger units, you may need another person to help assemble the product. 4. Clean the product with a mild cleaner and a damp cloth. Tools You will need a Phillips Head Screwdriver.
- Page 3 Replacement pack 69755 includes: 77471 (Qty. 16) 1/4-20X1/2” Combo Drive Machine Screw 70226 (Qty. 8) 10-32X1/2” Machine Screw 77482 (Qty. 2) Tinnerman Clip 70054 (Qty. 16) SM Screw #10X3/4 HI/LO PTH Shapes and Sizes Assembly Instructions Step 1: Flip the top upside down on a clean dry surface. Align the leg sets with the predrilled holes on the top.
- Page 4 Step 3: Attach the Modesty Panel to the legs using (4) ¼-20X1/2” Machine Screws. The ¼-20 screws for the height of the leg set may need to be loosened to realign holes to attach the modesty panel. Step 4: Attach the Cross Brace to the foot using (4) 10-32X1/2” Machine Screws. For Assistance in assembling product, missing or damaged parts, or to place an order, please contact customer service at 800-328-1061 You may also place your order online at...
- Page 5 Step 5: Attach the brackets to the top using (8) #10 wood screws, by first aligning the brackets with the predrilled holes. Step 6: With help, flip the desk back into its upright position. Your desk is now ready for use. Enjoy! For Assistance in assembling product, missing or damaged parts, or to place an order, please contact customer service at 800-328-1061 You may also place your order online at...
