Form# 179856A
ASSEMBLY
INSTRUCTIONS
ACROBAT™
BULLET, RECTANGLE, PENINSULA & CONTOUR

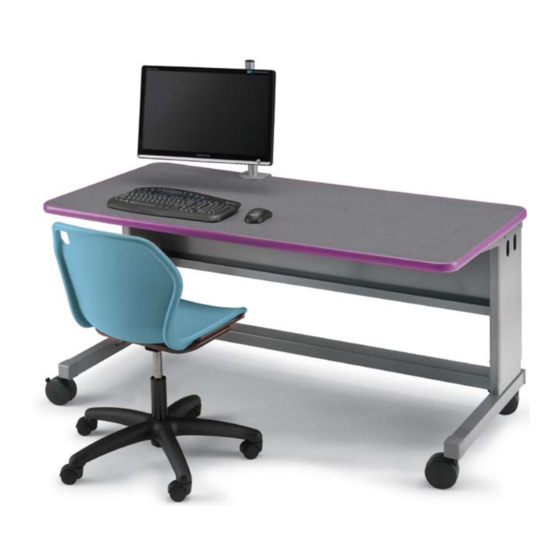

Rectangle Workstations
26443
Rectangle Instructor Desk 30" x 48"
26453
Rectangle Instructor Desk 30" x 60"
26526
Rectangle Instructor Desk 30" x 72"
26528
Rectangle Instructor Desk 30" x 60" w/ BBF Pedestal
Peninsula Workstations
26213
Peninsula Instructor Desk 36" x 72"
26233
Peninsula Instructor Desk 36" x 60"
Bullet Workstations
26515
Bullet Workstation 24" x 45"
26512
Bullet Workstation 30" x 45"
26516
Bullet Workstation 30" x 60"
26522
Bullet Workstation 30" x 72"
26536
Bullet Instructor Desk 30" x 60" (w/ BBF Ped + Lectern)
26538
Bullet Instructor Desk 30" x 72" (w/ BBF Ped + Lectern)
Contour Workstations
26203
Contour Instructor Desk 36" x 72"
Replacement pack 69755 includes:
26223
Contour Instructor Desk 36" x 60"
77471 (Qty. 16) 1/4-20X1/2" Combo Drive Machine Screw
70226 (Qty. 8) 10-32X1/2" Machine Screw
77482 (Qty. 2) Tinnerman Clip
70054 (Qty. 16) SM Screw #10X3/4 HI/LO PTH
or to place an order, please contact Customer Service at 800-328-1061.
Step 1: Flip the top upside down on a clean dry surface. Align the leg sets with the predrilled holes on
the top.
Step 2: Adjust the legs to the desired height by taking out the (4) ¼-20X1/2" Machine screws per leg and
reinserting them at the desired height.
Form# 179856A
Install (1) Tinnerman Clip per leg in the square hole located inside of the leg.
www.smithsystem.com
For assistance in assembling product, missing or damaged parts,
Shapes and Sizes
Assembly Instructions
For Assistance in assembling product, missing or damaged parts,
or to place an order, please contact customer service at 800-328-1061
You may also place your order online at
www.smithsystem.com
08.21.2015
Advertisement
Table of Contents
Related Manuals for SMITH SYSTEM ACROBAT Rectangle
Summary of Contents for SMITH SYSTEM ACROBAT Rectangle
- Page 1 Form# 179856A www.smithsystem.com 08.21.2015 ASSEMBLY INSTRUCTIONS ACROBAT™ BULLET, RECTANGLE, PENINSULA & CONTOUR Rectangle Workstations 26443 Rectangle Instructor Desk 30” x 48” 26453 Rectangle Instructor Desk 30” x 60” 26526 Rectangle Instructor Desk 30” x 72” 26528 Rectangle Instructor Desk 30” x 60” w/ BBF Pedestal Peninsula Workstations 26213 Peninsula Instructor Desk 36”...
- Page 2 Special Notes: 1. Check that all components are accounted for and undamaged before assembling. Form# 179856A www.smithsystem.com 08.21.2015 2. Please assemble product in a clean and dry area. 3. For larger units, you may need another person to help assemble the product. 4.
- Page 3 Shapes and Sizes Form# 179856A www.smithsystem.com 08.21.2015 ASSEMBLY INSTRUCTIONS Assembly Instructions STEP 1: Flip the top upside down on a clean dry surface. Align the leg sets with the predrilled holes on the top. Step 1: Flip the top upside down on a clean dry surface. Align the leg sets with the predrilled holes on the top.
- Page 4 Form# 179856A www.smithsystem.com 08.21.2015 ASSEMBLY INSTRUCTIONS STEP 3: Attach the modesty panel to the legs using (4) 1/4 - 20 x 1/2” machine screws. (The 1/4 - 20 screws for the height of the leg set may need to be loosened to realign holes to attach the modesty panel).
- Page 5 Form# 179856A www.smithsystem.com 08.21.2015 ASSEMBLY INSTRUCTIONS STEP 5: Attach the brackets to the top using (8) #10 wood screws, by first aligning the brackets Step 5: Attach the brackets to the top using (8) #10 wood screws, by first aligning the brackets with the with the predrilled holes in the top.
