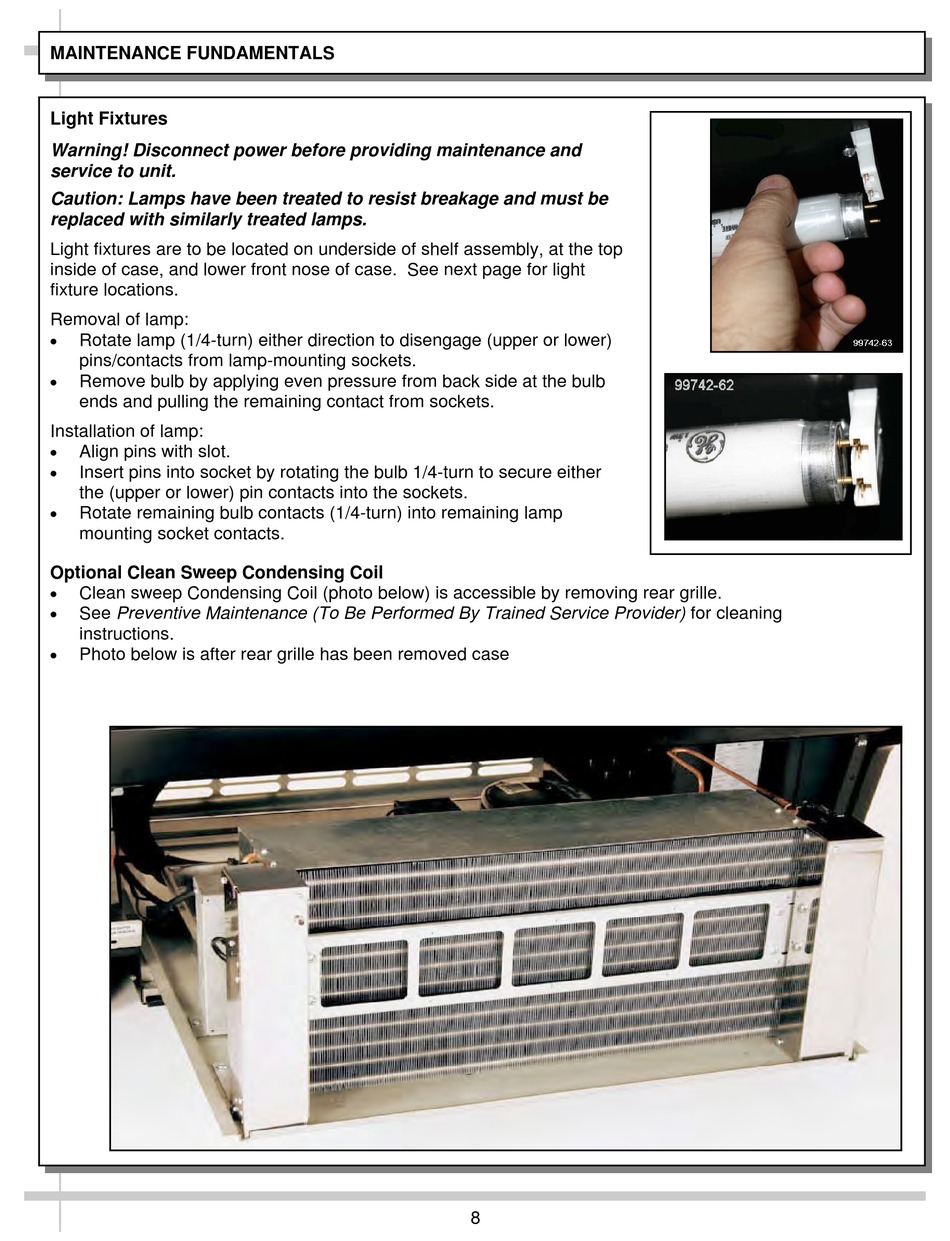

MAINTENANCE FUNDAMENTALS

Light Fixtures
Warning! Disconnect power before providing maintenance and
service to unit.
Caution: Lamps have been treated to resist breakage and must be
replaced with similarly treated lamps.
Light fixtures are to be located on underside of shelf assembly, at the top
inside of case, and lower front nose of case. See next page for light
fixture locations.
Removal of lamp:

Rotate lamp (1/4-turn) either direction to disengage (upper or lower)
pins/contacts from lamp-mounting sockets.

Remove bulb by applying even pressure from back side at the bulb
ends and pulling the remaining contact from sockets.
Installation of lamp:

Align pins with slot.

Insert pins into socket by rotating the bulb 1/4-turn to secure either
the (upper or lower) pin contacts into the sockets.

Rotate remaining bulb contacts (1/4-turn) into remaining lamp
mounting socket contacts.
Optional Clean Sweep Condensing Coil

Clean sweep Condensing Coil (photo below) is accessible by removing rear grille.

See Preventive Maintenance (To Be Performed By Trained Service Provider) for cleaning
instructions.

Photo below is after rear grille has been removed case
