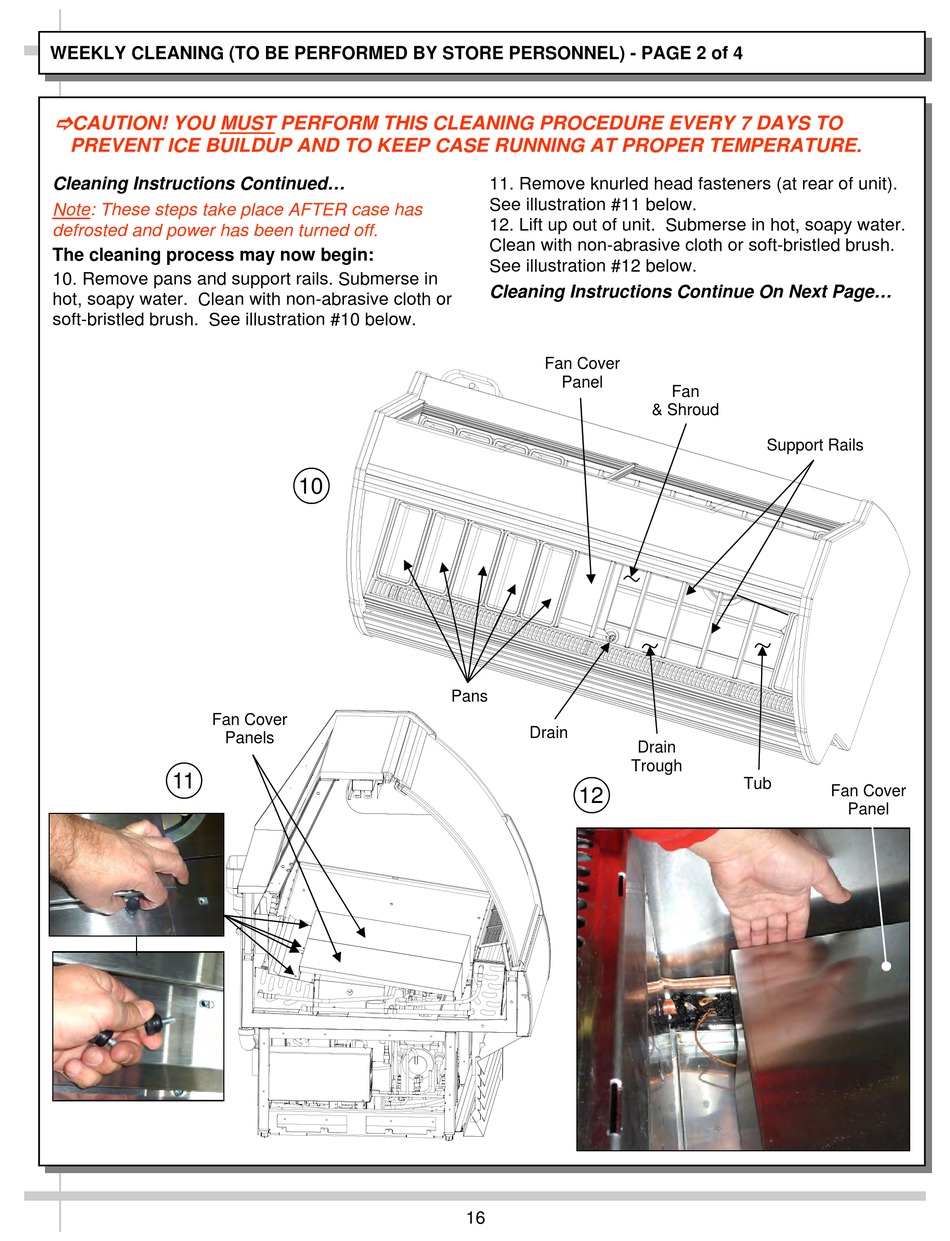

WEEKLY CLEANING (TO BE PERFORMED BY STORE PERSONNEL) - PAGE 2 of 4

CAUTION! YOU MUST PERFORM THIS CLEANING PROCEDURE EVERY 7 DAYS TO
PREVENT ICE BUILDUP AND TO KEEP CASE RUNNING AT PROPER TEMPERATURE.
Cleaning Instructions Continued...
Note: These steps take place AFTER case has
defrosted and power has been turned off.
The cleaning process may now begin:
10. Remove pans and support rails. Submerse in
hot, soapy water. Clean with non-abrasive cloth or
soft-bristled brush. See illustration #10 below.
Fan Cover
Panels
11
10
Pans
16
11. Remove knurled head fasteners (at rear of unit).
See illustration #11 below.
12. Lift up out of unit. Submerse in hot, soapy water.
Clean with non-abrasive cloth or soft-bristled brush.
See illustration #12 below.
Cleaning Instructions Continue On Next Page...
Fan Cover
Panel
& Shroud
Drain
Drain
Trough
12
Fan
Support Rails
Tub
Fan Cover
Panel
