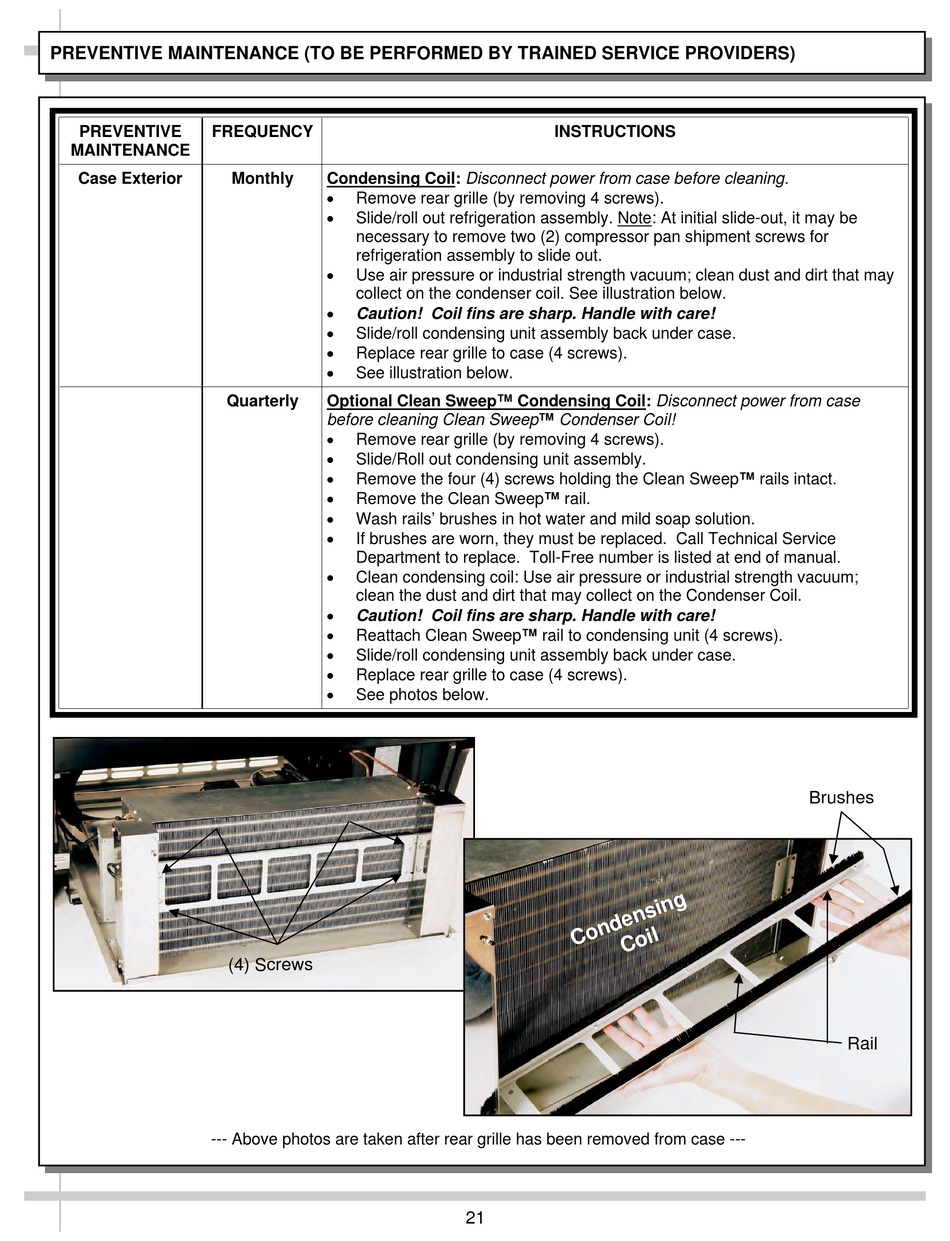

PREVENTIVE MAINTENANCE (TO BE PERFORMED BY TRAINED SERVICE PROVIDERS)
PREVENTIVE
FREQUENCY
MAINTENANCE
Case Exterior
Quarterly
(4) Screws
--- Above photos are taken after rear grille has been removed from case ---
Monthly
Condensing Coil: Disconnect power from case before cleaning.

Remove rear grille (by removing 4 screws).

Slide/roll out refrigeration assembly. Note: At initial slide-out, it may be
necessary to remove two (2) compressor pan shipment screws for
refrigeration assembly to slide out.

Use air pressure or industrial strength vacuum; clean dust and dirt that may
collect on the condenser coil. See illustration below.

Caution! Coil fins are sharp. Handle with care!

Slide/roll condensing unit assembly back under case.

Replace rear grille to case (4 screws).

See illustration below.
Optional Clean Sweep™ Condensing Coil: Disconnect power from case
before cleaning Clean Sweep™ Condenser Coil!

Remove rear grille (by removing 4 screws).

Slide/Roll out condensing unit assembly.

Remove the four (4) screws holding the Clean Sweep™ rails intact.

Remove the Clean Sweep™ rail.

Wash rails' brushes in hot water and mild soap solution.

If brushes are worn, they must be replaced. Call Technical Service
Department to replace. Toll-Free number is listed at end of manual.

Clean condensing coil: Use air pressure or industrial strength vacuum;
clean the dust and dirt that may collect on the Condenser Coil.

Caution! Coil fins are sharp. Handle with care!

Reattach Clean Sweep™ rail to condensing unit (4 screws).

Slide/roll condensing unit assembly back under case.

Replace rear grille to case (4 screws).

See photos below.
