Structural Concepts ENCORE Series Installation And Operating Manual page 17

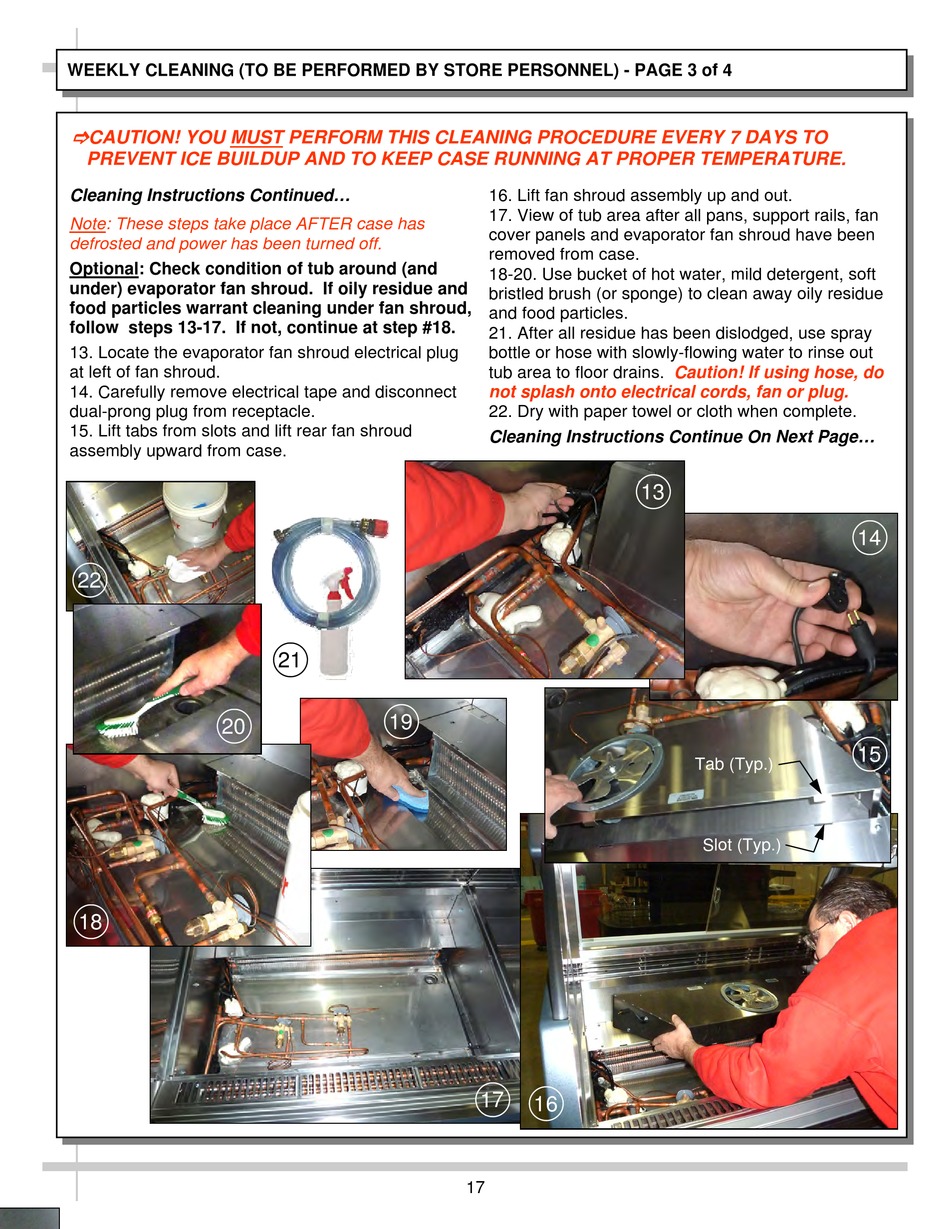

WEEKLY CLEANING (TO BE PERFORMED BY STORE PERSONNEL) - PAGE 3 of 4

CAUTION! YOU MUST PERFORM THIS CLEANING PROCEDURE EVERY 7 DAYS TO
PREVENT ICE BUILDUP AND TO KEEP CASE RUNNING AT PROPER TEMPERATURE.
Cleaning Instructions Continued...
Note: These steps take place AFTER case has
defrosted and power has been turned off.
Optional: Check condition of tub around (and
under) evaporator fan shroud. If oily residue and
food particles warrant cleaning under fan shroud,
follow steps 13-17. If not, continue at step #18.
13. Locate the evaporator fan shroud electrical plug
at left of fan shroud.
14. Carefully remove electrical tape and disconnect
dual-prong plug from receptacle.
15. Lift tabs from slots and lift rear fan shroud
assembly upward from case.
22
20
18
21
19
16. Lift fan shroud assembly up and out.
17. View of tub area after all pans, support rails, fan
cover panels and evaporator fan shroud have been
removed from case.
18-20. Use bucket of hot water, mild detergent, soft
bristled brush (or sponge) to clean away oily residue
and food particles.
21. After all residue has been dislodged, use spray
bottle or hose with slowly-flowing water to rinse out
tub area to floor drains.
not splash onto electrical cords, fan or plug.
22. Dry with paper towel or cloth when complete.
Cleaning Instructions Continue On Next Page...
13
17
16
17
Caution! If using hose, do
Tab (Typ.)
Slot (Typ.)
14
15
