PREVENTIVE MAINTENANCE (TO BE PERFORMED BY TRAINED SERVICE PROVIDERS), CONT'D
PREVENTIVE FREQ.
MAINTENANCE
Condensate Pan Quarterly Condensate Pan: Disconnect power from case and allow pan to cool before
Access To Condensate Pan
May Be Gained At Left Side
(After Rear Panel Has
cleaning.

Remove rear panel (screw removal is required).

As illustration below shows, pan may be accessed at either left or right sides.

Use a scrub-brush and a de-scaling solution such as CLR® (to prevent
corrosion, lime and rust). Follow instructions on container as to proper dilution,
safety precautions and scrubbing method.

After thoroughly cleaning, rinse thoroughly with clean water (in spray bottle) and
wipe dry with sponge, paper towel or wet/dry vacuum.

Replace rear panel.

Note: For extreme residue buildup, pan may be removed from case (screw
removal is required) and cleaned in sink.
components on the pan assembly, do not submerse in water while
cleaning. Return to case in reverse order it was removed. Replace rear panel.
Been Removed)

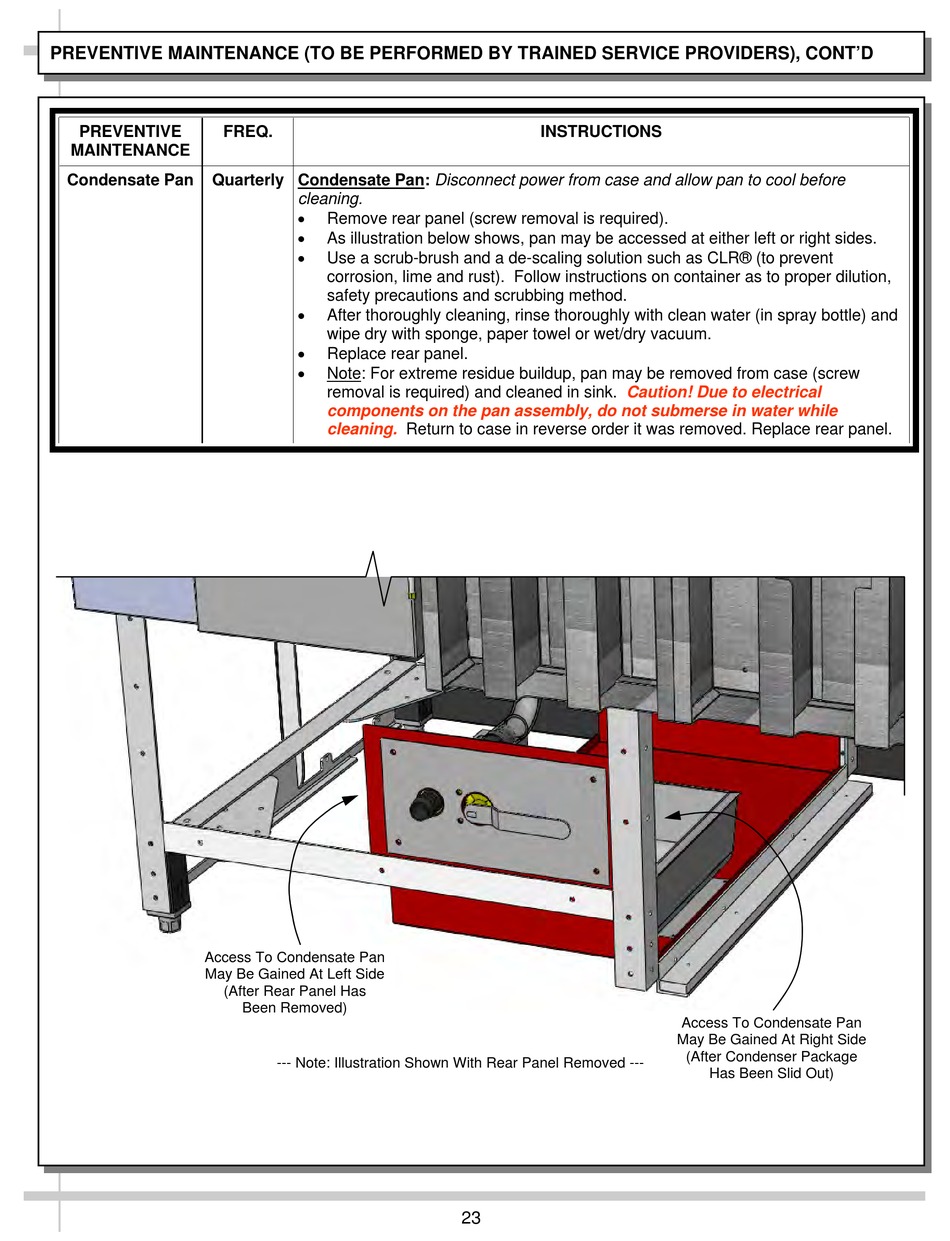

--- Note: Illustration Shown With Rear Panel Removed ---
INSTRUCTIONS
Caution! Due to electrical
23
Access To Condensate Pan
May Be Gained At Right Side
(After Condenser Package
Has Been Slid Out)
