Structural Concepts ENCORE Series Installation And Operating Manual page 22

PREVENTIVE MAINTENANCE (TO BE PERFORMED BY TRAINED SERVICE PROVIDERS), CONT'D
PREVENTIVE FREQ.
MAINTENANCE

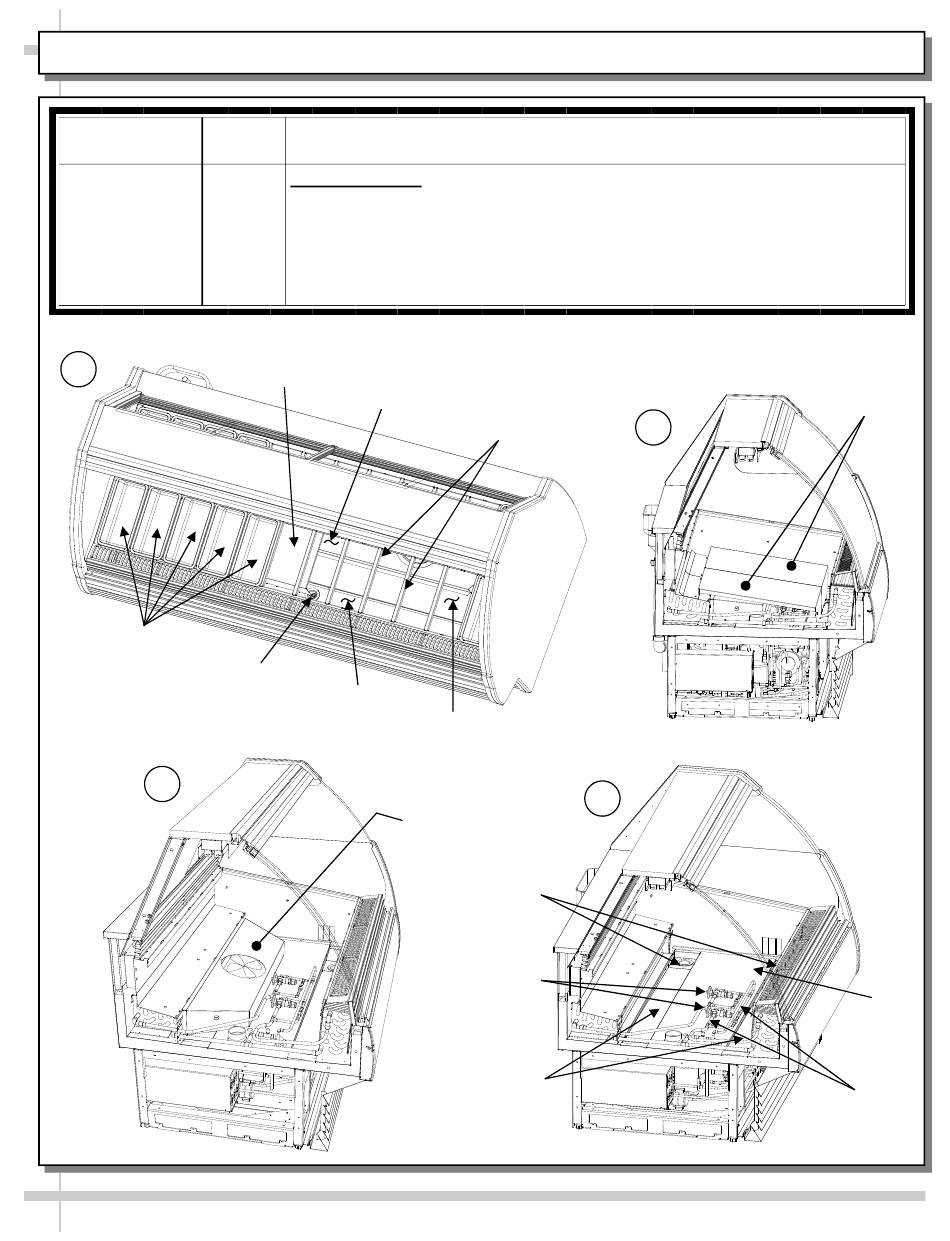

Case Interior Quarterly Internal Cleaning: Disconnect power from case before cleaning.
1
Pans
3
1. Remove pans and support rails.
2. Remove fan cover panels (after removing knurled head fasteners).
3. Wipe down fan shroud and fan blades with warm, soapy water and soft cloth.
Then, disconnect (screw removal is required) and remove from case.
4. Clean out drains. Use warm, soapy water and soft cloth to wipe down TXVs, tub,
troughs, copper tubing, etc.
Fan Cover
Panel
Fan
& Shroud
Drain
Drain
Trough
Fan Shroud
INSTRUCTIONS
Support
Rails
Tub
4
Drains
TXVs
Troughs
22
2
Copper
Fan Cover
Panels
Tub
Tubing
