PREVENTIVE MAINTENANCE (TO BE PERFORMED BY TRAINED SERVICE PROVIDERS), CONT'D
PREVENTIVE
FREQ.
MAINTENANCE
Condensate
Quarterly Condensate Package Disconnect power from case before cleaning.
Package
Condenser
Coils (Typ.)
Shipment
Damage Screw
TXV
Sight Glass
Filter Dryer
Accumulator
Receiver
Note: Model G12F.5150 Is Shown.
Your Model May Slightly Differ

Remove rear panel (screw removal is required).

Slide condenser package out from under case rear.

Use moist cloth to wipe off dust & debris that collects on various parts (fans,
sight glass, TXV, etc.).


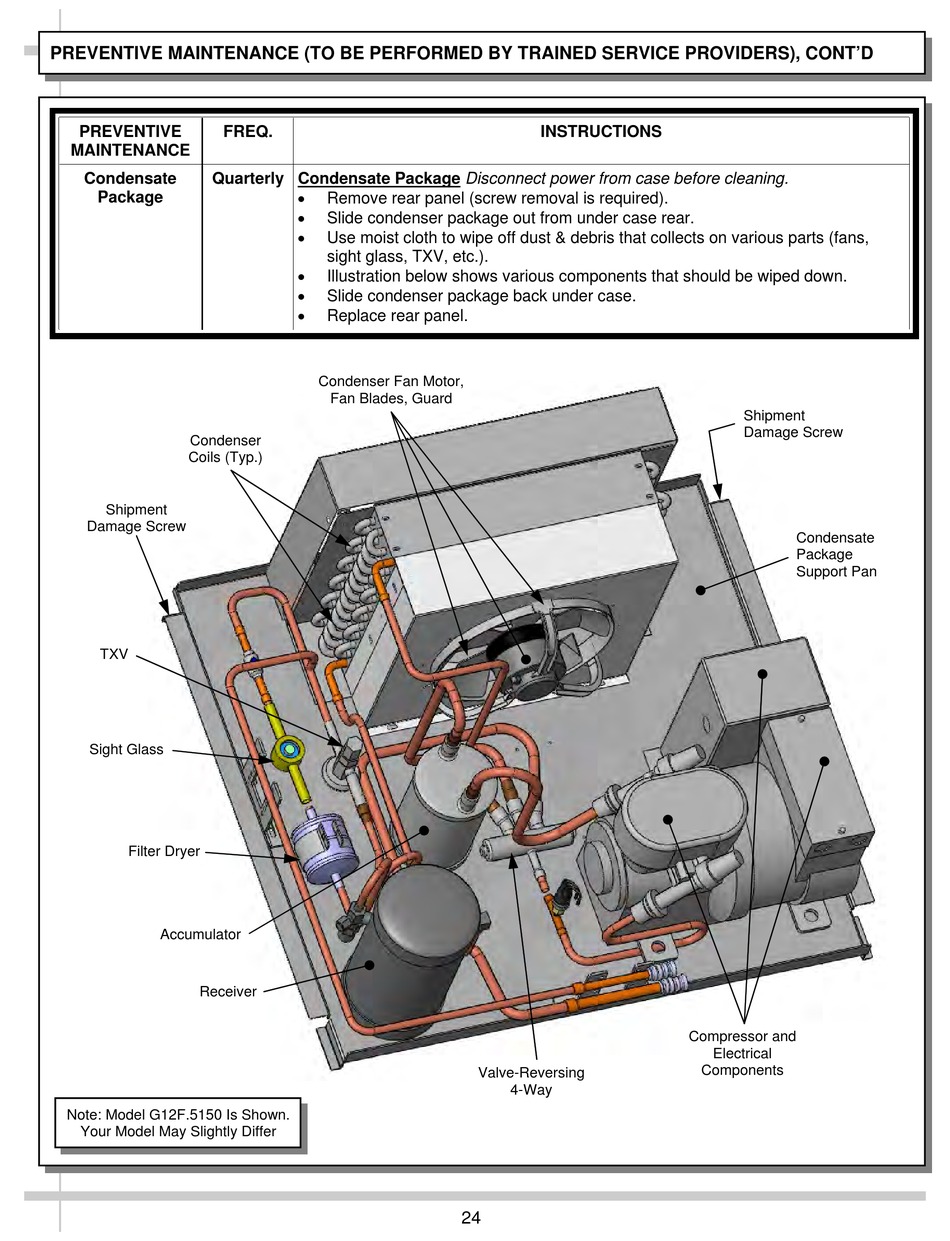

Illustration below shows various components that should be wiped down.

Slide condenser package back under case.

Replace rear panel.
Condenser Fan Motor,
Fan Blades, Guard
24
INSTRUCTIONS
Valve-Reversing
4-Way
Shipment
Damage Screw
Condensate
Package
Support Pan
Compressor and
Electrical
Components
