SIIG AV-GM0513-S1 Manual

1x2 dvi splitter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

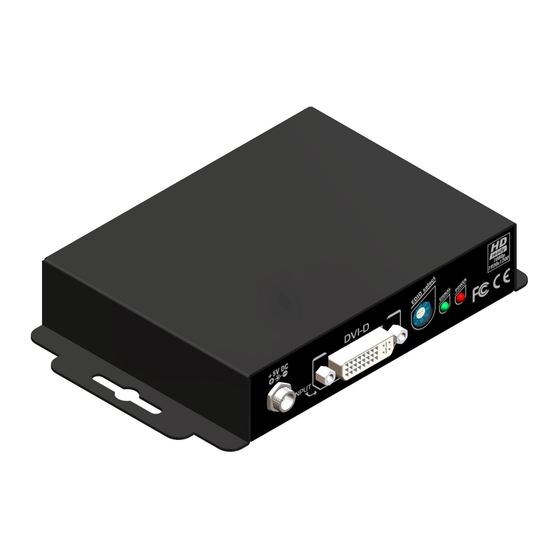

1x2 DVI Splitter
P/N: AV-GM0513-S1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV-GM0513-S1 and is the answer not in the manual?

Questions and answers

Related Manuals for SIIG AV-GM0513-S1

Summary of Contents for SIIG AV-GM0513-S1

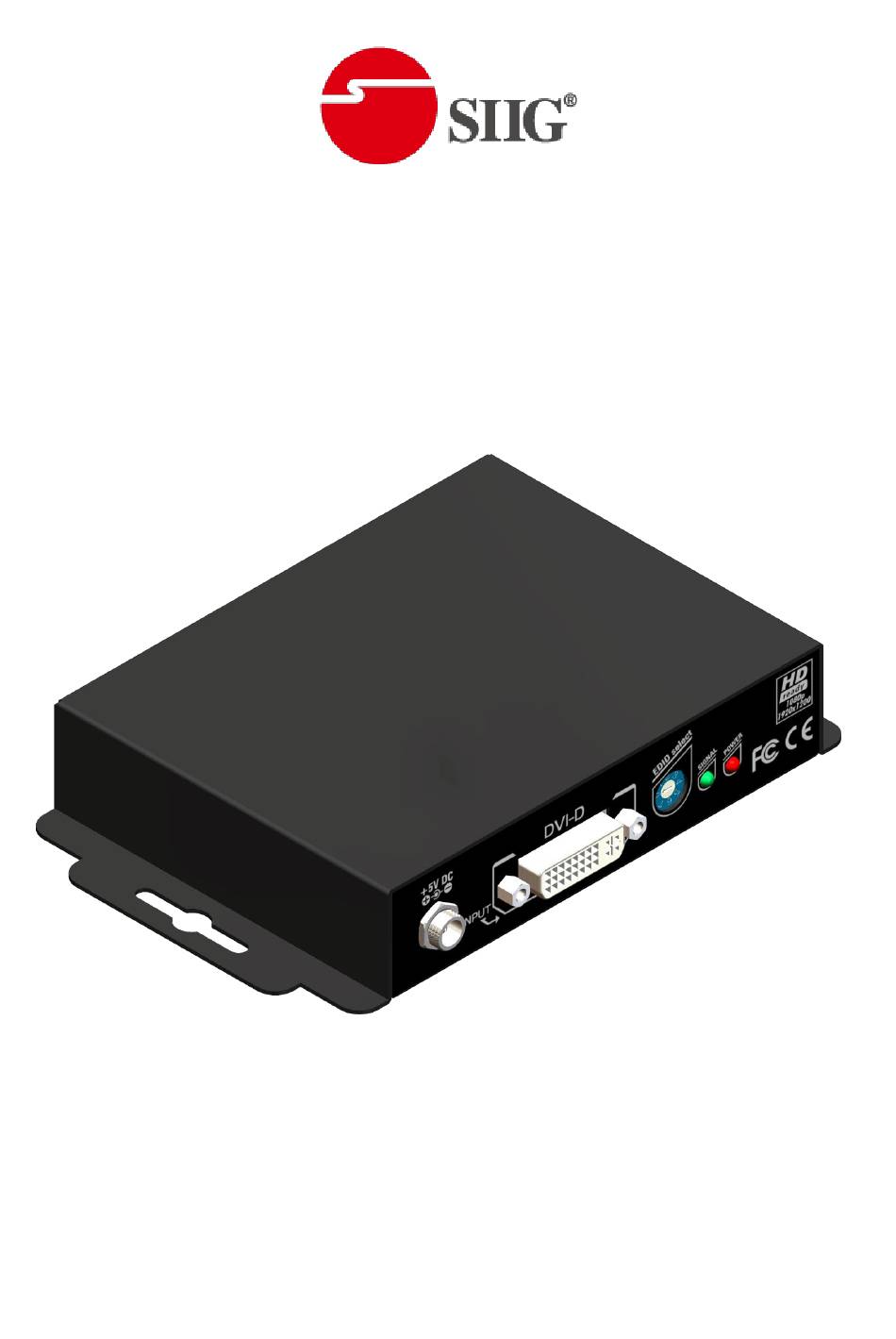

  • Page 1 1x2 DVI Splitter P/N: AV-GM0513-S1...

  • Page 2: Table Of Contents

    However, like all electronic equipments, the AV-GM0513-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

  • Page 3: Introduction

    ● Reads and remembers the EDID of displays ● Can be modified EQ with two modes ● Extends greater than 14m / 45ft of input / output DVI cable PACKAGE CONTENTS ● 1x AV-GM0513-S1 ● 1x 1x 5V DC power adapter ● 1x User Manual...

  • Page 4: Specifications

    SPECIFICATIONS Model Name AV-GM0503-S1 Technical Role of usage 1x3 Distribution Amplifier (Splitter) DVI compliance DVI 1.0 Video support Up to WUXGA [1920x1200@60Hz] & UXGA [1600x1200@60Hz] PCB stack-up 4-layer board [impedance control — differential 100Ω; single 50Ω] Input 1x DVI-I Output 2x DVI-I DVI connector DVI-I [29-pin male, digital only]...

  • Page 5: Panel Descriptions

    PANEL DESCRIPTIONS Front Panel DVI: DVI output 1 DVI: DVI output 2 Rear Panel Power: +5V DC DVI: DVI input Rotary switch: ID switch LED: Power indicator LED: Signal indicator...
  • Page 6 If you cannot boot your computer from the connected AV-GM0513-S1 due to the damaged EDID in the AV-GM0513-S1, please proceed the “Writing default EDID” and then “Recording EDID of the connected display”. This will enforce the AV-GM0513-S1 to write the EDID from display.

  • Page 7: Hardware Installation

    1. Connect a monitor, a projector or other displays with DVI inputs by a male-to-male DVI cable to DVI-OUT 1. 2. Power on AV-GM0513-S1 and then turn the rotary switch from any other default EDID to 7. 3. The green signal will start to twinkle.

  • Page 8: Warranty

    The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the AV-GM0513-S1 features and specifications is subject to change without further notice.
