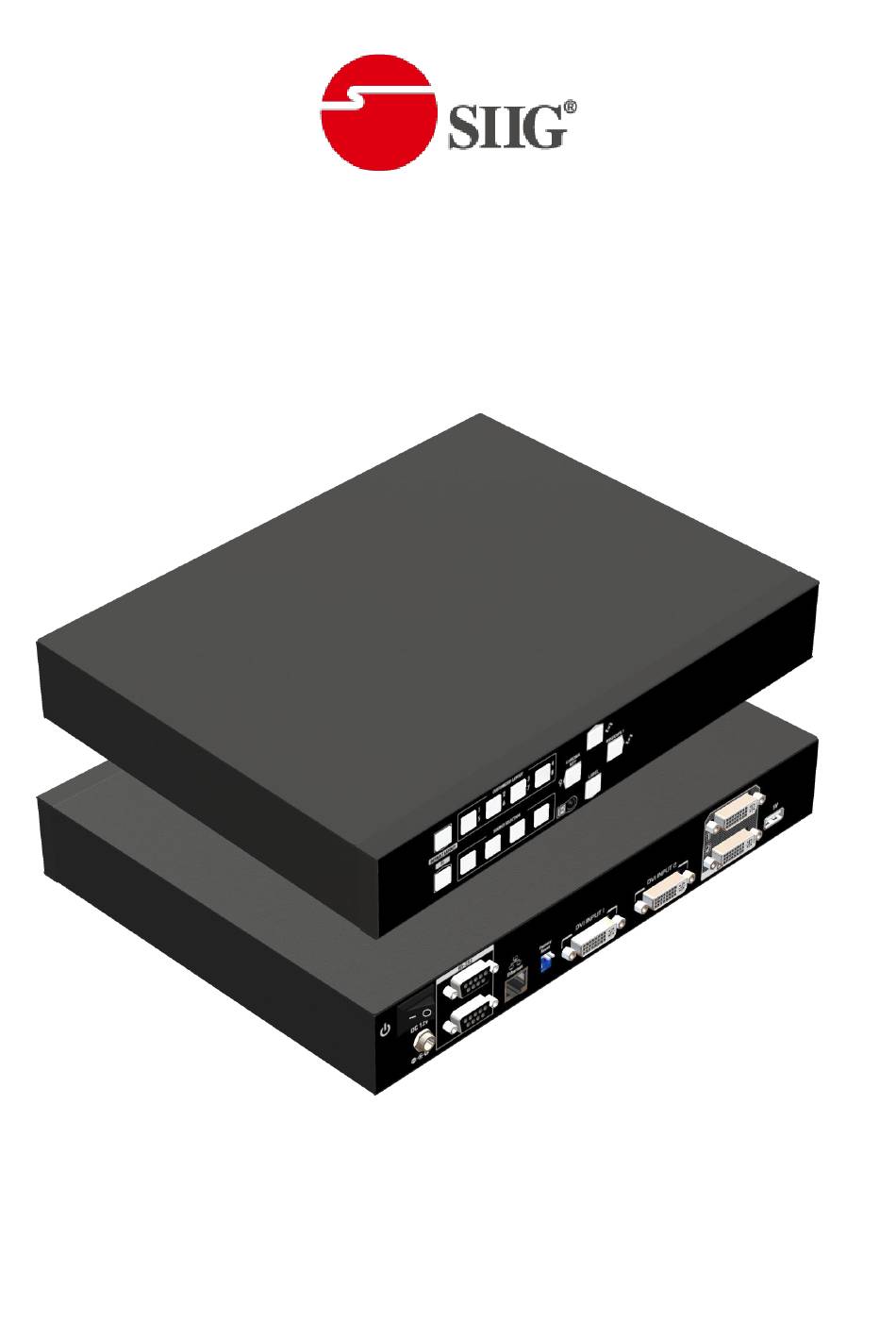

- Page 1 Dual-View Video Processor P/N: AV-GM0903-S1...
-
Page 2: Table Of Contents
However, like all electronic equipments, the AV-GM0903-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
INTRODUCTION The AV-GM0903-S1 Dual-View Video Processor provides the most flexible and cost effective solution in the market to route high definition video source from any of the two HDMI sources to the remote display at the same time. This solution is well suited for use in home theater, conference room presentation systems or other similar setting or application. -
Page 4: Specifications
SPECIFICATIONS Model Name AV-GM0903-S1 Technical Role of usage Multiplexer / video processor Background video input HDCP compliance HDCP 1.1 Video bandwidth DVI [Single-link 4.95Gbps] HDMI [2.25G to 6.75Gbps] Video support 480i / 480p / 720p / 1080i / 1080p60 /1920x1200@60 / 1600x1200@60... -
Page 5: Hardware Installation
20~90% RH [no condensation] HARDWARE INSTALLATION AV-GM0903-S1 as master 1. Connect all sources to DVI/HDMI Inputs on the AV-GM0903-S1. 2. Connect all display to DVI/HDMI Outputs on the AV-GM0903-S1. 3. Connect the +12V 5A DC power supply to the AV-GM0903-S1. CONNECTION DIAGRAM... -
Page 6: Panel Descriptions
PANEL DESCRIPTIONS Front Panel Default Layout PAP: Default layout horizontal PAP/ vertical PAP Horizontal PAP: The light of button 6 is off. Vertical PAP: The light of button 6 is always shine. Custom Layout 1-8 Custom layout 1-4: The light of button 6 is off. Custom layout 5-8: The light of button 6 is always shine. -
Page 7: Operation Approach
Input 1-2: DVI inputs Output: DVI output 2 Output: DVI output 1 USB 5V OPERATION APPROACH Method A: IR Remote Control Button Function Reserved Reserved Reserved Power on/off the device Chroma key Chroma key function on/off Label Window label on/off Default layout 1 Default layout 2 Custom layout 1... - Page 8 Method B: Software Control through RS-232 port / Ethernet port System Requirement and Precautions 1. Whenever power off AV-GM0903-S1, please stay unpowered at least 5 to 10 seconds to allow power capacitors to discharge. 2. The AV-GM0903-S1 provides software control program which runs under Microsoft Windows 98, 2000, XP, 7, 8 through the interface of RS-232 serial control.
- Page 9 Control Interface PAP Panel Display and adjust the window size, position. In this part, it has the different control tool for PAP panel setting. Control percent: 10~100% to set the PAP Panel display/control size. Stretch: Fix the size ratio when the window is resizing. ...
- Page 10 Output 2). Tool Bar list: Status: Get all information of the device and update this software state. Port Setting: Pop-up the “Port Setting” dialog, user can change the connecting way. Advance Setting: In this function, user can set the no signal color, fade in/out effect, output control, background picture, window text, input text, OSD border, rotation, EDID and factory reset.
- Page 11 Output Control Setting: In this function, user can determine to turn on or off the HDMI mode and audio, and also can select the configuration of background picture. Rotation: For Rotation function, only window 1 can be applied.
- Page 13 EDID: User can learn EDID from default or display. In addition, it also provides advance EDID function for user to edit, save and read.
- Page 14 Factory Reset: Click the button to do factory default reset. This default reset process will take about 10~15 seconds and it will be initialized all setting to original system state. Chroma Key: It can turn on/off the Chroma key function and adjust the parameters of Chroma key.
- Page 15 Crop function: This function is used to crop or clip an image. In the Preview Crop, it can preview the range and effect of video crop with the adjustment. Crop Enable: Enable crop function Array Enable: Enable array parameter ...
- Page 16 Percent Enable: Allows user to adjust video layout size by percentage concept. The setup diagram is shown as below. Pixel Enable: Allow user to adjust video layout size by pixels. The video crop by pixel and percent are almost same. The differences come from the adjustment ratio.
- Page 17 Output Resolution: Set the output resolution. When setting the different resolutions, the parameters of PAP and custom layout (position and size) will accordingly change. Default layout and Custom layout: Default layout: Use factory preloaded video layouts. Custom layout: Use custom pre-saved video layouts ...
- Page 18 Window selection and input mapping For each display window, user can assign arbitrary video input here. Window setting In here, you can adjust the size, position or other settings of the specified window.
- Page 19 Method C: Firmware Update 1. Unfold the Video Processor folder and choose the firmware update executable file. The firmware update window shows up as below. 2. Please select the correct COM port or click button to connect the device. 3. Click button to do firmware update.
- Page 20 4. If you want to change OSD (window label) font, please click “OSD Font Update” window and click button to change OSD font. 5. If you want to change the boot screen, please click “Splash Screen Update” window and click the button to select the graph which you want to write into the device.
-
Page 21: Warranty
The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the AV-GM0903-S1 features and specifications is subject to change without further notice.
