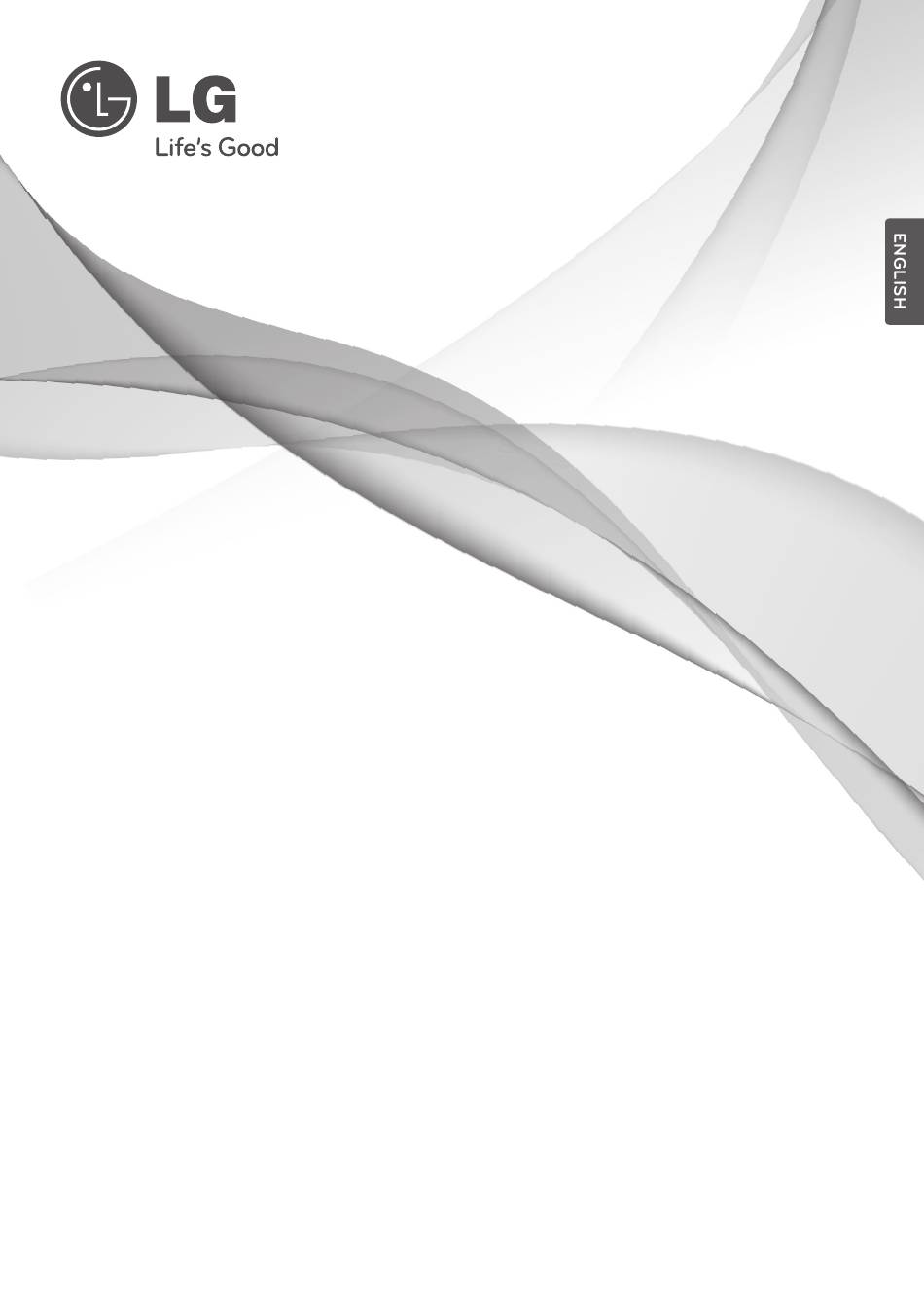

- Page 1 OWNER’S MANUAL HOM-BOT 2.0 Before using, please carefully read the Safety Precautions pages to allow for safe operation of the product. After reading the operation manual, please keep it in an easily accessible location. VR6170LVM VR6171LVM www.lg.com P/No.: MFL67021502...
- Page 2 FEATURES Images of the ceiling and floor are obtained from the sensors of the upper and lower cameras, and through this, the location of HOM-BOT 2.0 will be confirmed, therefore, elaborate cleaning can be accomplished for every part of the room.
-
Page 3: Table Of Contents
Overview Product specifications Open source software notice METHOD OF USE How to install the home station How to turn the HOM-BOT 2.0 power supply on & off How to start and stop cleaning 16~17 How to charge the battery 18~19... -
Page 4: 2~4 Safety Precautions
If the power cord is broken, do not plug it in. Take the product to an LG Electronics Authorised service repairer. Do not place the home station and Do not use the HOM-BOT 2.0 when candles or fragile objects are placed the HOM-BOT 2.0 near a heating... - Page 5 SAFETY PRECAUTIONS WARNING Do not operate the HOM-BOT 2.0 on Do not operate the HOM-BOT 2.0 in a room where a child is sleeping. narrow and high furniture such as a wardrobe, refrigerator, desk, table, etc. Doing so can cause injury or product damage.
- Page 6 Otherwise, the skins may be injured. Check the following items before use: • Use the HOM-BOT 2.0 at home only. Using it in the office or for any other purposes can cause failure and irreparable damage to unit. • Empty the dust bin after if fills up.
-
Page 7: Included With Product
INCLUDED WITH PRODUCT HOM-BOT 2.0 Remote controller Home station s Figures can be different from actual objects. www.lg.com Quick guide Dust bin filter (spare) Nozzle for tatami floor Operation manual Brush for cleaning filter Mop plate Ultra microfiber mop (2 pieces) (option) - Page 8 PARTS DESCRIPTION - HOM-BOT 2.0 Plan view Manipulation button Dust bin cover button Dust bin cover Status indication lamp Upper camera sensor Detecting sensor of home station & receiving sensor of remote controller Front view Ultrasonic sensor Obstacle detecting sensor window...
- Page 9 PART DESCRIPTION – HOME STATION / DUST BIN Home station Remote controller holder Charging terminal Reset button Power cord fixing hook Dust bin Dust bin handle Dust bin cover Suction port cover Sponge filter Dust bin cover opening button HEPA filter s Figures can be different from actual objects.
- Page 10 • When the product is attached to the home station and when the timer is set, spot cleaning mode cannot be selected. • Press the HOMING button to move the HOM-BOT 2.0 to the home station for battery charging. HOMING •...
- Page 11 BUTTON FUNCTIONS – REMOTE CONTROL ※ To turn on/off the power supply, use START/STOP button on the top of HOM-BOT 2.0. Start Charging The HOM-BOT 2.0 will start The HOM-BOT 2.0 will move to the cleaning home station for charging.
-
Page 12: Display Status Information
• Once the cleaning mode is selected, it will be maintained even when the power is turned off. • To cancel the timer setting, press the STOP button on the remote control or the START/ STOP button on the HOM-BOT 2.0. -
Page 13: Before You Start
Therefore, use it as far away as possible from such lamps. – + • If the remote control is far from the HOM-BOT 2.0 when activated, it may fail to operate properly. Use the device within 3 m (9.84 ft) of the HOM-BOT 2.0 if possible. -
Page 14: Overview
Warning When HOM-BOT 2.0 is operated with the cover of the dust bin open, it can cause an injury or serious damage to the product. -
Page 15: How To Install The Home Station
HOM-BOT 2.0 will not return to the station to charge automatically. Warning Do not operate the HOM-BOT 2.0 if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. To avoid hazard, the cord must be... -
Page 16: How To Turn The Hom-Bot 2.0 Power Supply On & Off
- If the power is not turned on or if there is no display but only the “Ting” sound, put the HOM-BOT 2.0 on the home station. - If there is no change even when HOM-BOT 2.0 is attached to the home station, press the reset switch located on the rear side of the home station for 3 seconds... -
Page 17: 5 How To Start And Stop Cleaning 16~17
※ If the HOM-BOT 2.0 is set to start cleaning at a location away from the home station, put the device on a flat floor in order to prevent a malfunction of the obstacle detecting sensor. In addition, start cleaning from a location where there are not any obstacles such as curtains or walls within 30 cm (11.8 in) of the... -
Page 18: How To Charge The Battery
※ HOM-BOT 2.0 will automatically return to the home station to recharge when it's left uncharged or without cleaning order for more than 10 minutes. ※ Do not operate HOM-BOT 2.0 on tables or desks. It may result in an injury or damage to the product when it starts to search for home station after 10 minutes. - Page 19 Middle Charging is (Under charging) required ※ If there is still an area to be cleaned when the HOM-BOT 2.0 The status indication lamp while the robot is charged is returned to the home station for charging, the selected (In spatial expand mode) cleaning mode is displayed.
-
Page 20: Cleaning Modes
CLEANING MODES Zigzag Cleaning With zigzag cleaning, total inside of the house will be cleaned with the repetition of zigzag traveling. If rapid cleaning is desired, use zigzag cleaning. When pressing ‘ZIGZAG’ button of remote controller, zigzag cleaning will be started while zigzag cleaning icon is indicated at the state indication lamp. - Page 21 The interior space will be cleaned by the HOM-BOT 2.0 as it is being moved to the front, rear, or rotated to the left and right side according to the input of the directional buttons.
-
Page 22: Timer Cleaning
• When the set up time elapses, cleaning will start automatically. • Use the timer setting when the HOM-BOT 2.0 is attached to the home station. If the timer is set while HOM-BOT 2.0 is away from the home station, the cleaning time can be shortened. -
Page 23: Mop Cleaning (Option)
For mop cleaning, mount the mop and mop plate to the HOM-BOT 2.0 according to the following instructions: 1. Attach the ultra microfiber mop to the Velcro Mop plate of the mop plate as shown in the figure. -
Page 24: Location Search Function
LOCATION SEARCH FUNCTION HOM-BOT 2.0 remembers its location while cleaning. If the user moves the HOM-BOT 2.0 while it is operating, it will search its location with the location search function to continue from previous location. When the user removes any abnormal condition of HOM-BOT 2.0 or moves the location arbitrarily, the... -
Page 25: Cleaning The Dust Bin
• After cleaning, always mount the dust bin filters (HEPA filter, sponge filter) to the dust bin. If they are not mounted, dust may enter the HOM-BOT 2.0 interior and cause product failure. • After cleaning the dust bin, make sure to start the operation with the dust bin installed. -
Page 26: Cleaning The Dust Bin Filter
Sponge filter HEPA filter • In order to maintain the performance of the HOM-BOT 2.0, the HEPA filter should be cleaned with a cleaning brush or vacuum cleaner at least once a week, and should be washed under running water at least once a month. -
Page 27: Cleaning The Brush
CLEANING THE BRUSH The brush, located on the bottom of the HOM-BOT 2.0, helps with the suction of foreign objects. Perform the following steps to clean the brush: ※ Please make sure to remove the dust bin before flipping the main body. -
Page 28: Cleaning The Sensor/Charging Terminal
HOM-BOT 2.0, regularly clean the sensors and charging terminal as follows: 1. Lay a smooth cloth on the floor, overturn the HOM-BOT 2.0 and put it on the cloth. ※ Please make sure to remove the dust bin before flipping the main body. -
Page 29: Cleaning The Side Brush
2. Turn off the power supply by pressing the START/STOP button on the HOM-BOT 2.0 for two seconds. 3. Place the HOM-BOT 2.0 at the end of a table to make cleaning the side brush easier. Make sure that the HOM-BOT 2.0 is not in danger of falling. -
Page 30: Cleaning The Ultra Microfiber Mop (Option)
1. Separate the ultra microfiber mop from the mop plate. 2. Carefully clean it with water. 3. Use the mop only after allowing it to dry completely in a sunny, well-ventilated area. • To avoid product malfunction, only use the ultra microfiber mop provided with the HOM-BOT 2.0. -
Page 31: Troubleshooting
Move the HOM-BOT 2.0 on to the flat floor. • Is any foreign material wound around the wheel? s Lay smooth cloth on the floor, overturn the HOM-BOT 2.0, and put it on the cloth. Remove foreign material by confirming the wheel. - Page 32 When remaining amount of battery is almost nil, the voice, “ バッテリーが不足しています ”, is generated. • Initiate battery charging of HOM-BOT 2.0 by moving it to the home station. s If HOM-BOT 2.0 is attached to the docking station, it will start the recharging with the recharging start melody.
- Page 33 When the voice, “ ”, is announced When the HOM-BOT 2.0 detects that the brush is not functioning properly, you will hear the message “ 回転ブラシを確認してください ” Lay a smooth cloth on the floor, overturn the HOM-BOT 2.0, and place it on the cloth.
-
Page 34: Before You Call For Service
(Page 13) Wipe the charging terminal with a dry cloth. Press the reset button on the back of the home station for 3 seconds while the Hom-Bot 2.0 is attached to the home station. (Page 14) Automatically starts searching HOM-BOT 2.0 will automatically return to the home station to recharge for home station. - Page 35 It can cross over a maximum 1.0cm threshold. cover? Is there a risk that it can fall HOM-BOT 2.0 has a "Cliff Detection Sensor" and can detect a drop from the stairs or a high level? point up to 3 cm high and will detour around it.
-
Page 36: Product Specifications
PRODUCT SPECIFICATIONS HOM-BOT 2.0 Item/Model VR6170LVM, VR6171LVM Φ 360 mm × 90 mm External Dimensions Weight 3.2 kg Use Time Approx. 100 minutes (Based on general wooden floor) Noise Level 48 dB(A) Charging Time 3 hours Main Functions Obstacle detection... -
Page 37: Open Source Software Notice
REFERENCE ITEMS Open source software notice To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com. In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.
