NOmENCLATurE
ExpLANATiON OF FEATurES (CONTiNuEd)

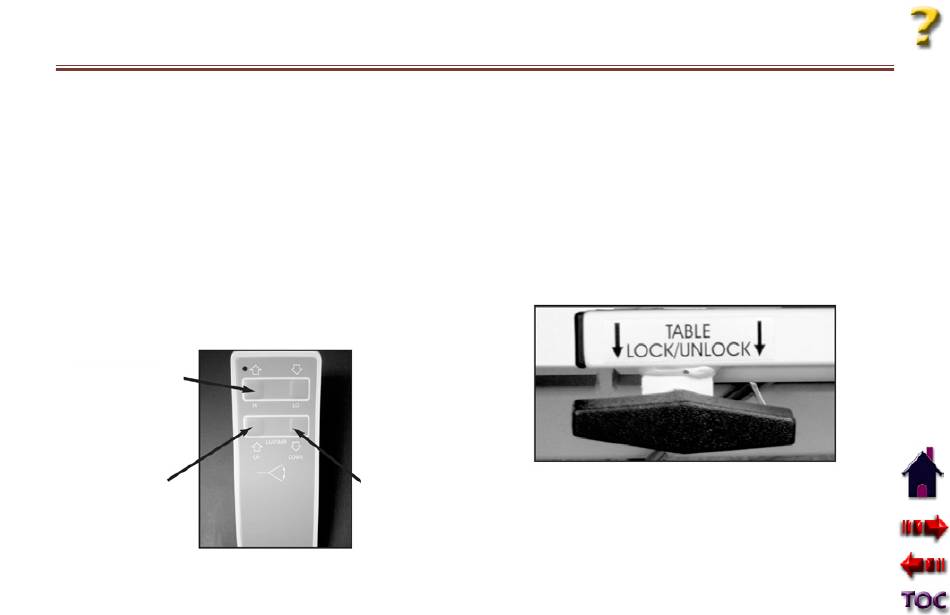

Table Adjustment Control
A. High/Low Adjustment
You can vary the height of the table from 23 to 35 inches using
buttons marked Hi-Lo.
B. Lumbar Section Up/Down Adjustment
Upward and downward movement of the lumbar section of
the table is controlled by the lower two buttons. The lumbar
section of the table moves downward 20° and moves upward
25° from neutral.
TABLE HEIGHT
LUMBAR END
UP
Table Lock-Unlock
The lumbar section of the table must be locked in the closed
position during patient set-up. It must be unlocked for lumbar
traction. If the table is locked when attempting to start lumbar
traction, a warning message will appear on the TCP. The
treatment will not start until the table is unlocked. The lumbar
section of the table must be locked during cervical traction for
the traction to function. Turn the table Lock/Unlock Handle as
marked to unlock the lumbar section of the table.
LUMBAR
END DOWN
