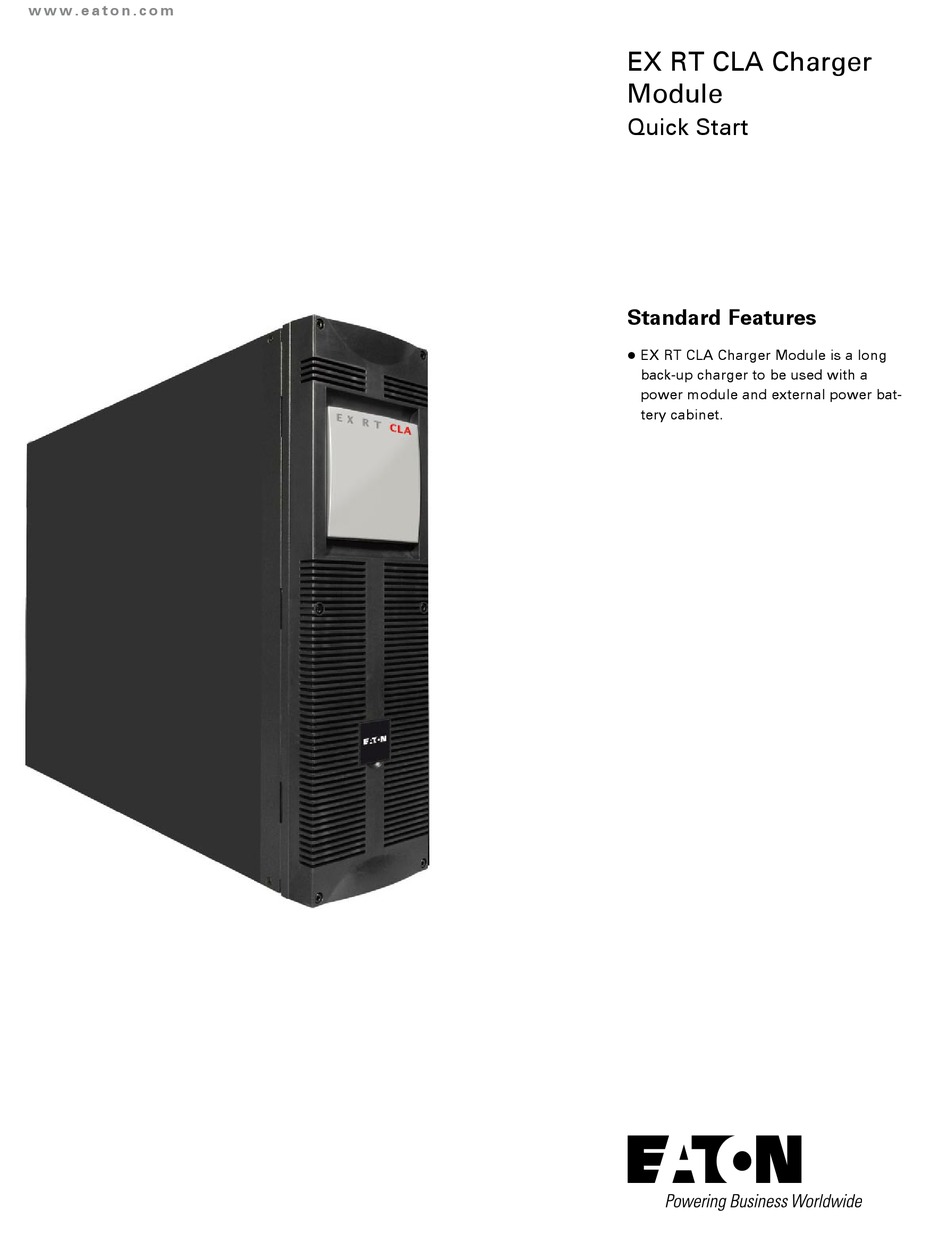

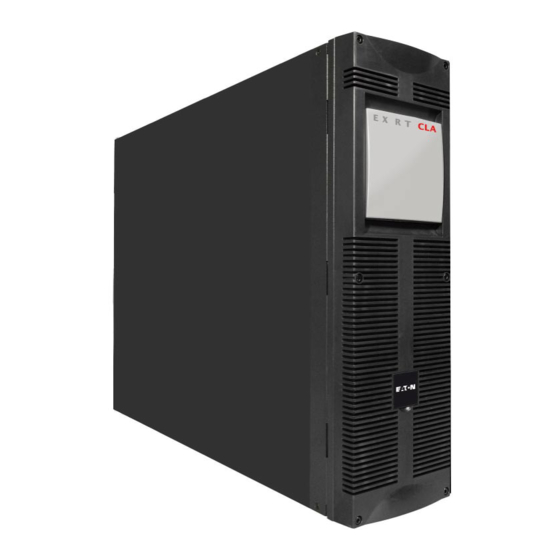

- Page 1 . e a t o n . c o m EX RT CLA Charger Module Quick Start Standard Features EX RT CLA Charger Module is a long back-up charger to be used with a power module and external power bat- tery cabinet.
- Page 3 Total battery voltage: 240 V DC. The battery capacity must be set within the UPS (5 Ah increment, see UPS Personalization section 3.2.). STEP 1 EX RT CLA Charger Module Unpacking and Parts Check CLA Module Box Contents CLA Module...
- Page 4 STEP 2 EX RT CLA Charger Module Tower Configurations Follow the numerical sequence to assemble the footer supports as shown. CLA Charger Module OF F Power Module 86-86000-04 B01 - Page 4...
- Page 5 STEP 3 EX RT CLA Charger Module Rack Configuration Prepare the front panel logo and LCD display for rack orientation, Stack-up sequence in Rack configuration Apply to all modules. Power Module shown. E X 1 1 R T 1. EX RT CLA MODULE...
- Page 6 STEP 4 EX RT CLA Charger Module Connections System Connections with Battery Cabinet Connection Diagram (inside CLA Module) DC Input cable cross-section (not provided): 6~10 AWG solid or stranded wire. � Connect the AC input cable of the CLA charger module to the utility AC input: AC Input cable cross-section (not provided): 14~16 AWG solid or stranded wire.
- Page 7 86-86000-04 B01 - Page 7...
- Page 8 86-86000-04 B01...
