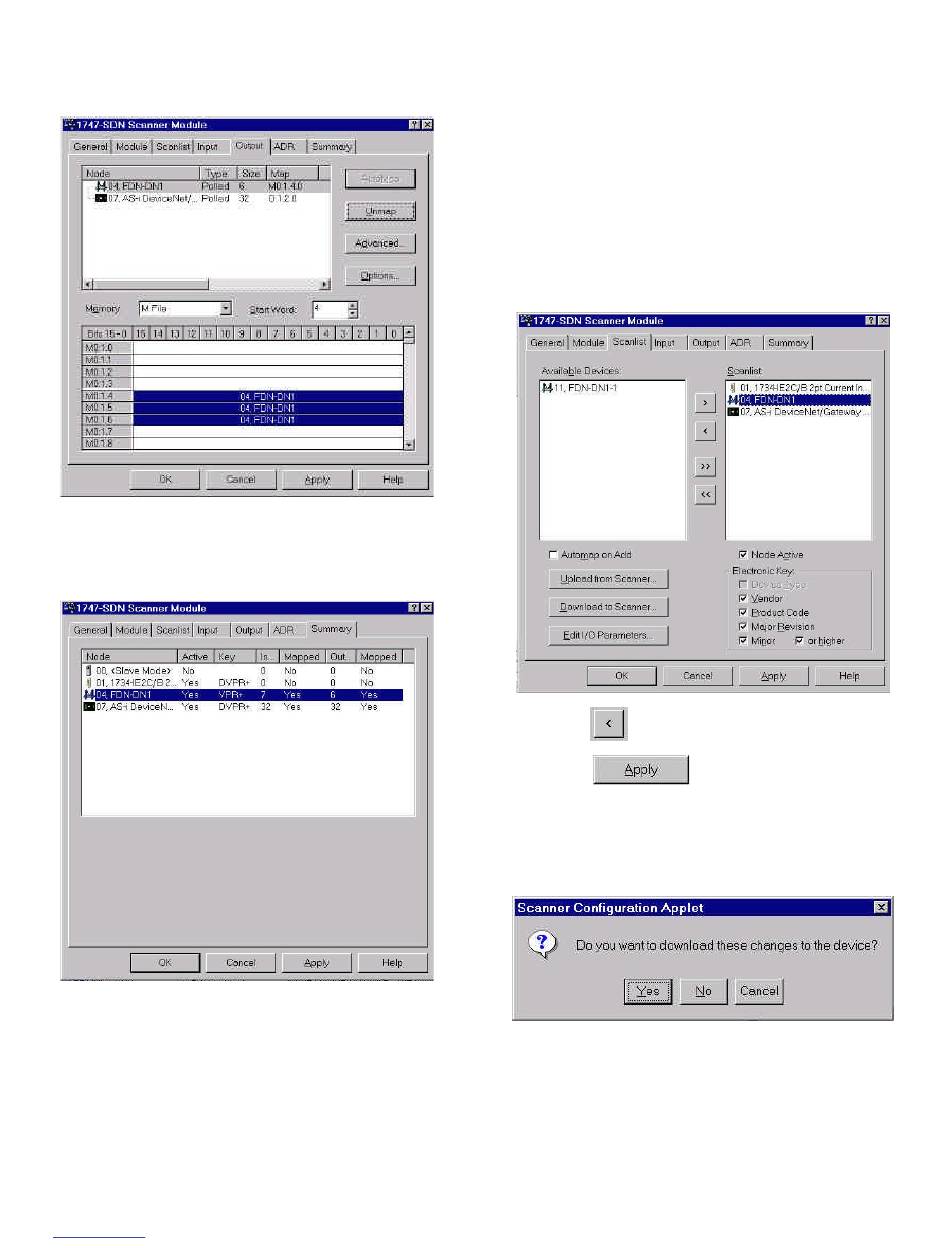

14. Output Data Mapping
Output data mapping is done the same way as inputs.
Review node I/O map summary data and press "Apply" and
download I/O map to the scanner.
15. Repeat the same to map node B on network B.
www.turck.com • 1-800-544-7769 • Fax: (763) 553-0708 • TURCK • Minneapolis, MN 55441
REMOVE NODE FROM SCAN LIST
To remove node from the scan list:
1. Turn "PLC function key" to "PROG" position,
2. Start RSNetWorX
3. Go online
4. Right-click on scanner icon and select "Properties"
5. Press on "Scanlist" tab and highlight node 4
6. Press button to remove node from the scan list
7. Press
change to the scanner
8. Click YES to confirm removal of the node from the
scan list.
button to download the
7
