14.2 VLAN Group Settings

This screen shows the VLAN groups created on the Zyxel Device. Click Network Setting > VLAN Group to
open the following screen.

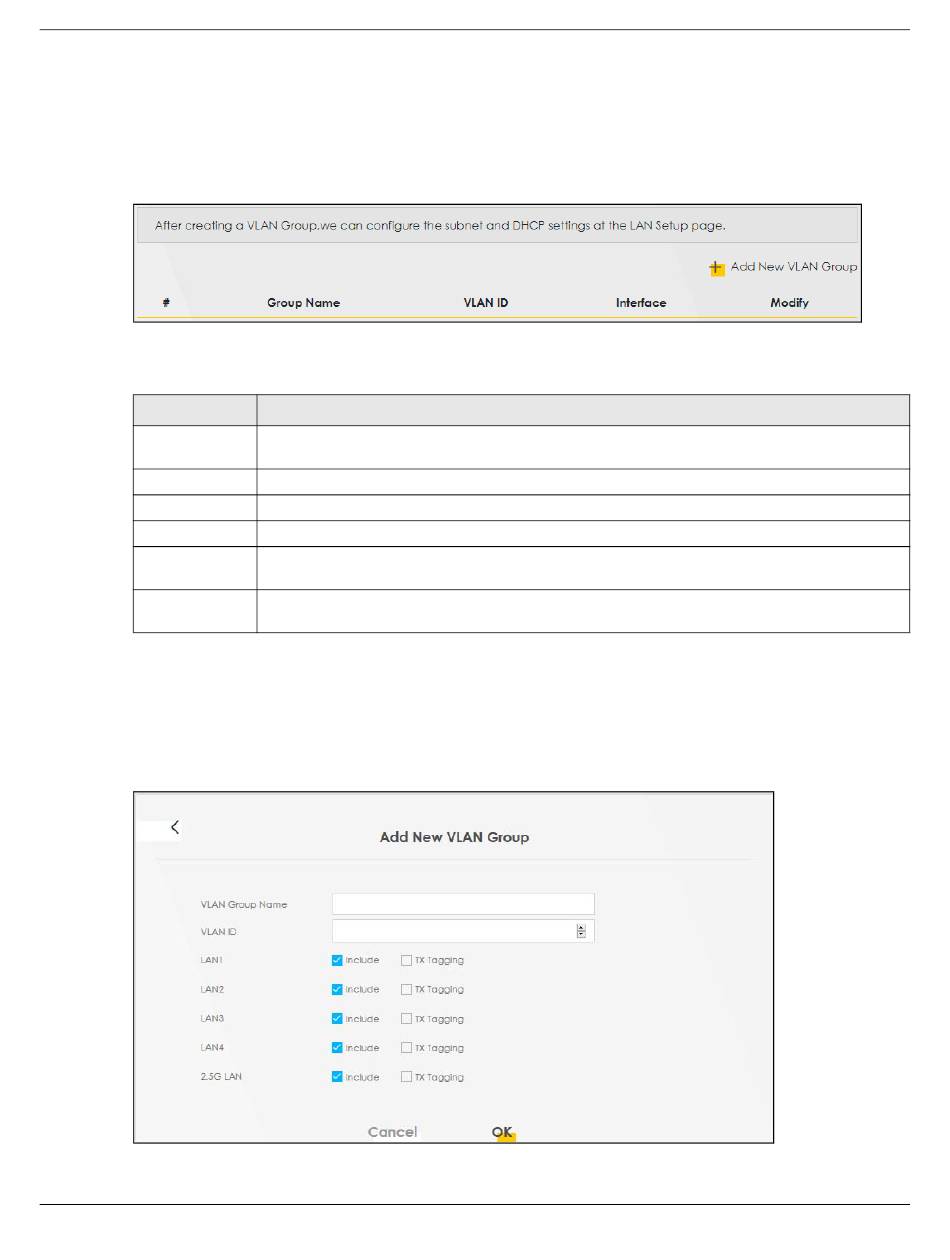

Figure 118 Network Setting > VLAN Group
The following table describes the fields in this screen.
Table 73 Network Setting > VLAN Group
LABEL
Add New VLAN
Group
#
Group Name
VLAN ID
Interface
Modify

14.2.1 Add/Edit a VLAN Group

Click the Add New VLAN Group button in the VLAN Group screen to open the following screen. Use this
screen to create a new VLAN group.
Figure 119 Add/Edit VLAN Group
Chapter 14 VLAN Group
DESCRIPTION
Click this button to create a new VLAN group.
This is the index number of the VLAN group.
This shows the descriptive name of the VLAN group.
This shows the unique ID number that identifies the VLAN group.
This shows the LAN ports included in the VLAN group and if traffic leaving the port will be tagged
with the VLAN ID.
Click the Edit icon to change an existing VLAN group setting or click the Delete icon to remove
the VLAN group.
