ZyXEL Communications EX5510-B0 Quick Start Manual

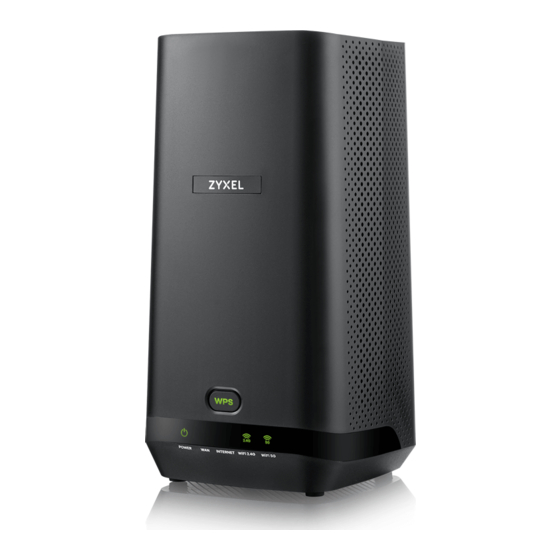

EX5510-B0
Dual-Band Wireless AX Gigabit Ethernet Gateway
Quick Start Guide
Step 1
Hardware Installation
3
POWER
On - Power is on.
Green
Blinking - Starting up.
POWER
Red On - System failure.
Blinking - Upgrading firmware.
Green On - Internet is ready.
Blinking
- Transmitting/receiving Internet data.
INTERNET
Red On - Attempted to get an IP address, but failed.
Go to the Quick Start Wizard.
Step 2
WiFi / WiFi6 Connection - A or B
A: Using SSID
1
2
WiFi6
1
2
1/2
1
WAN
xDSL/Cable/
Fiber modem
WiFi Network Name (SSID): ZyxelXXXXX
WiFi Password : XXXXXXXXXX
WiFi
SSID
ZyxelXXXXX
ZyxelXXXXX
Password OR
WiFi Password
XXXXXXXXXX
XXXXXXXXXX
Package Contents
EX5510-B0 Mounting
Mounting Kit
x2
Screw Anchors Tapping Screw
M4x30 mm
EN Use the Ethernet cable to connect the WAN port to an xDSL/Cable/Fiber modem with
1
Internet access.
2 Connect a computer to the LAN port using an Ethernet cable (optional).
3 Connect the power adapter.
Internet
EN
1
2
Power Ethernet
Base Adapter Cable
x2
Quick Start
Guide
65-020-551001B
