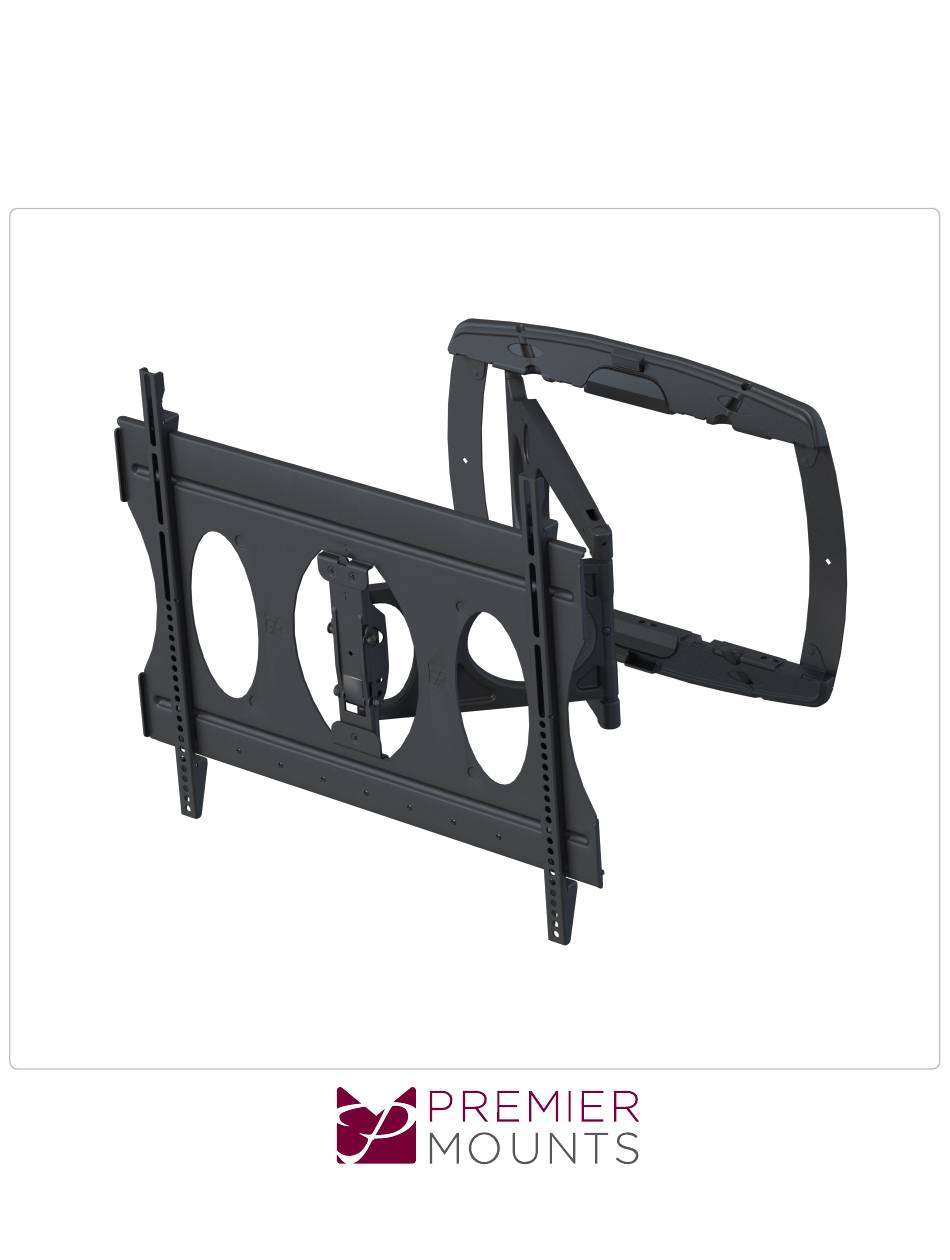

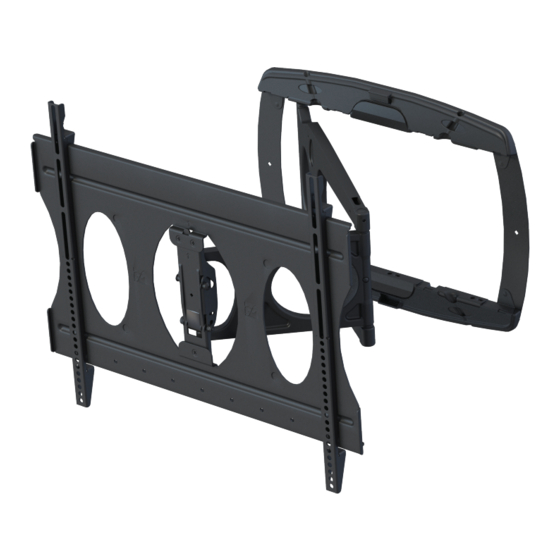

- Page 1 AM100 Installation Guide Low-Profile Ultra-Slim Swingout Mount for Flat-Panels www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 1321 S. State College Blvd., Fullerton, CA 92831 USA...
-
Page 2: Included Components
AM100 Maximum Flat Panel Weight: 100 lb. / 45.5 kg. Installation Guide Included Components Wall Mount (Qty 1) Universal Washers Finned Anchor 5/16” x 3” Lag Bolts Green Level (Qty 4) (Qty 4) (Qty 1) (Qty 4) 5/16” Flat Washers... - Page 3 AM100 Installation Guide Prior to initial step 1 of the installation, your AM100 can easily have the main “swing left” pivot point of the main swing out arm moved to either the center, left or right of the mount by...
- Page 4 AM100 Installation Guide Using a suitable stud-finder device for frame walls, mark the position of the stud centers. Measure the desired height of the center of the screen and mark it. Take the thick cardboard mounting template supplied and place the it over the mounting studs with the screen center facing up.
- Page 5 AM100 Installation Guide Using a 1/4” drill bit, drill pilot holes minimum 2” (50mm) deep into the four marked mounting points on the wall surface. For solid concrete wall construction, the supplied plastic wedge anchors are recommend to be used with the 5/16 x 3”...
-
Page 6: Concrete Wall
AM100 Installation Guide Raise the AM100 assembly so the mounting slots are Wood Stud over the four drilled mounting holes. Confirm mount level with spirit level and secure the mount to the wall surface with the four each 5/16 x 3” lag bolt and 5/16”... - Page 7 AM100 Installation Guide Re-install the front wall arm plate to the arm with the three M5 flat head screws you set aside earlier. Confirm screws are fully seated and tight. Take the plastic depth straw supplied and confirm the overall “safe”...
- Page 8 AM100 Installation Guide Place the display face down on a smooth flat surface. Place the left and right mounting brackets over the four mounting points on the rear of the display arrow pointing up to the top of the display, making sure the brackets are lined up with the center top to bottom on the display.
- Page 9 AM100 Installation Guide With the upper and lower security screws loosened on each bracket (two people recommended) raise the display and place the top hook of the bracket over the receiver plate on the wall mount. Allow the lower end of the bracket to lay flat against the mating plate on the mount.
- Page 10 AM100 Installation Guide Tilting of the display on the mount is easily accomplished by placing one hand on top of the display edge center and one hand on the bottom of the display edge center and gently pulling out on the top edge to the desired tilt angle. No lock- ing of the set tilt angle is required as the mount has built-in friction control.
- Page 11 AM100 Installation Guide Install the upper and lower “push on” plastic “beauty covers” to the upper and lower wall plates. Reinstall the upper and lower plastic cable covers to the mounts main swing arm. Installation complete www.mounts.com | North America 800.368.9700 | International +1-714-632-7100...
- Page 12 Premier Mounts intends to make this manual accurate and complete. However, Premier Mounts makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product.
