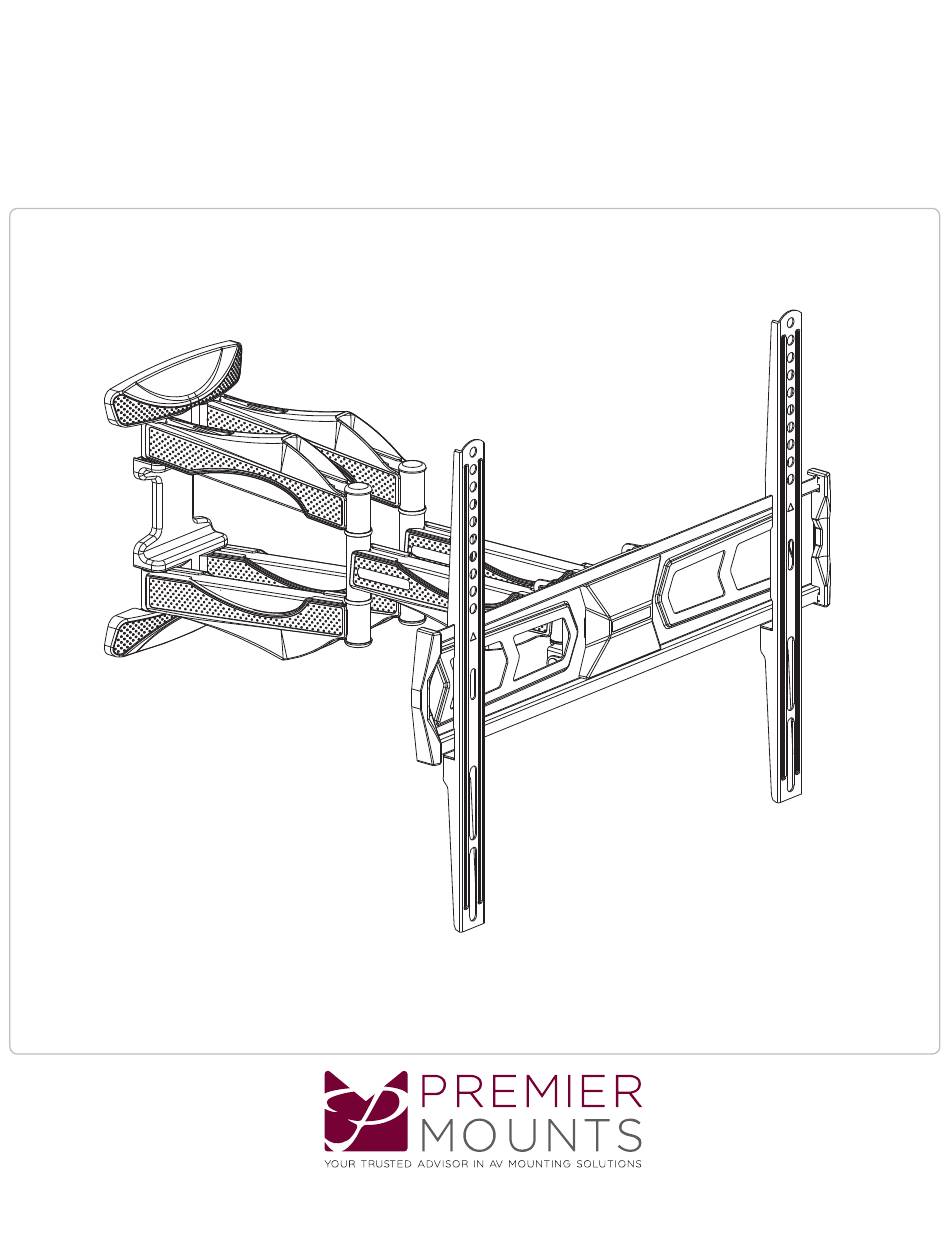

Page 1: Installation Guide
AM65 Installation Guide www.premiermounts.com | North America 800.368.9700 | International +1-714-632-7100 1321 S. State College Blvd., Fullerton, CA 92831 USA... - Page 2 AM65 Maximum Flat Panel Weight: 65 lb. / 29.5 kg. Installation Guide Included Components: M4 X 12mm M4 X 25mm M5 X 12mm M5 X 25mm M6 X 12mm M6 X 25mm M8 X 16mm (Qty 4) (Qty 4) (Qty 4)
- Page 3 AM65 Installation Guide Wood Stud Mounting 1) Use a stud finder to find the wood stud behind the wall. 2) With a pencil mark the wood stud location. 3) Place the mount over the wood stud location and mark four (4) mounting locations.
- Page 4 AM65 Installation Guide Attaching the Display Brackets For display’s with a curved back or obstruction M8 Screws M5 & M6 Screws M4 Screws Install the display brackets to the display using four (4) universal washers, four (4) spacers, and four (4) M4, M5, M6 or M8 screws depending on the display.
-
Page 5: Cable Management
AM65 Installation Guide Wrench 1) Tighten or loosening the screw nuts on the head of the mount to adjust tilting function. 2) Tighten or loosening the screw nuts on the head of the mount to keep level. Cable Management Cable management clips Cable routing access points www.premiermounts.com | North America 800.368.9700 | International +1-714-632-7100... - Page 6 Premier Mounts intends to make this manual accurate and complete. However, Premier Mounts makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product.
