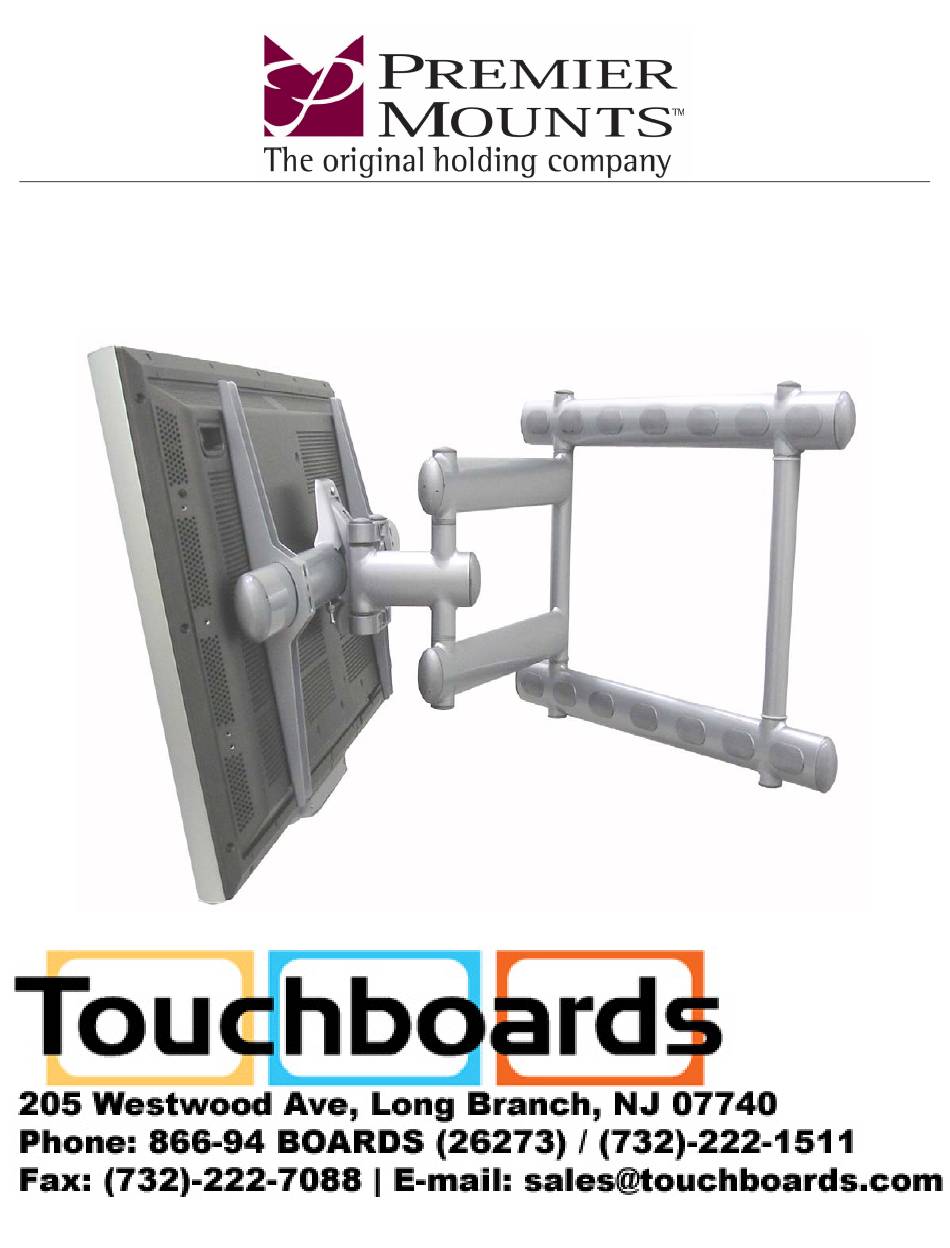

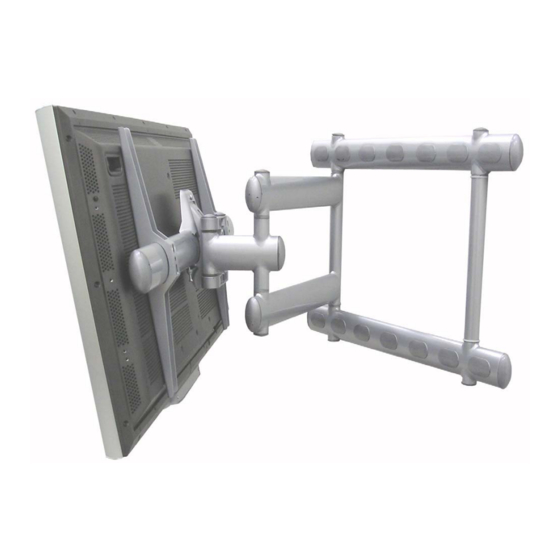

- Page 1 INSTALLATION MANUAL Universal Swingout Arm Premier Mounts 3130 E. Miraloma Avenue Anaheim, CA 92806 Phone: (800) 368-9700 Fax: (800) 832-4888 mounts@mounts.com www.mounts.com IN-AM3.R3...
-
Page 2: Table Of Contents
Securing the Display ............................- 13 - Tilt Positioning ...............................- 14 - Cable Access Holes ............................- 14 - Technical Specifications ..........................- 15 - Warranty ................................- 16 - Contact Premier Mounts ..........................- 16 - Notes ................................- 16 - Page - 2 - Installation Manual... -
Page 3: Warning Statements
Warning Statements PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY WARNING: PREMIER MOUNTS PRODUCT FOR PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY UNAUTHORIZED ATTACHMENTS OR MODIFICATIONS, AND IS NOT RESPONSIBLE FOR ANY DAMAGES, CLAIMS, DEMANDS, SUITS, ACTIONS OR CAUSES OF ACTION OF WHATEVER KIND RESULTING FROM, ARISING OUT OF OR IN ANY MANNER RELATING TO ANY SUCH USE, ATTACHMENTS OR MODIFICATIONS. -
Page 4: Parts List
This wall mount is shipped with all proper installation hardware and components. Make sure that none of these parts are missing and/or damaged before beginning installation. If there are parts missing and/or damaged, please stop the installation and contact Premier Mounts (800-368-9700). - Page 5 (Qty 8) (Qty 8) M4 x 16 M6 x 20 (Qty 8) M4 x 25 (Qty 8) M6 x 30 (Qty 8) M5 x 12 M6 x 45 (Qty 8) (Qty 8) M5 x 16 M8 x 20 (Qty 8) (Qty 8) M5 x 20 (Qty 8)
- Page 6 Nylon spacers and flat washers’ actual size NOTE: The nylon spacers may be stacked to achieve proper spacing. 9/16" Nylon spacers 1/4" Nylon spacers (large) (Qty 8) (Qty 8) 1/2" Nylon spacers Nylon sleeves (large) (Qty 8) (Qty 12) 5/16" Flat washers (metal) (Qty 8) 1"...
- Page 7 Thread Depth Indicator Insert the thread depth indicator (supplied) through the thread inserts found on the back of the flat panel to make sure the inserts measure the same full depth and mark it (Figure 1). Locate the correct diameter screw for the thread insert. Compare your marking to the screws (supplied). If your selected screw is longer than the marking on the thread depth indicator, DO NOT USE this screw.
-
Page 8: Mount Orientation
Mount Orientation The AM3 Plasma Mount has the built-in capability of mounting with the swingout arm on either the left or right-hand side. WARNING: WHEN MOUNTING THE AM3, THE SIDE THAT THE SWINGOUT ARM IS LOCATED ON MUST HAVE A LAG BOLT MOUNTED ON AT LEAST ONE SIDE (SEE FIGURE 1), TOP AND BOTTOM. -
Page 9: Mount Installation
For ease of installation, it is recommended that two people perform the installation. WARNING: WHEN MOUNTING THE AM3, THE SIDE THAT THE SWINGOUT ARM IS LOCATED ON MUST HAVE A LAG BOLT MOUNTED ON AT LEAST ONE SIDE (SEE FIGURE 1, PAGE 9), TOP AND BOTTOM. -
Page 10: Nose Piece Orientation
Nose Piece Orientation Rotate Nose 180° counter-clockwise Left Hand Orientation Right Hand Orientation Figure 7 Tension Bolts Back Side of Nose Piece Front Side of Nose Piece Figure 8 Once the mount has been oriented and mounted to the wall, remove the nose piece by removing the tensions bolts. -
Page 11: Universal Mounting Bracket Assembly
Universal Mounting Bracket Assembly Place the universal bracket bar and the universal brackets on a flat surface. Slide the universal brackets onto the universal bracket bar (as shown in Figure 9) with the set screws facing up. At this time, do not tighten the set screws that are located on the universal bracket. Place the display on a soft, flat surface, face-down. -
Page 12: Attaching The Display
Attaching the Display WARNING: ONCE THE UNIVERSAL BRACKET BAR ASSEMBLY HAS BEEN ATTACHED TO THE DISPLAY, IT IS RECOMMENDED THAT TWO PEOPLE MOUNT THE DISPLAY, AS THE UNIT IS HEAVY AND, IF DROPPED, WILL DAMAGE THE MOUNT, THE DISPLAY, AND/OR PERSONNEL. Universal Bracket Universal Bracket Bar Display... -
Page 13: Securing The Display
Once the two units have been secured together, the two (2) M6 x 30mm Phillips Head locking screws must be installed in the noted location (Figure 14) to prevent any movement. Universal Bracket Arm Bar AM3 Nose Piece M6 x 30mm Phillips Head Screw (Attached) -
Page 14: Tilt Positioning
Tilt Positioning NOTE: TO ADJUST THE DISPLAY, LOOSEN THE TENSION BOLTS NO MORE THAN ½ TURN, MAKE THE ADJUSTMENTS AND THEN TIGHTEN THE TENSION BOLTS. When tilt positioning is needed to adjust the display, place a hand at the top corner of the display and the other hand at the bottom of the display (Figure 15). -
Page 15: Technical Specifications
Technical Specifications 29.50 26.00 36.50 3.500 29.50 24.00 16.50 4.250 4.250 23.50 11.50 Figure 17 Installation Manual Page 15... -
Page 16: Warranty
Warranty Limited Lifetime Warranty All Premier Mounts products carry a limited lifetime warranty from ship date against defects in materials and workmanship. Premier Mounts is not liable for improper installation that results in damage to mounts, adapters, display equipment or personal injury.
