Summary of Contents for Vivo STAND-V002L

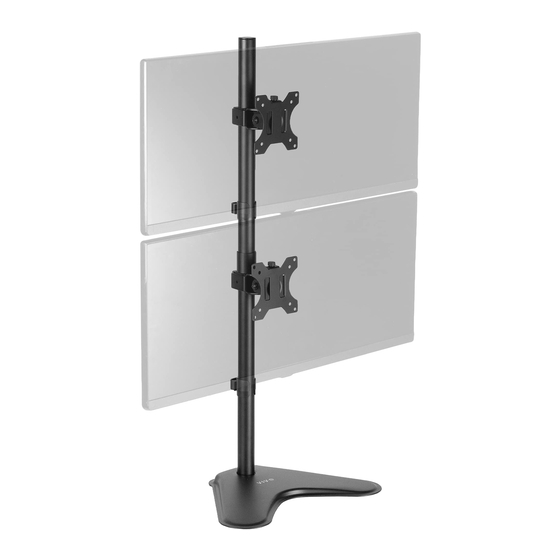

- Page 1 Dual Monitor Stand Instruction Manual SKU: STAND-V002L Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v002l help@vivo-us.com www.vivo-us.com 1-800-371-5654...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED 22 lbs DO NOT EXCEED WEIGHT CAPACITY. Per Arm Failure to do so may result in serious injury. (10 kg) Phillips Screwdriver ASSEMBLY STEPS STEP 1 Insert pole cap (F). STEP 2 Use allen wrench (L) on bolt (J) to secure the bottom pole (D) to the base (C).
- Page 4 STEP 3 Slide the cable management clip (H) down the pole followed by a single clamp (B). Choose your desired height and secure the clamp to the pole with allen wrench (M). STEP 4 Screw the pole connector (G) to the threads on top of pole (D) then add pole (E). Use allen wrench (K) to tighten down the two screws inside the pole connector.
- Page 5 STEP 5 Add the second single clamp (B) to desired height and secure to the pole with allen wrench (M). STEP 6 OPTION A: Flat Back Monitor Secure VESA plate (A) to the back of your monitor. Layer VESA plate on top of washer (M-E), then insert correct size bolt to fit the holes in your monitor.
- Page 6 STEP 6 (Continued) OPTION B: Curved Back Monitor Secure VESA plate (A) to the back of your monitor. Layer spacers (M-F), VESA plate, washers (M-E), then insert correct size bolt to fit the holes in your monitor. M- E M- B M- D M- F STEP 7...
- Page 7 STEP 8 Adjust tilt angle with allen wrench (M). STEP 9 Route wires through the cable management clips. Place allen wrenches into the cable management clips for easy accessibility.
- Page 8 Love your new VIVO setup and want to share? Tag us in your photo! @vivo_us If any parts are received damaged or defective, please contact us. We are happy to replace parts to ensure you have a fully functioning product.
