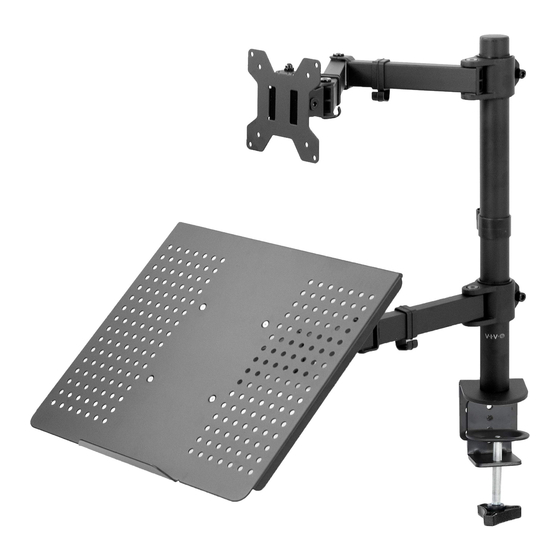

Single Monitor and Laptop Desk Mount
Instruction Manual
SKU: STAND-V002C
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v002c
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo STAND-V002C
Summary of Contents for Vivo STAND-V002C
- Page 1 Single Monitor and Laptop Desk Mount Instruction Manual SKU: STAND-V002C Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v002c GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 22lbs Failure to do so may result in serious injury. (9.98kg) Phillips Drill Screwdriver ASSEMBLY STEPS STEP 1 OPTION A: Clamp Installation Install the “C” Clamp Brace (c) to the Pole (a) using 3pcs M5x14 Bolts (f), and tighten using the Allen Key (o), see Figure 1.
- Page 4 STEP 1 (Continued) OPTION C: Self-Drilled Grommet Base Installation Position the Pole (a) on the mounting surface and mark the center hole. Drill a 3/8” (10mm) diameter hole at the marked position through the mounting surface. Install the Grommet Base Plate (m) to the Pole (a) using 3pcs M5x14 Bolts (f), and tighten using the Allen Key (o), see Figure 7.
- Page 5 STEP 3 FOR LAPTOP Attach VESA plate (e) to laptop tray (t) using bolts (u) and M4 nuts (v). FOR FLAT BACK MONITOR Attach VESA plate (e) to the monitor using thumb bolts (q). FOR CURVED BACK MONITOR Attach VESA plate (e) to the monitor using bolts (r) and spacers (s).
- Page 6 STEP 4 Slide the monitor onto the head of Swivel Arm (d) as shown in the diagram. Install the security Nut (h). Make sure the security nut is installed before you rotate the monitor.
- Page 7 STEP 5 Tighten the bolt with the supplied Allen Key (o) to fix the tilt angle. Use the supplied Allen Key (o) to make the necessary adjustments Adjust as Desired...
