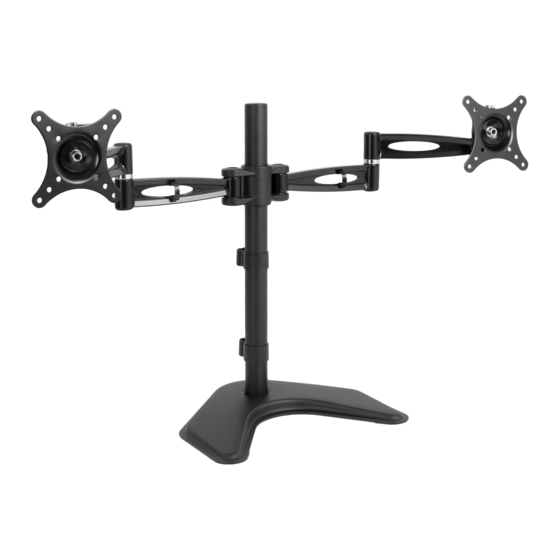

Dual Monitor Desk Stand
Instruction Manual
SKU: STAND-V002Z
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v002z
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V002Z
Summary of Contents for Vivo STAND-V002Z
- Page 1 Dual Monitor Desk Stand Instruction Manual SKU: STAND-V002Z Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v002z GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Tools Needed
TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 22lbs Failure to do so may result in serious injury. (9.98kg) PER ARM Phillips Screwdriver ASSEMBLY STEPS STEP 1 Install the pole (A) to the base (B) using M5x14 bolts (D). Tighten with the small Allen wrench (F). - Page 4 STEP 2 Slide monitor arm (C) down onto the pole and tighten the bolt with large Allen wrench (F).
- Page 5 STEP 3 OPTION A: Flat Back Monitor Attach monitors to VESA plates on monitor arm using M4x12 thumb bolts (G) with M4 washers (J). NOTE: Hand tighten screws to avoid stripping the plastic screw heads. OPTION B: Curved Back Monitor Attach monitors to the VESA plates on monitor arm using M4 spacers (I), M4x30 bolts (H) and M4 washers (J).
- Page 6 STEP 4 Adjust monitor height by loosening the center bolt with the large Allen wrench (F), then re-tighten at desired height. Adjust monitor support joints using the knob on top of each bracket. If additional tightening is needed, remove the monitor, tighten the center nut on the VESA plate with a 13mm wrench (not included), and reinstall the monitor.
- Page 7 STEP 5 Attach wire clips (E) and cable rings (K) to manage wires as shown in the diagram.
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
