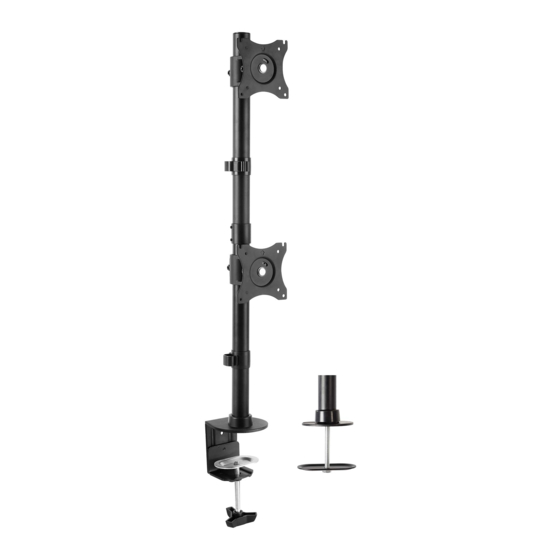

Dual vertical monitor desk mount
Hide thumbs Also See for STAND-V002R:

Advertisement

Quick Links

Dual Vertical Monitor Desk Mount
Instruction Manual
SKU: STAND-V002R
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v002r
help@vivo-us.com
www.vivo-us.com
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAND-V002R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vivo STAND-V002R

  • Page 1 Dual Vertical Monitor Desk Mount Instruction Manual SKU: STAND-V002R Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v002r help@vivo-us.com www.vivo-us.com 309-278-5303...
  • Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
  • Page 3: Tools Needed

    TOOLS NEEDED 22 lbs DO NOT EXCEED WEIGHT CAPACITY. Per Arm Failure to do so may result in serious injury. (10 kg) Phillips Screwdriver ASSEMBLY STEPS STEP 1 OPTION A: Clamp Installation Slide cable management clip (G) and base cover (H) on to bottom pole (A). Thread bottom pole (A) onto clamp (C).
  • Page 4 STEP 2 Slide VESA bracket (E) over top of pole (A). Tighten using 5mm allen wrench (L). STEP 3 Slide cable management clip (G) over bottom of pole (B). Use pole connector (F) to attach pole (B) to pole (A) as shown in diagram.
  • Page 5 STEP 4 Slide the remaining VESA bracket (E) over top of pole (B). Tighten using 5mm allen wrench (L). STEP 5 Attach two bolts (M-A or M-B) and washers (M-C) to top mounting holes of monitors, making sure to leave 3mm of threads exposed. Align bolts (M-A, M-B) in VESA plates. Secure using two more bolts (M-A or M-B) and washers (M-C) in the bottom two holes.
  • Page 6 STEP 6 Adjust tension in monitor bracket with 6mm allen wrench (M) as shown in diagram. +45° -45° STEP 7 Store allen wrenches (M, L) in cable management clip (G) for future adjustment.
  • Page 7 Adjust as Desired 360 ° 360 ° 360 ° 360 °...
  • Page 8 - 83% within < 2hr - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
