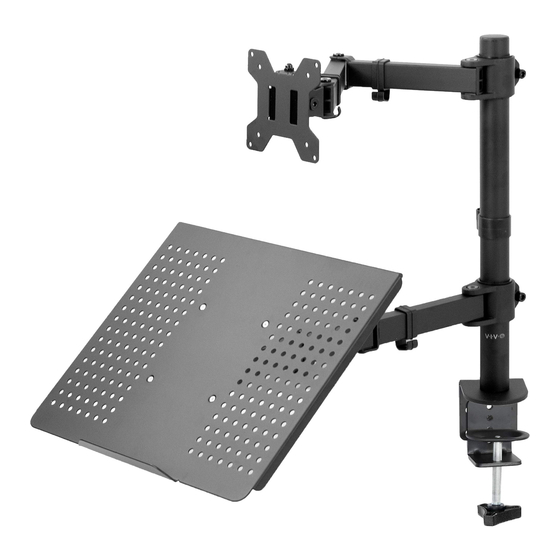

- Page 1 Single Monitor and Laptop Desk Mount Instruction Manual SKU: STAND-V002C Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v002c GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 22lbs Failure to do so may result in serious injury. (9.98kg) Phillips Drill Wrench Screwdriver ASSEMBLY STEPS STEP 1 Option A: Desk Clamp Install Install the clamp brace (C) to the pole (A) using x3 M5x14 bolts (F). See Figure 1. Attach soft pad (T1) to the clamp brace (C) , see Figure 2.
- Page 4 STEP 2 Install Swivel Arms (D) to the Pole (A). Fasten the bolt with supplied Allen Key (M). Attach the Wire Clip (L1) to the Pole (A) and (L2) to the Swivel Arms (D).
- Page 5 STEP 3 FOR LAPTOP Attach VESA plate (E) to laptop tray (Q) using bolts (R) and M4 nuts (S). FOR FLAT BACK MONITOR Attach VESA plate (E) to the monitor using thumb bolts (N). NOTE: Hand tighten screws to avoid over tightening.
- Page 6 STEP 4 Slide the monitor onto the head of Swivel Arm (D) as shown in the diagram. Install the security Nut (H). Make sure the security nut is installed before you rotate the monitor.
- Page 7 STEP 5 Tighten the bolt with the supplied Allen Key (M) to fix the tilt angle. Use the supplied Allen Key (M) to make the necessary adjustments Adjust as Desired...
