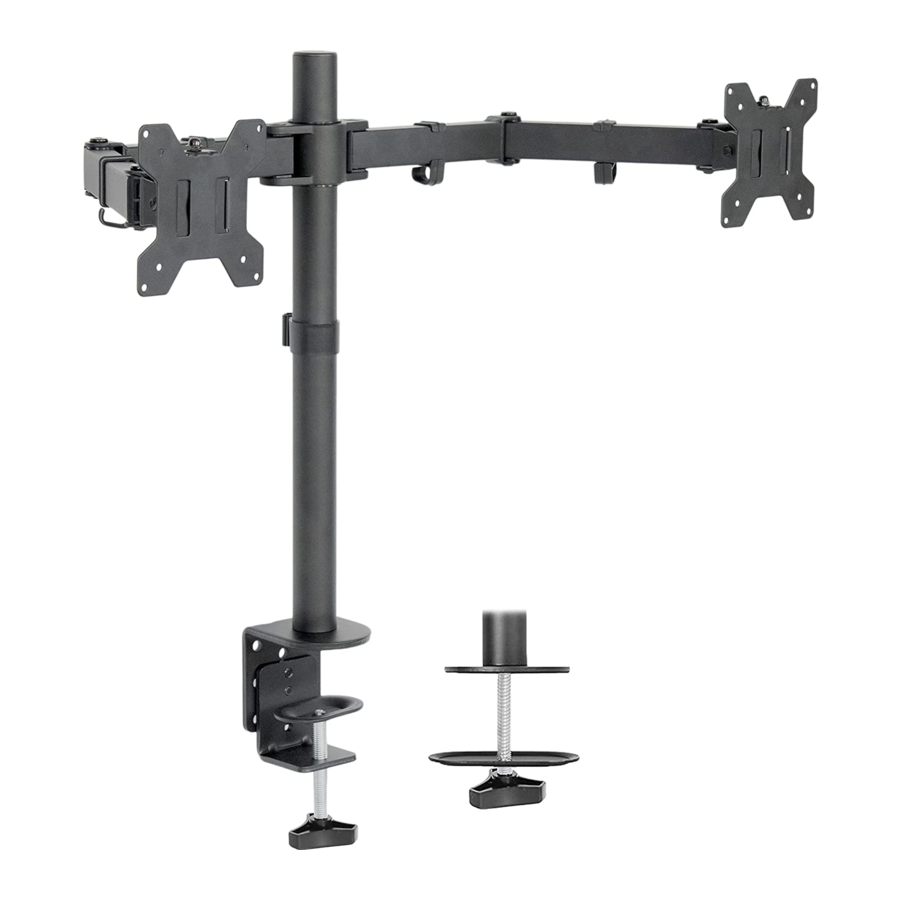

Dual Monitor Desk Mount
Instruction Manual
SKU: STAND-V002
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v002
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAND-V002 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vivo STAND-V002

Summary of Contents for Vivo STAND-V002

  • Page 1 Dual Monitor Desk Mount Instruction Manual SKU: STAND-V002 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v002 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
  • Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
  • Page 3 TOOLS NEEDED 22 lbs DO NOT EXCEED WEIGHT CAPACITY. Per Arm Failure to do so may result in serious injury. (10kg) Phillips Screwdriver ASSEMBLY STEPS STEP 1 Option A: Desk Clamp Install Install the clamp brace (C) to the pole (A) using x3 M5x14 bolts (F). See Figure 1. Attach soft pad (Q1) to the clamp brace (C) , see Figure 2.
  • Page 4 STEP 2 Install swivel arm (D) to the pole (A). Fasten the bolt with supplied Allen wrench (M). Attach the wire clip (L1,L2) to the pole (A) and swivel arm (D). STEP 3 OPTION A: Flat Back Monitor OPTION B: Curved Back Monitor Attach the VESA plate (E) to the monitor with Attach the VESA plate (E) to the monitor with M4x12 thumbscrews (N).
  • Page 5 STEP 4 Slide the monitor onto the head of swivel arm (D). Install the security nut (H). Make sure the security nut is installed before you rotate the monitor. For minor height adjustment, use Allen wernch (M).
  • Page 6 STEP 5 Tighten the bolt with the supplied Allen wrench (M) to fix the tilt angle. To level the monitors, remove the nut (H) and turn the bolt with the Allen wrench (M) to raise or lower the monitor. Replace nut (H) after the adjustment.
  • Page 7 STEP 6 Use the supplied Allen wrench set (M) to make any necessary adjustments. Manage cables and store Allen wrenches (M) in wire clip (L1) for future use.
  • Page 8 - 92% within < 3hr www.vivo-us.com AVG. RESOLUTION TIME : < 15 M (within office hrs) Chat live with an agent! 309-278-5303 AVG. RESOLUTION TIME : 5M 4S (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
