Ocean Matrix OMX-10HMIP0005 & OMX-11IPHM0004 Installation

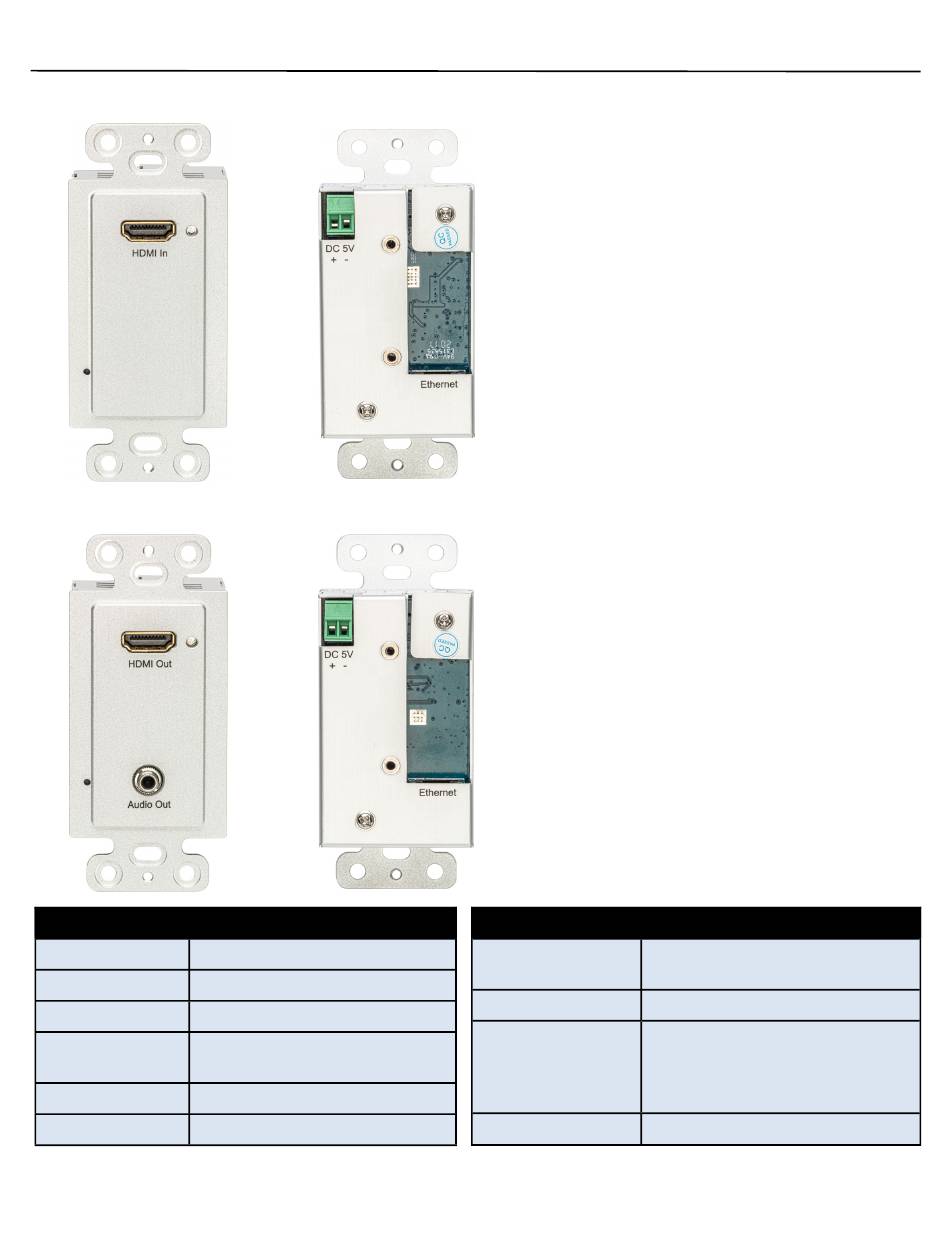

OMX-10HMIP0005 TRANSMITTER
1
3
OMX-11IPHM0004 RECEIVER
1
4
3

SPECIFICATIONS

Protocol H.264 Encoder over TCP/IP
Compliance HDMI, HDCP, PoE 802.3
Audio Format LPCM, Audio sampling rate 48KHZ
Transmission
394 feet/120m over Cat5e/6
Distance
Streaming Bit Rate 15Mbps/1080P
Supports IGMP, DHCP
4
2
5
2
www.oceanmatrix.com
1 HMDI Input
2 HDMI LED Indicator Light
3 Reset (Insert pin and hold for 10 seconds.
When the LED goes out, reset is complete.)
4 Power Supply Connection
5 Cat 5e/6 Output
5
1 HDMI Output
2 HDMI LED Indicator Light
3 Reset (Insert pin and hold for 10 seconds.
When the LED goes out, reset is complete.)
4 Audio Output
5 Power Supply Connection
6 Cat 5e/6 Input
6
SPECIFICATIONS
Power
Consumption
Wall Plate/Enclosure
Dimensions Each Unit
(LxWxH)
Weight Each Unit
Ocean Matrix
Transmitter 4W
Receiver 3W
Silver / Aluminum
Wall Plate - 4 1/2 x 2 3/4 x 5/64 in
Transmitter/Receiver- 4 1/8 x 1 7/8
x 1 ½ in
4.23 oz
2
