Ocean Matrix OMX-HDMI-2-IPV2 Installation

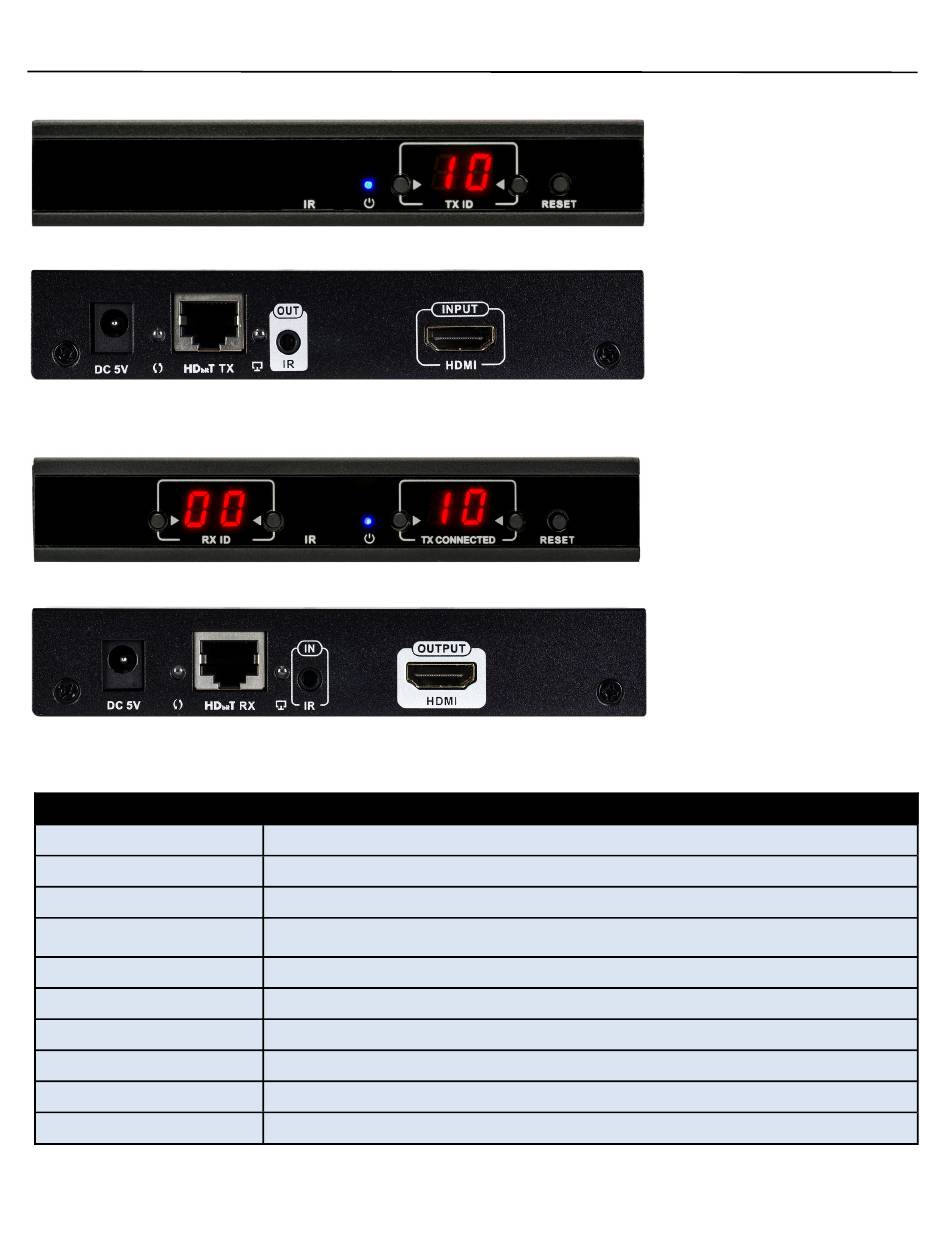

TRANSMITTER
5
6
7
RECEIVER
6
7
SPECIFICATIONS
Signal
Resolutions
Audio Format
HDMI Transmission Distance
Network Bandwidth
IR Passback
Input Voltage
Power Consumption
Dimensions (LxWxH)
Weight
1
2
8
9
1
2
3
8
9
10
HDMI 1.3, Compliant to HDCP
480p@60Hz, 576p@50Hz, 720p@60Hz, 1080p@60Hz
PCM
Cat5 263 Ft, Cat5E 328 Ft, Cat6 394 Ft
18Mbps
Supports 20-60KHz IR devices
5VDC@2A
4W each unit
5.27x3.30x0.94 in/ 133.8x83.8x23.8 mm
TX 9.17 oz / RX 8.81 oz
3
4
10
4
5
11
Ocean Matrix
www.oceanmatrix.com
1
IR: Remote Control
2
Power Indicator
3
TX Channel Display
4
Reset Button
5
5VDC Power Input
6
Data Transmission Indicator
7
RJ45 Signal Output
8
Connection Indicator
9
IR Blaster Extension Port
10 HDMI Signal Input
1
RX ID (non-functioning)
2
IR: Remote Control
3
Power Indicator
4
RX Channel Display
5
Reset Button
6
5VDC Power Input
7
Data Transmission Indicator
8
RJ45 Signal Input
9
Connection Indicator
10 IR Receiver Extension Port
11 HDMI Signal Output
2
