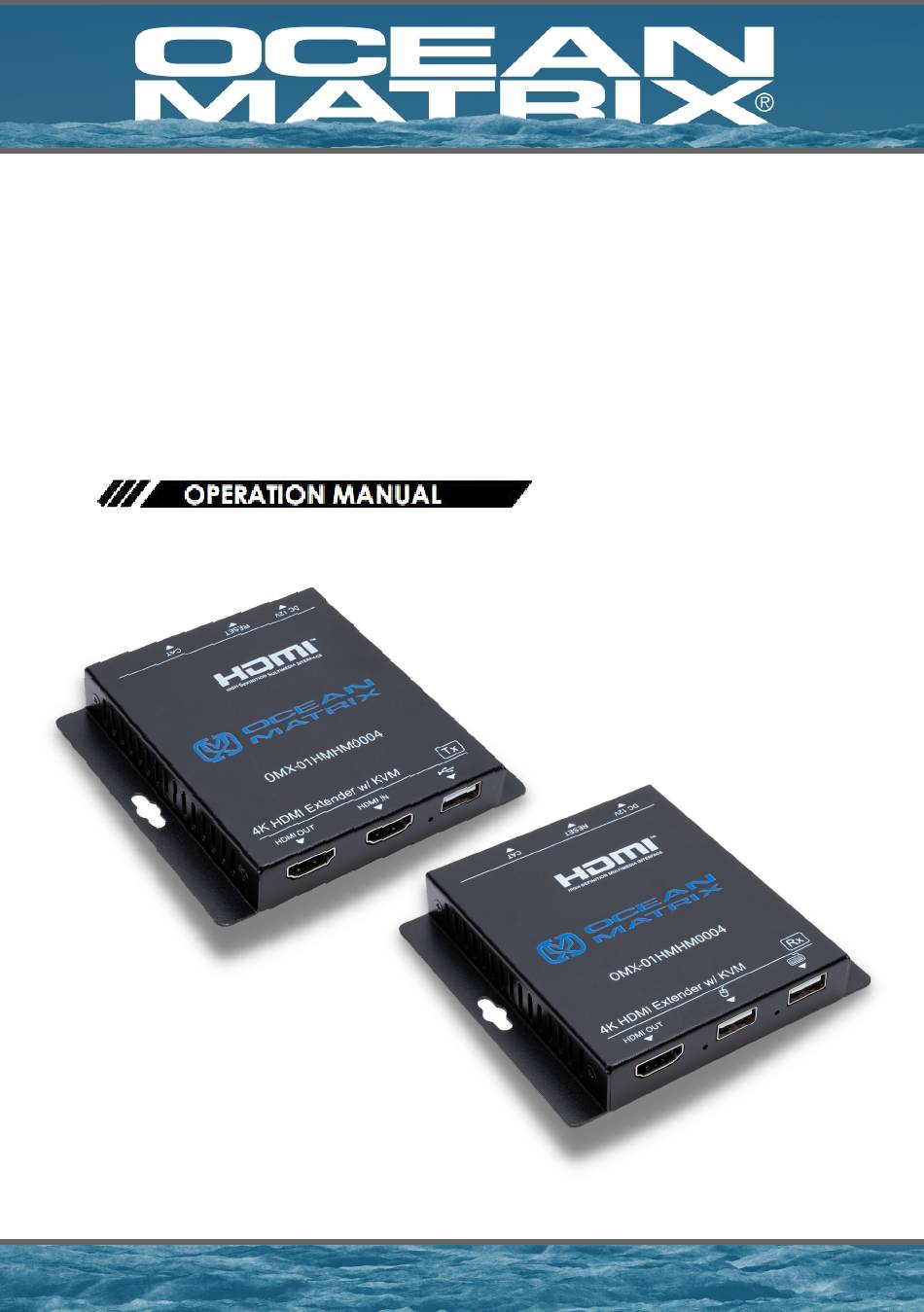

- Page 1 OMX-01HMHM0004 KVM Extender Supports 4K 30Hz HDMI up to 375 Feet...
- Page 2 Description: The OMX-01HMHM0004 extends your 4K 60Hz HDMI, USB, or KVM signal up to 375 feet. This kit supports 4K/UHD video, as well as HDMI data rates up to 10.2Gbps and is HDCP 1.4 & 2.2 compliant. With video resolution down-scaling support, the 4K input can be automatically downscaled to a 1080p output for compatibility with older displays.
- Page 3 Operation Controls and Functions: Transmitter: HDMI OUT - Connect to HDMI display device. HDMI IN - Connects to HDMI source device. USB Port- Connects source device (e.g. desktop) that needs to be controlled by USB devices at receiver end. DC 12V - DC connector for the power adapter connection. Reset - Press the button to reboot the transmitter.
- Page 4 Operation Controls and Functions: Receiver: HDMI OUT - Connect to HDMI display device. USB Ports - Connects USB devices (e.g Mouse, Keyboard) to control the source device (e.g. PC) at transmitter end. DC 12V - DC connector for the power adapter connection. Reset - Press the button to reboot the receiver.
- Page 5 HDCP Handling: If the source device has no HDCP content, both the TX HDMI loop out and RX HDMI out also has no HDCP content. The HDCP content of HDMI loop out on TX automatically follows the source device’s. The HDCP content of HDMI out on RX automatically follows the RX display device’s.
- Page 6 PRODUCT SERVICE Damage requiring service: The unit should be serviced by qualified service personnel if: (a) The DC power supply cord or AC adaptor has been damaged (b) Objects or liquids have gotten into the unit (c) The unit has been exposed to rain (d) The unit does not operate normally or exhibits a marked change in performance;...
