Ocean Matrix OMX-10HMIP0005 Installation & Specifications page 7

Ocean Matrix OMX-10HMIP0005 & OMX-11IPHM0004 Installation
MANY-TO-MANY CONNECTION—Refer to instructions on the included CD
1. Set the IP addresses for the transmitter and the receiver and prepare the switch as instructed previously.
2. Connect the source device and the TX using HDMI cable.
3. Connect the TXs and the switch/router using CAT5e/6 cable.
4. Connect the RXs and the switch/router using CAT5e/6 cable
5. Connect the HDMI displays and the HDMI RXs using HDMI cable.
9. Choose the source Web Browser (see previous instructions)
10. Notes
 Daisy chain the switch if more RJ45 ports are needed
 The total quantity of transmitters and receivers cannot exceed 255

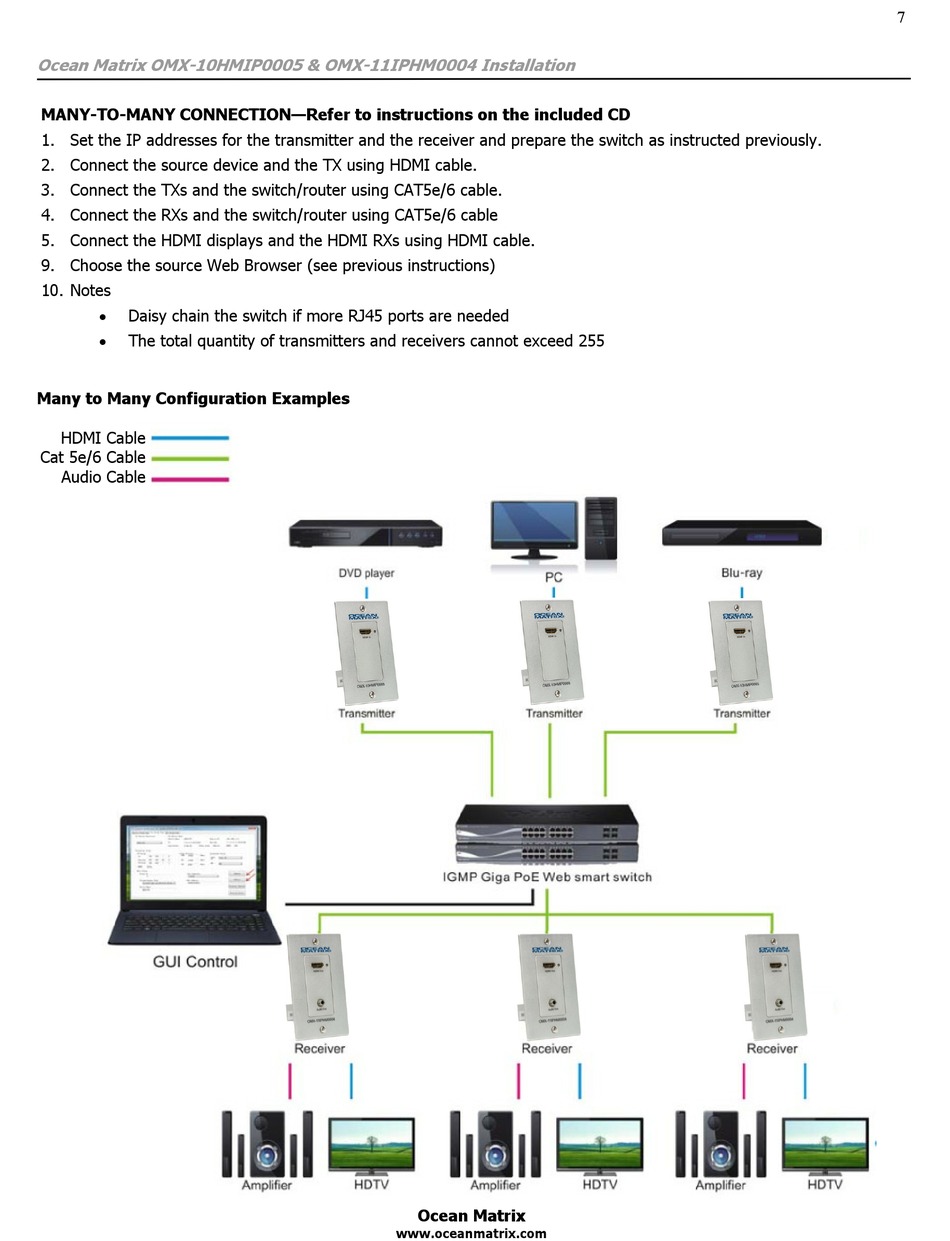

Many to Many Configuration Examples
