Ocean Matrix OMX-10HMIP0005 & OMX-11IPHM0004 Installation
POINT-TO-POINT CONNECTION—Refer to instructions on the included CD
1. Connect cable ONLY when power is OFF.
2. Connect the source and the TX using HDMI cable.
3. Connect the HDMI display the HDMI RX using HDMI cable.
4. Connect the TX and the RX with Cat5e/6 cable.

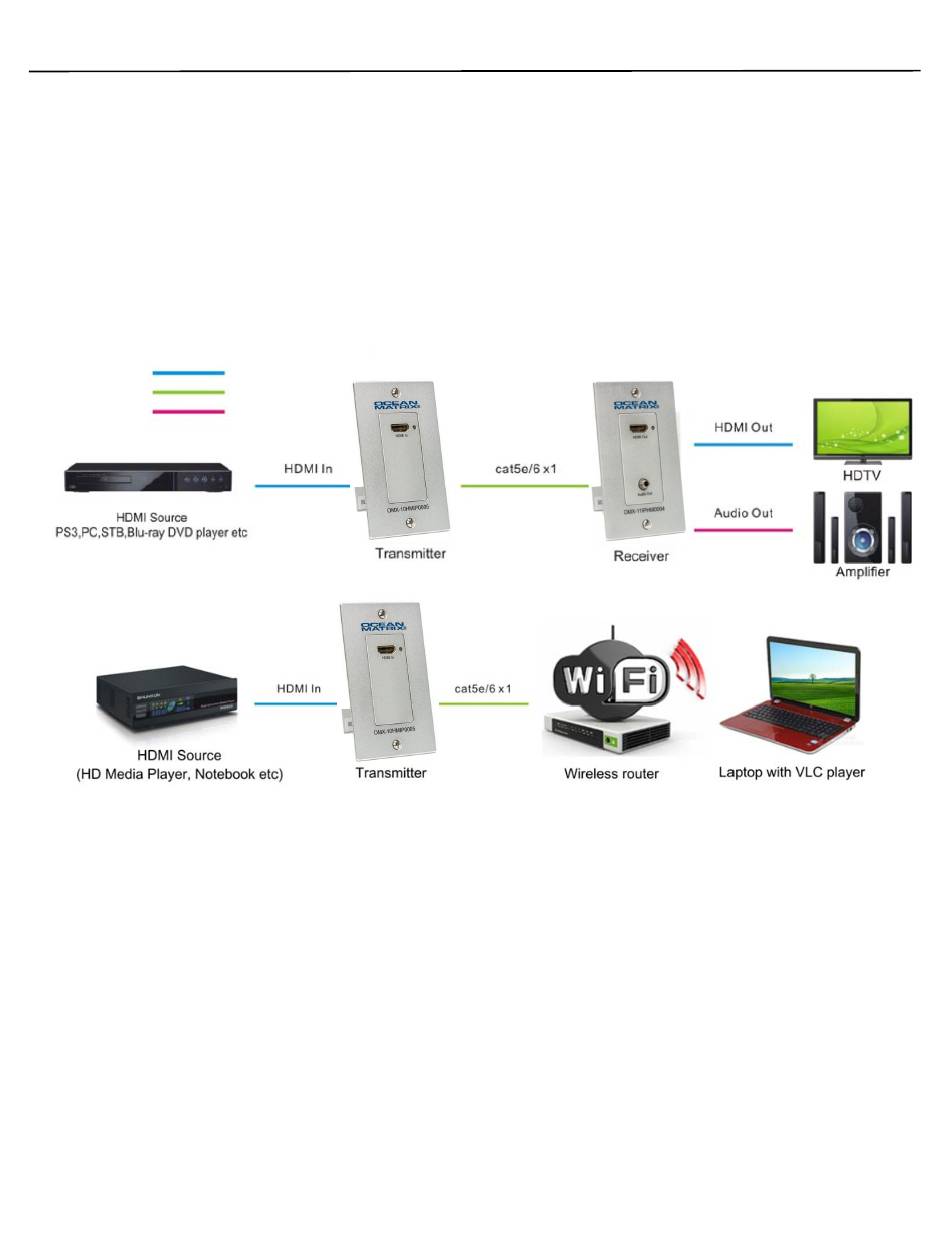

Point to Point Configuration Examples
HDMI Cable
Cat 5e/6 Cable
Audio Cable
Ocean Matrix
