Ocean Matrix OMX-01HMBT0004 Installation & Specifications

OMX-01HMBT0004 HDBaseT 4K HDMI Extender Set

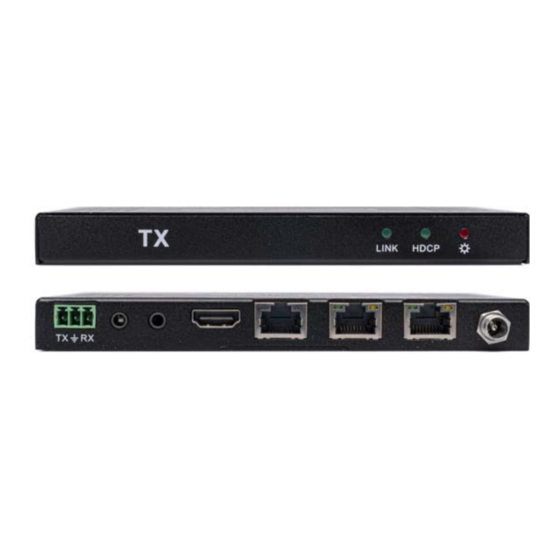

Transmitter
4 5 6 7
1 LINK LED Status Indicator
Green: Link
Off: No Link
Blinking: Issue with Link
2 HDCP Status Indicator
Green: With HDCP
Off: No HDMI
Blinking: No HDCP
3 Power LED Indicator
* Ethernet Connections: Yellow LED indicators on the corresponding ports will blink and the green LED indicators will be on continuously.

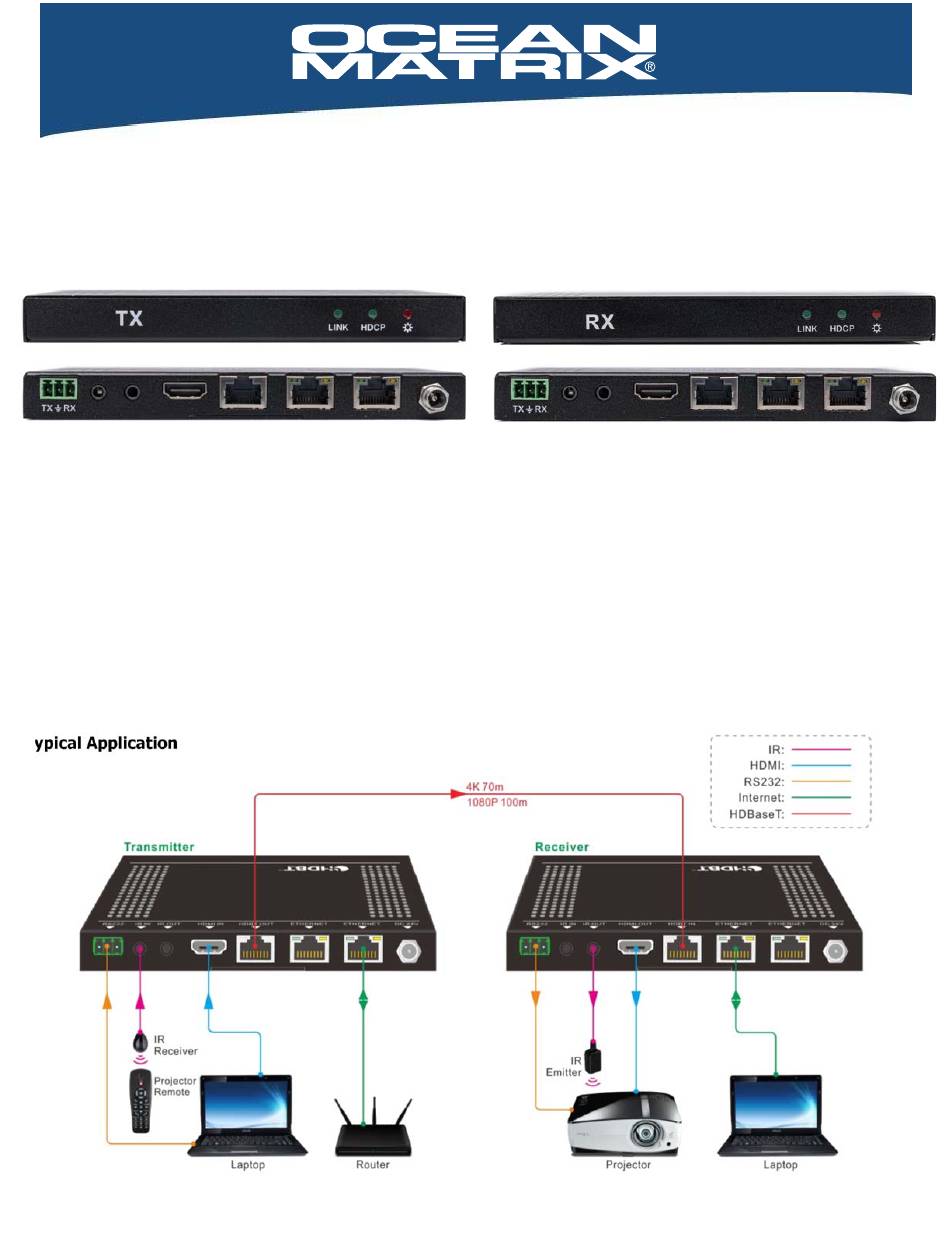

Typical Application
INSTALLATION & SPECIFICATIONS
1 2
8 9 10
4 RS232 3-Pin Connection
5 IR-IN Port-Connect IR Cable
6 IR-Out Port-Connect IR Cable
7 HDMI In—Connect to Source
8 HDBaseT Out—Connect to RX
* 9 Ethernet—For Internet or Computer
& 10 Connections
11 24VDC/1.25A Power Input
Receiver
3
11
4 5
1 LINK LED Status Indicator
Green: Link
Off: No Link
Blinking: Issue with Link
2 HDCP Status Indicator
Green: With HDCP
Off: No HDMI
Blinking: No HDCP
3 Power LED Indicator
Ocean Matrix
www.oceanmatrix.com
6 7 8 9
4 RS232 3-Pin Connection
5 IR-IN Port-Connect IR Cable
6 IR-Out Port-Connect IR Cable
7 HDMI Out—Connect to Display
8 HDBaseT In—Connect to TX
* 9 Ethernet—For Internet or Computer
& 10 Connections
11 24VDC/1.25A Power Input
1 2 3
10 11
