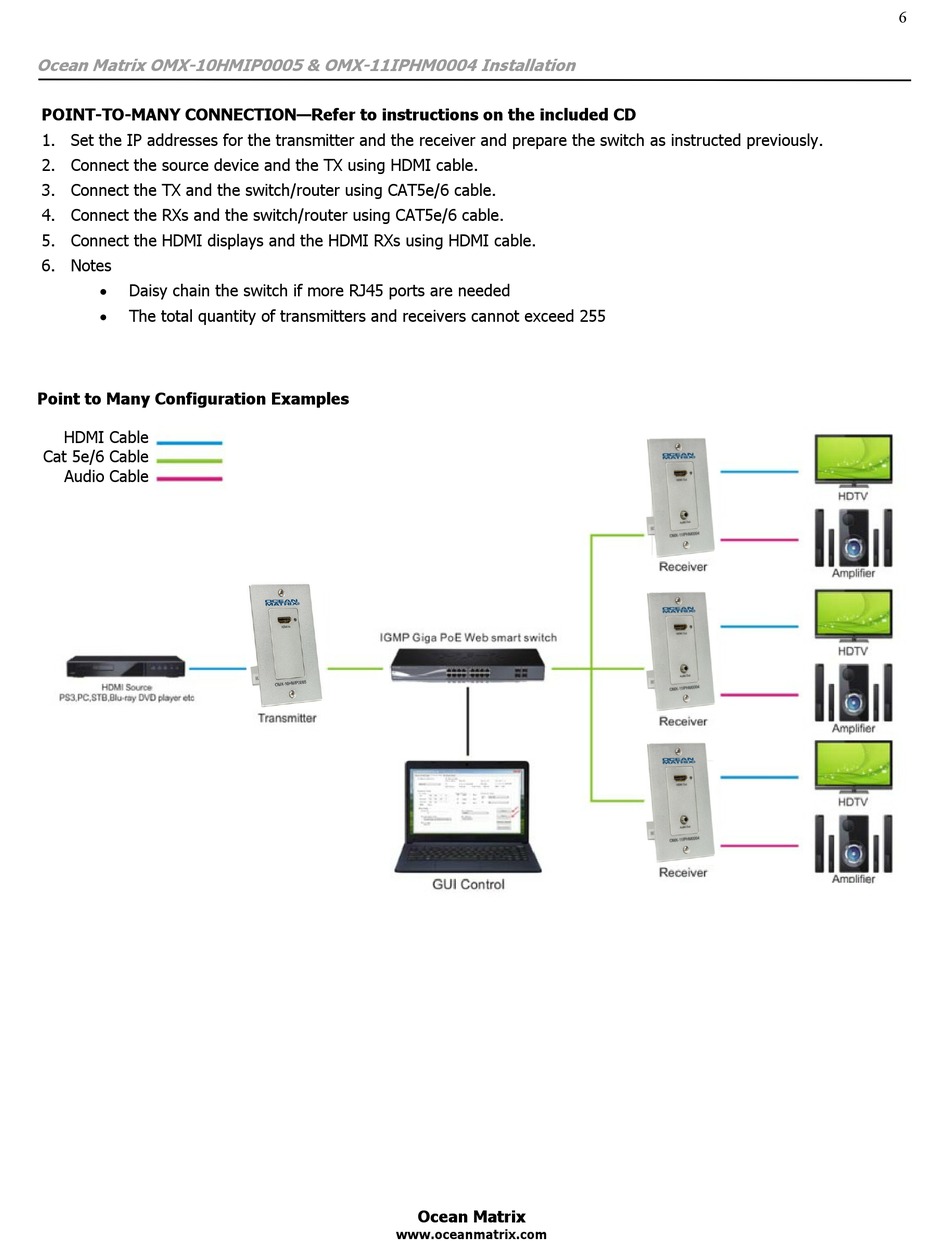

Ocean Matrix OMX-10HMIP0005 & OMX-11IPHM0004 Installation
POINT-TO-MANY CONNECTION—Refer to instructions on the included CD
1. Set the IP addresses for the transmitter and the receiver and prepare the switch as instructed previously.
2. Connect the source device and the TX using HDMI cable.
3. Connect the TX and the switch/router using CAT5e/6 cable.
4. Connect the RXs and the switch/router using CAT5e/6 cable.
5. Connect the HDMI displays and the HDMI RXs using HDMI cable.
6. Notes
 Daisy chain the switch if more RJ45 ports are needed
 The total quantity of transmitters and receivers cannot exceed 255
Point to Many Configuration Examples
HDMI Cable
Cat 5e/6 Cable
Audio Cable
