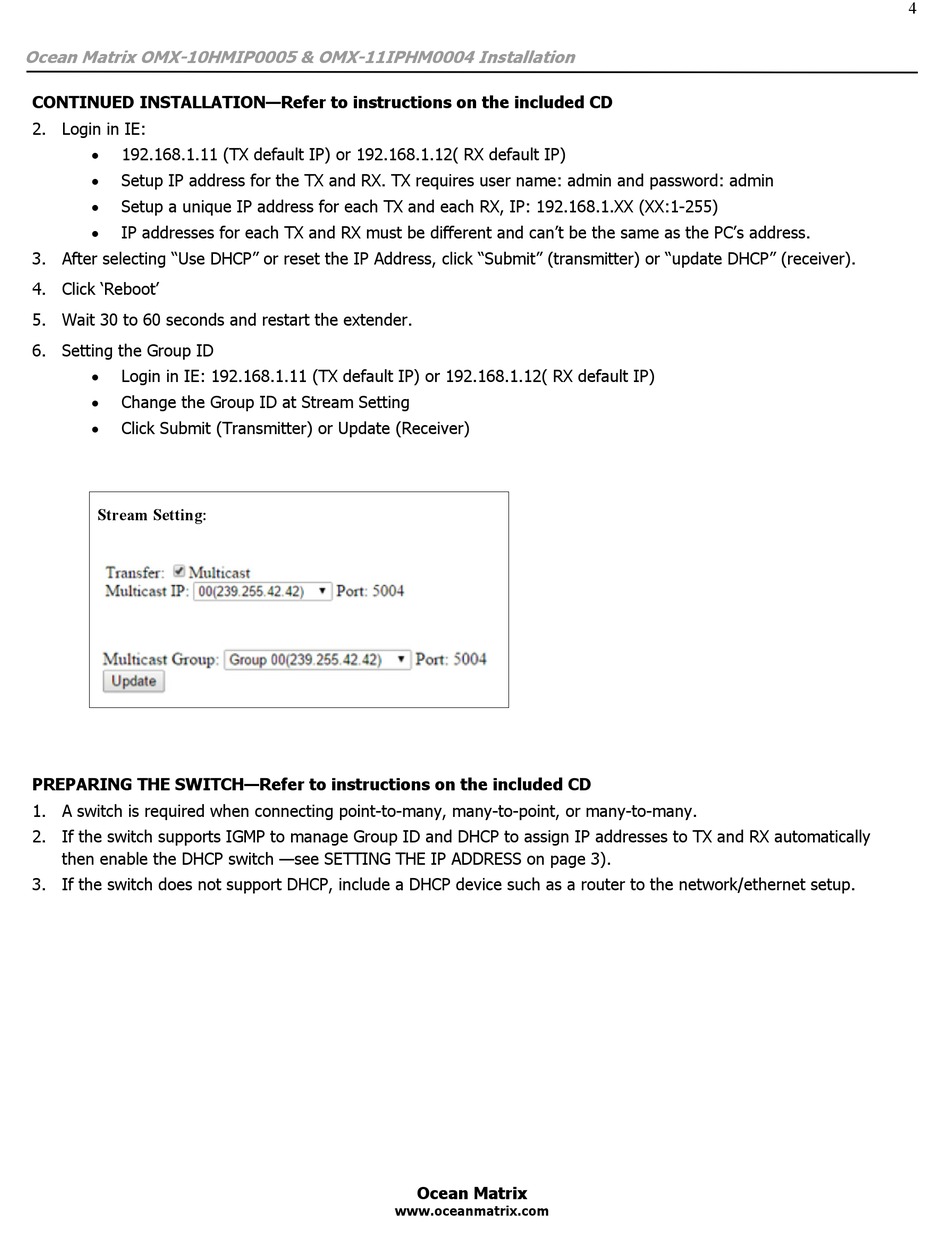

Ocean Matrix OMX-10HMIP0005 Installation & Specifications page 4

Ocean Matrix OMX-10HMIP0005 & OMX-11IPHM0004 Installation
CONTINUED INSTALLATION—Refer to instructions on the included CD
2. Login in IE:
 192.168.1.11 (TX default IP) or 192.168.1.12( RX default IP)
 Setup IP address for the TX and RX. TX requires user name: admin and password: admin
 Setup a unique IP address for each TX and each RX, IP: 192.168.1.XX (XX:1-255)
 IP addresses for each TX and RX must be different and can't be the same as the PC's address.
3. After selecting "Use DHCP" or reset the IP Address, click "Submit" (transmitter) or "update DHCP" (receiver).
4. Click 'Reboot'
5. Wait 30 to 60 seconds and restart the extender.
6. Setting the Group ID
 Login in IE: 192.168.1.11 (TX default IP) or 192.168.1.12( RX default IP)

Change the Group ID at Stream Setting
 Click Submit (Transmitter) or Update (Receiver)
Stream Setting:
PREPARING THE SWITCH—Refer to instructions on the included CD
1. A switch is required when connecting point-to-many, many-to-point, or many-to-many.
2. If the switch supports IGMP to manage Group ID and DHCP to assign IP addresses to TX and RX automatically
then enable the DHCP switch —see SETTING THE IP ADDRESS on page 3).
3. If the switch does not support DHCP, include a DHCP device such as a router to the network/ethernet setup.
