OMX-01HMBT0010 HDBaseT 4K HDMI Extender Set
Transmitter
Front
1
12
11
10
1 Power LED Indicator
2 Link LED Indicator
3 HDCP LED Indicator
Green-HDMI with HDCP
Flashing Green-No HDCP
Off-No HDMI Signal
4 HDMI IN 1 LED Indicator
Orange-Connected to source
Green-Device is selected as source
5 HDMI IN 1-Connect source
Back
13
13 PoC IN/HDBT OUT-connect to HDBT IN on RX
14 DC OUT-Connect compatible device to be powered
15 RS232-Connect RS232 computer or controller
INSTALLATION & SPECIFICATIONS
2
3
4
8
5
6
7
9
6
HDMI IN 2 LED Indicator
Orange-Connected to source
Green-Device is selected as source
7
HDMI IN 2-Connect second source
8
RESET-Press to reboot the TX
9
Factory Use Only
10 TO PC-Connect to Computer
11 DISPLAY ON/OFF via CEC/RS232
12 SOURCE SELECT
14
15

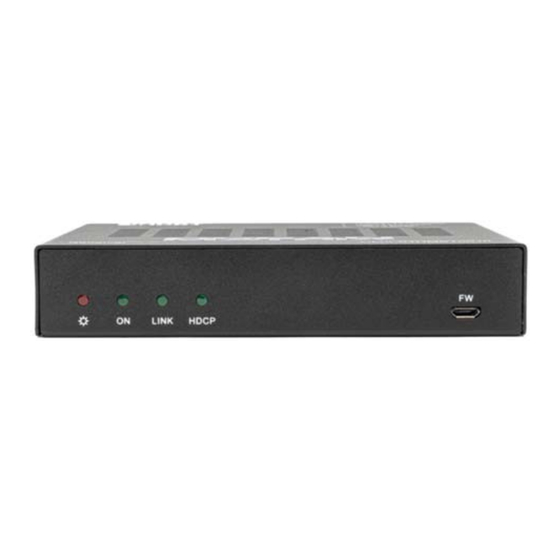

Receiver
Front
1
Back
6
1 Power LED Indicator
2 ON LED-Indicates working status
3 LINK LED Indicator
4 HDCP LED Indicator
Green-HDMI with HDCP
Flashing Green-No HDCP
Off-No HDMI Signal
5 Factory Use Only
Typical Application
Ocean Matrix
www.oceanmatrix.com
2
3
4
7
8
6 HDMI OUT-Connect display
7 HDBT IN-Connect to HDBT OUT on
TX
8 USB IN-Connect HID devices such as
mouse or keyboard to control device
connected to the TO PC on TX.
9 RS232-Connect RS232 device
10
Plug in Power Supply
Control functions
via CEC on HDMI or
RS232 Connections
5
9
10
Advertisement
Related Manuals for Ocean Matrix OMX-01HMBT0010
Summary of Contents for Ocean Matrix OMX-01HMBT0010
- Page 1 OMX-01HMBT0010 HDBaseT 4K HDMI Extender Set INSTALLATION & SPECIFICATIONS Transmitter Receiver Front Front Back 6 HDMI OUT-Connect display 1 Power LED Indicator HDMI IN 2 LED Indicator 1 Power LED Indicator Orange-Connected to source 7 HDBT IN-Connect to HDBT OUT on...
- Page 2 Ocean Matrix OMX—01HMBT0010 SIGNAL SWITCHING Press SOURCE SELECT to switch to the next source device. AUTO-SWITCHING: To enable auto-switching, press and hold SOURCE SELECT for 3 seconds. When a new input signal is de- tected, the transmitter will automatically switch to this new signal. To exit this mode, press and hold SOURCE SELECT.
- Page 3 Ocean Matrix OMX—01HMBT0010 RS232 STANDARD SERIAL CONTROLLER TERMINAL Download the control software. Find the download on the Ocean Matrix website on the product page. OMX-01HMBT0010 1. Copy the control software file to the control PC 2. Set the following parameters: ...
- Page 4 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ocean Matrix 812 Kings Highway • Sauger es, NY 12477 www.oceanmatrix.com...
