- Page 1 ITR9002 Module for the Pole Mounted Router Technical Reference Guide Effective Date: May, 2019 ITR9002 Module...
-
Page 2: Revision History
Revision History The following table describes the changes to this document for each revision of the ITR9002 router module: Revision Date Description of Change May, 2019 Initial Release ITR9002 Module... -
Page 3: Regulatory Compliance
Additional testing, Part 15 Subpart B disclaimer The Itron ITR9002 modular transmitter is only FCC authorized for the specific rule parts (i.e., FCC transmitter rules) listed on the grant, and that the host product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the modular transmitter grant of certification. - Page 4 The Itron ITR9002 is approved as a “limited module,” and Itron as the module manufacturer is responsible for approving the host environment that the limited module is used with. The host for the Itron ITR9002 module is the Itron Pole Mounted Router (PMR). Itron has full control over the manufacture of the module as well as the PMR. As a “limited module”...
-
Page 5: Test Modes
Test Modes Itron uses various test mode programs for test set up which operate separate from production firmware. Host integrators should contact Itron for assistance with test modes needed for module/host compliance test requirements. Recycling Information The product you have purchased contains circuit boards. At the end of the modules useful life, under various state and local laws, it may be illegal to dispose of certain components into the municipal waste system. -
Page 6: Installation

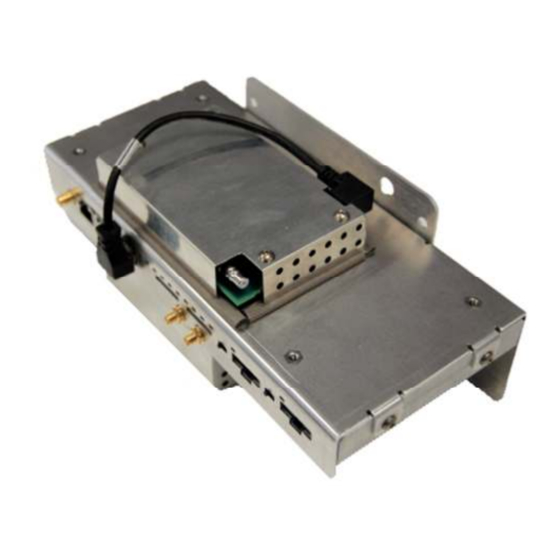

Installation The ITR9002 module will be installed in the Itron POLE MOUNT ROUTER (PMR). Install the ITR9002 module on the host board assembly.. ITR9002 Module... - Page 7 ITR9002 Module...
- Page 8 Install the shield that covers the ITR9002 module with only RF QMA connect exposed. ITR9002 Module...
- Page 9 Connect USB in the ITR9002 module to the electronic assembly: ITR9002 Module...
- Page 10 Install electronic assembly into PMR host: ITR9002 Module...
- Page 11 Sealed PMR: ITR9002 Module...
