OpenWay Riva
®
® Pit Module
500W ERT
Installation Guide
knowledge to shape your future
INSTALLATION GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OpenWay Riva 500W ERT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ITRON OpenWay Riva 500W ERT

Summary of Contents for ITRON OpenWay Riva 500W ERT

  • Page 1 OpenWay Riva ® ® Pit Module 500W ERT Installation Guide knowledge to shape your future INSTALLATION GUIDE...
  • Page 2 All other product names and logos in this documentation are used for identification purposes only and may be trademarks or registered trademarks of their respective companies. For more information about Itron or Itron products, go to www.itron.com. If you have questions or comments about a software or hardware product, contact Itron Technical Support Services. Contact Email: support@itron.com...

  • Page 3: Table Of Contents

    RF Exposure (FCC/ISED) Australia, ACMA Spectrum Compliance Lithium Battery Safety Modifications and Repairs Electromagnetic Compatibility Electrostatic Discharge Do Not Drop About the OpenWay Riva 500W ERT Module Description Related Documents Itron Security Manager (ISM) Battery Life Low Battery Transmission Modes...
  • Page 4 Template Table of Contents Pulser-type Register Connections Verifying Operation Installing the OpenWay Riva 500W ERT Pit Module Warning Pit module mounting accessories Pit modules with Integral Connectors Through-lid Installation Required Tools and Hardware Installing the Module in the Pit Lid...

  • Page 5: New In This Document

    Template New in this Document New in this Document Table 1 New in this document Revision Date Description July 2019 First publication. January 2020 Added Australia, ACMA Spectrum Compliance. 08 January 2020 815-0006-01 Itron, Inc. Page 5 of 48...

  • Page 6: Important Safety And Compliance Information

    To ensure system performance, this device and antenna shall not be changed or modified without the express approval of Itron. Per FCC rules, unapproved modifications or operation beyond or in conflict with these instructions for use could void the user's authority to operate the equipment.

  • Page 7: Canada, Ised Spectrum Compliance

    ACMA Standards for the Radio, EMC and RF Exposure. This includes standard AS/NZS 4268 RF spectrum standard for frequency and power out. Lithium Battery Safety Warning! Follow these procedures to avoid injury to yourself or others. 08 January 2020 815-0006-01 Itron, Inc. Page 7 of 48...

  • Page 8: Modifications And Repairs

    Itron device. Do Not Drop Warning! While Itron modules are designed to withstand a drop, dropping the module may damage the device and void the warranty. 08 January 2020 815-0006-01 Itron, Inc.

  • Page 9: About The Openway Riva 500W Ert Module

    Mobile Mode offering Mobile Handheld, Hard-to-Read Mobile, High-Power Mobile, or OpenWay Riva Network Mode. The OpenWay Riva 500W ERT modules ship from the factory in Factory Mode, which prevents unwanted radio transmissions during transit. After installation and programming, the pit modules acquire and transmit meter or register data in accordance with the selected pit module parameter settings.

  • Page 10: Description

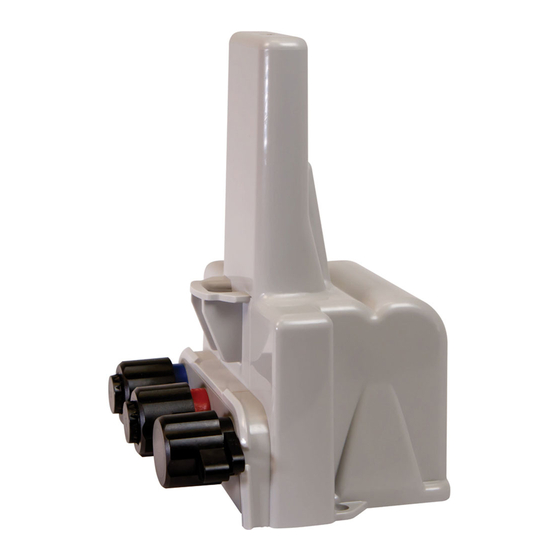

    Description Description Itron part number OpenWay Riva 500W ERT pit module ERW-1601-001 Note: The OpenWay Riva 500W ERT module works accurately with cable lengths up to 300 feet. Use an Itron-approved extension cable. Related Documents Document description Itron part number...

  • Page 11: Itron Security Manager (Ism)

    Note: XXX designates the document revision and is subject to change without notice. Itron Security Manager (ISM) Users have the option of enabling enhanced security in OpenWay Riva 500W ERT pit modules. Itron Security Manager (ISM) is a feature of the OpenWay Riva system that ensures certain pit module commands are issued through secure radio communications between the handheld computer, Mobile Collector, or OpenWay Riva Network.

  • Page 12: Battery Life

    Caution: If you perform a Switch to OpenWay Riva Network Mode or Switch to Mobile Mode operation, it results in a loss of interval data. The OpenWay Riva 500W ERT module operates using the 902 to 928 MHz in the ISM band frequency band and does not require an FCC license.

  • Page 13: Firmware Functionality

    Pit module normal operation mode. – The OpenWay Riva 500W ERT Pit Module transmitted message is dependent on its factory settings or setting programmed with FDM for standard consumption messages (SCM+). For SCM+ (Mobile), the pit module default bubble-up rate is 10 seconds.

  • Page 14: Events And Alarms

    Template 2  About the OpenWay Riva 500W ERT Module Firmware part number Global FDM Check Over-the-air Firmware functionality software Endpoint firmware part release firmware number version (GSR) version ■ FMW-1601-004 1.3.7 Network topology ■ IPv6 addressable ■ 60 minute interval data ■...

  • Page 15: Extended Alarm Flag

    For more information, see Firmware Functionality. The OpenWay Riva 500W ERT module reports the tampers available in Mobile Mode as well as extended meter alarms available from new solid-state and electronic meters connected to the 500W ERT module . The extended alarms include: ■...
  • Page 16 Template 2  About the OpenWay Riva 500W ERT Module ■ Reverse flow ■ Zero consumption For more information about the extended alarms, see the OpenWay Riva Events and Alarms Reference Guide, TDC-1746-XXX. For more information about the extended alarms, see the OpenWay Riva Collection Manager Device Interface Guide, TDC-1786-XXX.

  • Page 17: Initializing, Connecting, And Programming The Pit Module

    To enter an E-Coder 8-digit driver. ■ Commission security Itron strongly recommends performing a Check ERT with a handheld computer running FDM to verify that the pit module is operating correctly after installation. Performing a Check ERT will: ■ Initiate an immediate register read.

  • Page 18: Extending The Cable

    Caution: Do not program configuration changes to the OpenWay Riva 500W ERT module until it is connected to the water meter register. ■ The FC300SR or Itron Mobile Radio are the only devices that support programming for the OpenWay Riva 500W ERT module. ■...
  • Page 19 McCrometer Data port/green Clock/red Gnd port/black Metron Farnier OER Green Black Mueller (Hersey) Green Black Translator Sensus Green Black iPERL SRII OMNI Neptune Black Green ProRead ProRead AutoDetect E-Coder ARB-V 08 January 2020 815-0006-01 Itron, Inc. Page 19 of 48...

  • Page 20: Pulser-Type Register Connections

    Caution: Itron recommends OpenWay Riva pit module connections be completed using the inline connector. In rare instances, if a spliced connection is made, the Itron splice kit must be used (Itron part number OEM-0034-002). For more information, see...

  • Page 21: Verifying Operation

    Itron Mobile Radio connected to a user-supplied computer or Bluetooth device ■ Caution: Verifying the OpenWay Riva 500W ERT Pit Module operation requires an FC300SR handheld computer or Itron Mobile Radio running FDM v4.0 or higher. Legacy Itron handheld programming devices cannot read the pit modules.

  • Page 22: Installing The Openway Riva 500W Ert Pit Module

    * Rod and wall mount installations require the Itron through-the-lid remote antenna. Important! The OpenWay Riva 500W ERT pit module is shipped with a protective cover over the connectors. The protective cover must be fully engaged over the connectors until the module is installed to protect the module's connectors from damage.

  • Page 23: Warning

    For 500W ERT pit boxes, the type of installation method is based on the location of the meter in the pit box and the lid material. Itron recommends mounting the pit module in pit boxes with in plastic lids (or other composite materials) for optimum network performance. Metal lids require a through-lid remote antenna and rod or wall mount accessory for optimal pit module radio performance.

  • Page 24: Pit Modules With Integral Connectors

    Itron security seal (Itron part number MSC-0018-001). Cable ties are not shipped with the pit module, but can be ordered from Itron. Use the protective cap (on the pit module side) in the field for up to one year.

  • Page 25: Installing The Module In The Pit Lid

    Template 4  Installing the OpenWay Riva 500W ERT Pit Module This section provides the instructions to install the pit module in a pit lid with a hole using the pit lid mounting bracket. Verify that you have the following items to complete the installation.
  • Page 26 Template 4  Installing the OpenWay Riva 500W ERT Pit Module 2. From the bottom side of the lid, screw on the threaded retainer clip collar until the beveled top rests against the pit lid. Note: Ensure that the beveled edge of the clip collar is toward the top of the pit lid.

  • Page 27: Rod Mount Installation

    For more information, see Pit module mounting accessories. OpenWay Riva 500W ERT Pit Modules can mount below the pit lid on a customer-supplied 1/2- inch diameter rod. A mounting rod is available from Itron. For more information, see Pit module mounting accessories or visit www.itron.com and reference the Water Products Ordering...
  • Page 28 Template 4  Installing the OpenWay Riva 500W ERT Pit Module require longer rod lengths to ensure that the pit module is well supported and remains vertical. 4. Without touching the meter body or adjacent pipes, position the rod as close to the center of the pit as possible.
  • Page 29 Template 4  Installing the OpenWay Riva 500W ERT Pit Module 6. The top of the rod must be 3-1/2 inches below the bottom of the lid. Place the Riva module on the rod. Completely insert the rod into the pit module's rod mount hole. Do not force the pit module onto the rod.

  • Page 30: Wall Mount Installation

    ■ Use inline connectors to connect the OpenWay Riva 500W ERT module to the register or meter. If a splice is required to connect the register or meter, you must use the Itron splice kit (OEM-0034-002). The pit module works accurately with Itron-approved cable type and lengths up to 300 feet.

  • Page 31: Installing The Module To The Pit Wall

    Template 4  Installing the OpenWay Riva 500W ERT Pit Module Installing the Module to the Pit Wall 1. Select a vertical, flat surface in the pit box. 2. Insert the rod/wall mounting bracket tab (1) into the module tab receptacle (2).

  • Page 32: Leak Sensor (Ols) Installation

    Installation of the OLS with a pit 500W ERT module requires the OLS with an inline connector (Itron part number LDS-1601-001). The OLS connects to the telemetry connector on the pit module. For pit module installation instructions, see the installation guide for your 500W ERT module.

  • Page 33: Optional Remote 500W Ert Disconnect Valve Installation

    Installing the Remote 500W ERT Disconnect Valve The remote 500W ERT disconnect valve ships from the supplier with the Itron cable installed. See the manufacturer's installation instructions for the procedure to mount the disconnect valve in the pipe close to the pit module.
  • Page 34 Template 4  Installing the OpenWay Riva 500W ERT Pit Module 1. Remove the protective plastic cover from the module's connector ports. 2. Remove the environmental cap from the pit module's telemetry connector (blue). 3. Verify that the connectors are clean and dry.
  • Page 35 Template 4  Installing the OpenWay Riva 500W ERT Pit Module 1. Black register connection 2. Red optional antenna connection 3. Blue telemetry device connection 4. Align the disconnect valve connector with the pit module's blue telemetry connector. 5. Push the valve connector into the pit module's connector.

  • Page 36: Optional Through-The-Lid Remote Antenna Installation

    Template 4  Installing the OpenWay Riva 500W ERT Pit Module 6. Rotate the connector locking ring until the security holes align. Caution: Do not force the connector ends together. While you hold the disconnect valve's connector, engage the pit module's connector by rotating the locking ring until both connectors are securely connected.

  • Page 37: Innovation, Science And Economic Development Canada (Ised) Conformity

    Template 4  Installing the OpenWay Riva 500W ERT Pit Module Specifications Part number CFG-0900-003 Gain 2 dBi Horizontal beamwidth Omni-directional Impedance 50 ohms Termination Proprietary Innovation, Science and Economic Development Canada (ISED) Conformity The radio transmitter (IC:864D-RIVAWA) has Le présent émetteur radio (IC: 864D-RIVAWA) a been approved by Innovation, Science and été...

  • Page 38: Installing

    Template 4  Installing the OpenWay Riva 500W ERT Pit Module Caution: Remove cable or twist ties from the antenna cable to prevent damage to the pit module or antenna. Installing 1. Thread the remote antenna connector and cable through the pit lid hole. Verify that the antenna's convex surface is on the top of the pit lid.

  • Page 39: Connecting

    Template 4  Installing the OpenWay Riva 500W ERT Pit Module 3. Turn the threaded collar until it is tight against bottom of the pit lid. Connecting 1. Align the connector pins with the middle red connector on the pit module.

  • Page 40: Using The Itron Cable Armor

    U sing the Itron Cable Armor This section describes the procedure for installing Itron cable armor in a field installation. The Itron cable armor provides a layer or protection for the module's cable jacket. Itron cable armor is available in five-foot sections.
  • Page 41 Template 5  Using the Itron Cable Armor 4. Beginning over the installed electrical tape, twist the Itron cable armor onto the pit module cable using a right-handed twist. Important! You must twist—not wrap—the cable armor onto the pit module cable. Wrapping the cable armor can cause the stainless steel jacket to warp. You must begin twisting the cable armor over portion of the cable protected by the electrical tape.
  • Page 42 Template 5  Using the Itron Cable Armor 6. Remove any leftover materials from the customer premises. Discard or recycle leftover materials. 08 January 2020 815-0006-01 Itron, Inc. Page 42 of 48...

  • Page 43: Connecting The Inline Connector

    3. Connect the register cable to the pit module connector. – Align the connectors. – Push until snug. – Twist the register cable's black coupling nut to align the two tabs. 08 January 2020 815-0006-01 Itron, Inc. Page 43 of 48...
  • Page 44 OLS or optional remote antenna Caution: Shield connectors with protective environmental caps (for more information, see Pit module mounting accessories). Do not leave an exposed connector in the field. 08 January 2020 815-0006-01 Itron, Inc. Page 44 of 48...

  • Page 45: Completing Gel-Cap Connections Using The Itron Splice Kit

    E-9R 3M® gel connector crimping tool (or other 3M approved crimping tool) ■ Itron splice kit (part number OEM-0034-002) 1. Push two wires as far as possible into the connector. Caution: Do not strip insulation from the ends of the wires before inserting them into the connector.
  • Page 46 The sealant may cause minor eye and skin irritation. Avoid eye contact. Avoid prolonged or repeated skin contact. Contact Itron Support for Safety Data Sheets (SDS). 5. After the 500W ERT module to register or meter wire connections are completed, arrange the connectors in a single file.
  • Page 47 Template 7  Completing Gel-cap Connections Using the Itron Splice Kit 6. Insert the connectors and wires into the splice tube until the connectors and wires are completely immersed in the non-conductive gel material. 7. Separate the cable wires to the sides and close the splice tube cover.

  • Page 48: Troubleshooting

    Note: Hard-to-read mode will reduce battery life. The handheld programmer is locked up and Soft boot the handheld. Reference the button presses produce no response. documentation for your programming device. For more information, see Related Documents. 08 January 2020 815-0006-01 Itron, Inc. Page 48 of 48...
