Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.

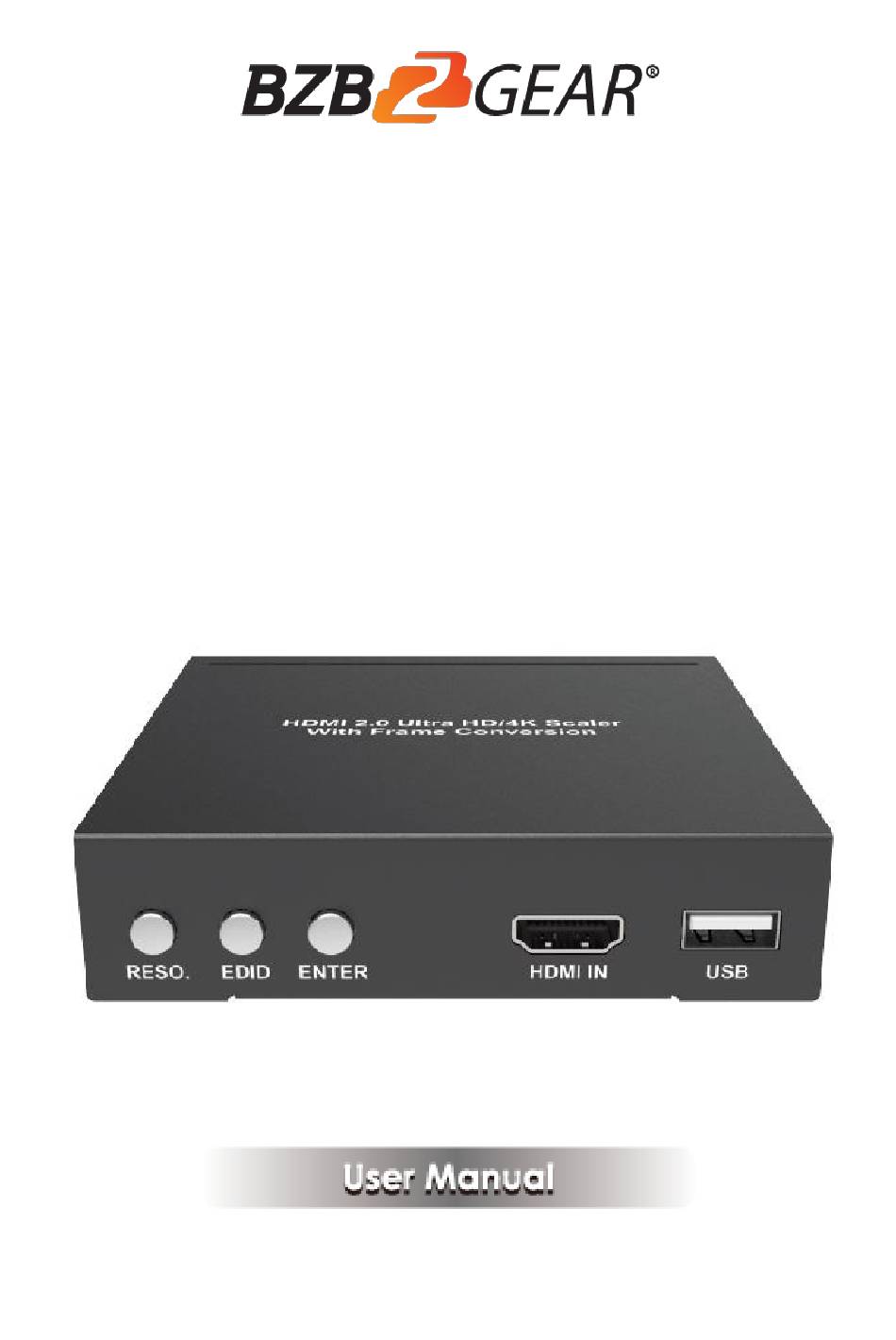

1. Introduction The BZ-HDMI4K-SC is a high-performance HDMI 2.0, HDCP 2.2 compliant scaler capable of upscale and downscale among Ultra HD/4K, Full HD, and HD resolutions with frame converting support. It accepts wide range of resolutions from 480i up to 4K@60Hz4:4:4 and output resolutions up to 4K@60Hz4:4:4 with digital and analog audio extraction.
3. Package Contents ① 1× HDMI 4K Ultra HD Scaler ② 1× 12V/1A Power Adapter ③ 1× Phoenix connector ④ 1× User Manual 4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 1.4 and HDCP 2.2 Video Bandwidth 18 Gbps Video Resolutions Ultra HD/4K up to 4096 x 2160 @50/60Hz Color Depth...
Page 5
Color Black Dimensions 115mm(W)×100mm(D)×25mm(H) Weight 450g Power Supply Input: AC100~240V 50/60Hz, Output: DC 12V/1A (US/EU standards,CE/FCC/UL certified) Power Consumption 8W (max) Operating 0°C ~ 40°C / 32°F ~ 104°F Temperature Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F Relative Humidity 20~90% RH (non-condensing) * Supported Input Resolution List 640x480@60Hz...
5. Operation Controls and Functions ☆ Front Panel Number Name Function description RESOLUTION Output resolution list menu. Press the button to switch output resolution. Long press for 5 seconds output resolution will be set to 720p@60Hz. EDID Press the button to change EDID value. Long press for 5 seconds, the scaler will back to factory default setting.
Page 7
☆ Rear Panel Number Name Function description HDMI OUTPUT HDMI output port OPTICAL OUTPUT OPTICAL digital audio output port AUDIO OUTPUT 3.5mm analog audio output port RS-232 RS-232 control port DC 12V DV 12V power supply unit input connector POWER LED System power indicator...
7. Software update process The scaler supports software updates via USB flash disk. The procedure is as follows: 1) Copy the file “MERGE.bin” to the root directory of a USB flash disk. (Make sure the file is copied to the root directory. The “MERGE.bin” file is provided/ authorized by our engineering department or from our website) 2) Plug the USB flash disk to the scaler USB port on its rear panel.
BZB Gear catalog. You’ll notice comparably lower prices with BZB Gear solutions, but the quality of the products is on par with the top brands in the industry. The unparalleled support from our team is our way of showing we care for every one of our customers.
9. Warranty Information BZB Gear | Second Year Assurance BZB Gear wants to assure you peace of mind. We're so confident in the quality of our products that along with the manufacturer's one-year limited warranty, we are offering free second-year warranty coverage upon registration*.
