- Page 1 BZB-DA-14 1X4 4K 18Gbps UHD HDMI Splitter with HDMI 2.0b, HDCP 2.2, HDR & 3D Support User Manual...
- Page 2 BZBGEAR BZB-DA-14 PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BZB-DA-14 PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions Application Example Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906... -
Page 4: Statement
BZBGEAR BZB-DA-14 PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● Unpack the equipment carefully and save the original box and packing material for possible future shipment. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BZB-DA-14 1x4 Splitter is an advanced solution for splitting a single HDMI signal to 4 HDMI displays. It provides high performance audio and video output through HDMI cables up to 4K2K@60Hz 4:4:4 and is capable of receiving and transmitting up to 18Gbps of bandwidth with no data loss. -
Page 6: Specifications
BZBGEAR BZB-DA-14 PRODUCT MANUAL Specifications Technical Video Bandwidth 600MHz/18Gbps Input Ports 1xHDMI Type A [19-pin female] Output Ports 4xHDMI Type A [19-pin female] Output Resolution 480i ~ 1080p@50/60, 4Kx2K@24/30, 4k2k@60Hz ESD Protection Human Body model: ±8kV (Air-gap discharge), ±4kV (Contact discharge) -
Page 7: Operation Controls And Functions

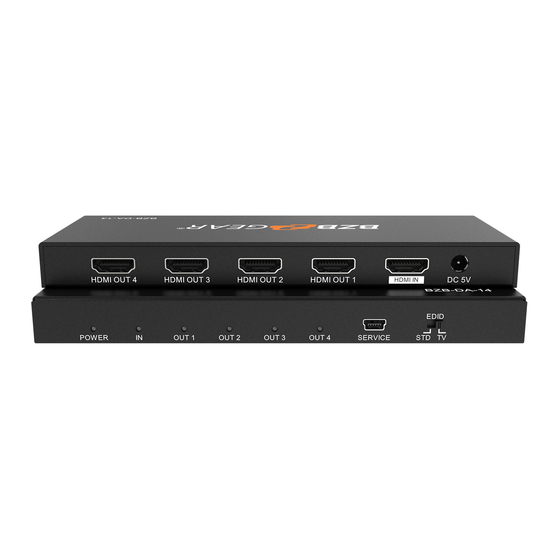

BZBGEAR BZB-DA-14 PRODUCT MANUAL Operation Controls and Functions Front Panel 1. POWER LED: This blue LED illuminates when the device is connected to the power supply. 2. IN LED: LED illuminates blue when a source is connected to the device. -
Page 8: Application Example
BZBGEAR BZB-DA-14 PRODUCT MANUAL Application Example The following diagram illustrates the typical input and output connection of the splitter: · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 9: Tech Support
BZBGEAR BZB-DA-14 PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. -
Page 10: Warranty
BZBGEAR BZB-DA-14 PRODUCT MANUAL Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. -
Page 11: Mission Statement
BZBGEAR BZB-DA-14 PRODUCT MANUAL Mission Statement BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment ranging from AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. -
Page 12: Copyright
BZBGEAR BZB-DA-14 PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
